D-Link DSR-150 [107/274] Export web filter

Unified Services Router User Manual

105

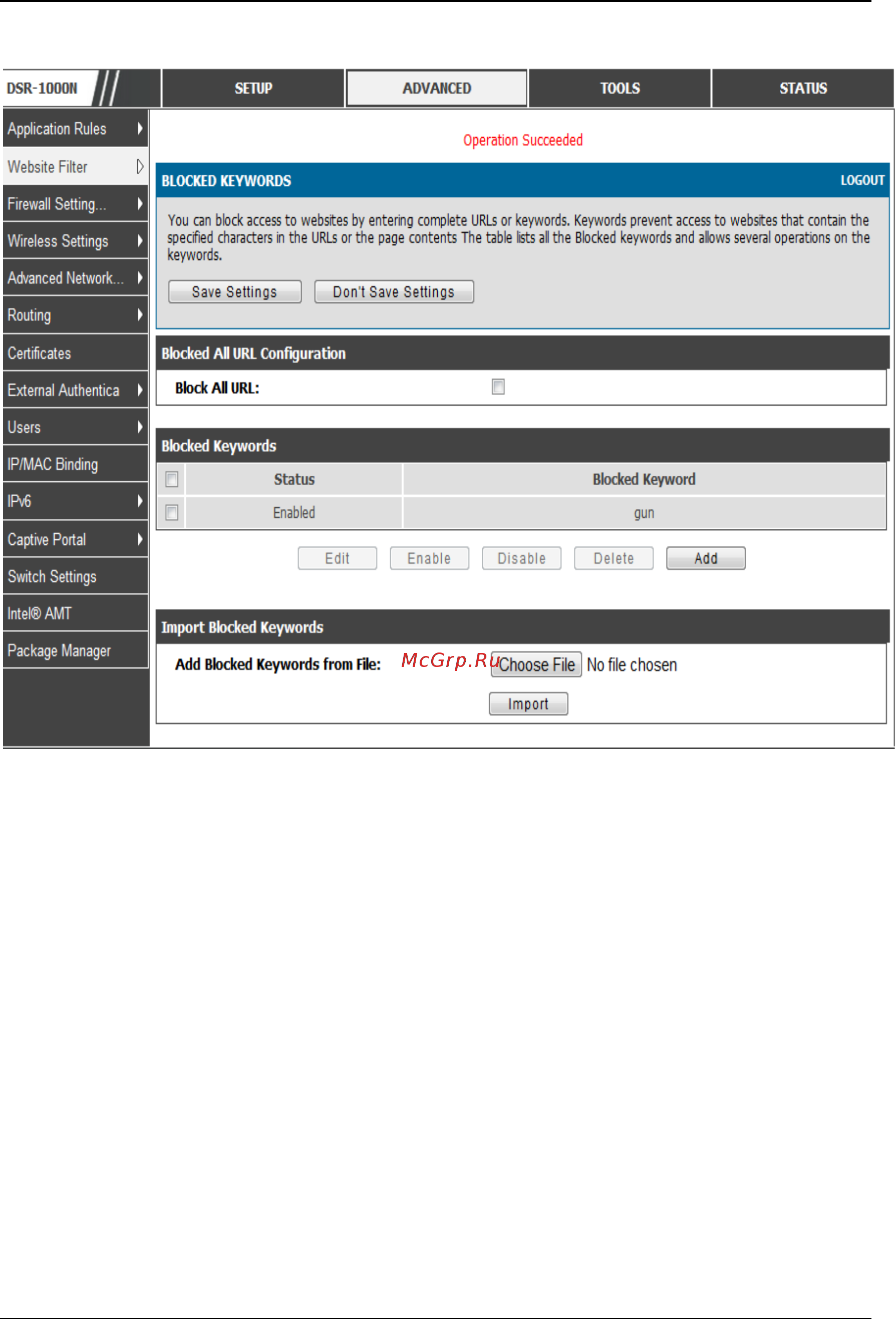

Figure 68: One keyword added to the block list

5.9.4 Export Web Filter

Advanced > Website Filter > Export

Export Approved URLs: Feature enables the user to export the URLs to be allowed to

a csv file which can then be downloaded to the local host. The user has to click the

export button to get the csv file.

Export Blocked Keywords: This feature enables the user to export the keywords to be

blocked to a csv file which can then be downloaded to the local host. The user has to

click the export button to get the csv file.
