D-Link DSR-150 [42/274] Russia dual access pppoe

Unified Services Router User Manual

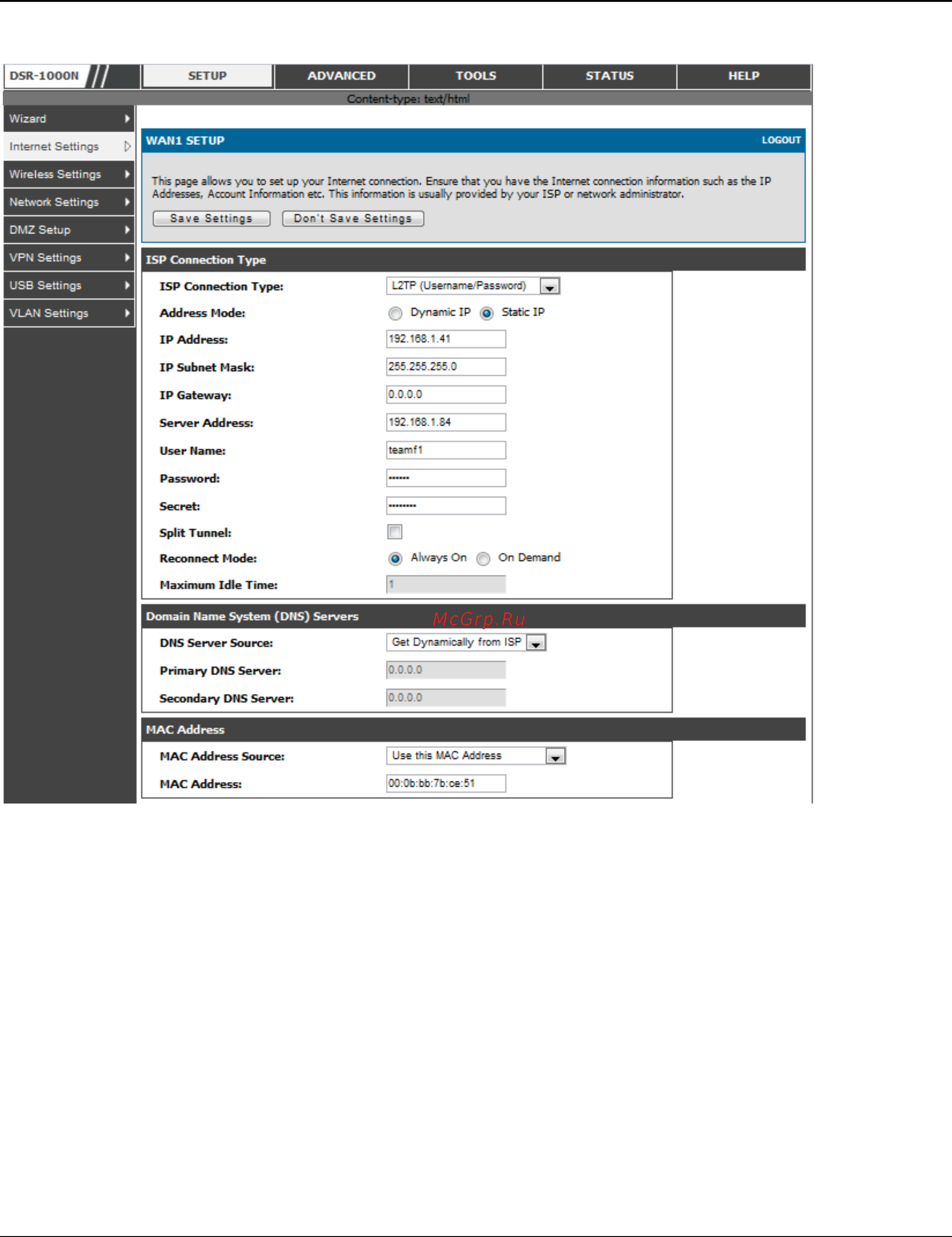

Figure 22: Russia L2TP ISP configuration

3.2.6 Russia Dual Access PPPoE

For Russia dual access PPPoE connections, you can choose the address mode of the connection to

get an IP address from the ISP or configure a static IP address provided by the ISP.
