D-Link DSR-150 [181/274] Trace route

Unified Services Router User Manual

179

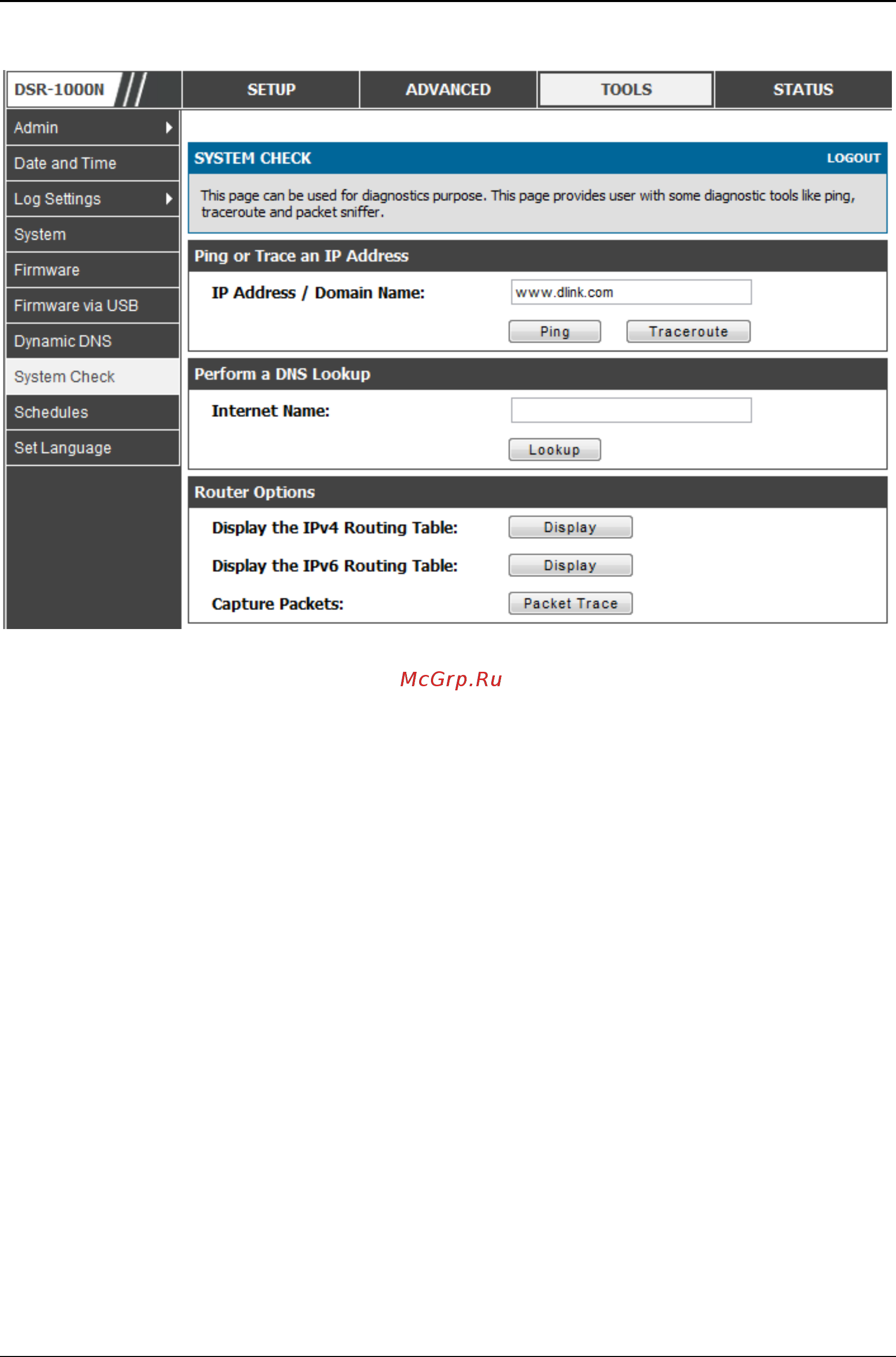

Figure 128: Router diagnostics tools available in the GUI

9.9.1 Ping

This utility can be used to test connectivity between this router and another device

on the network connected to this router. Enter an IP address and click PING. The

command output will appear indicating the ICMP echo request status.

9.9.2 Trace Route

This utility will display all the routers present between the destination IP address

and this router. Up to 30 ―hops‖ (intermediate routers) between this router and the

destination will be displayed.
