D-Link DSR-150 [183/274] Localization

Unified Services Router User Manual

181

9.10 Localization

Tools > Set Language

The router shows the English language by default.The package manager feature has to

be enabled so that the appropriate language of the installed language package is

shown.The user must configure the package manager feature under Advanced settings

first,in order to install a language package.

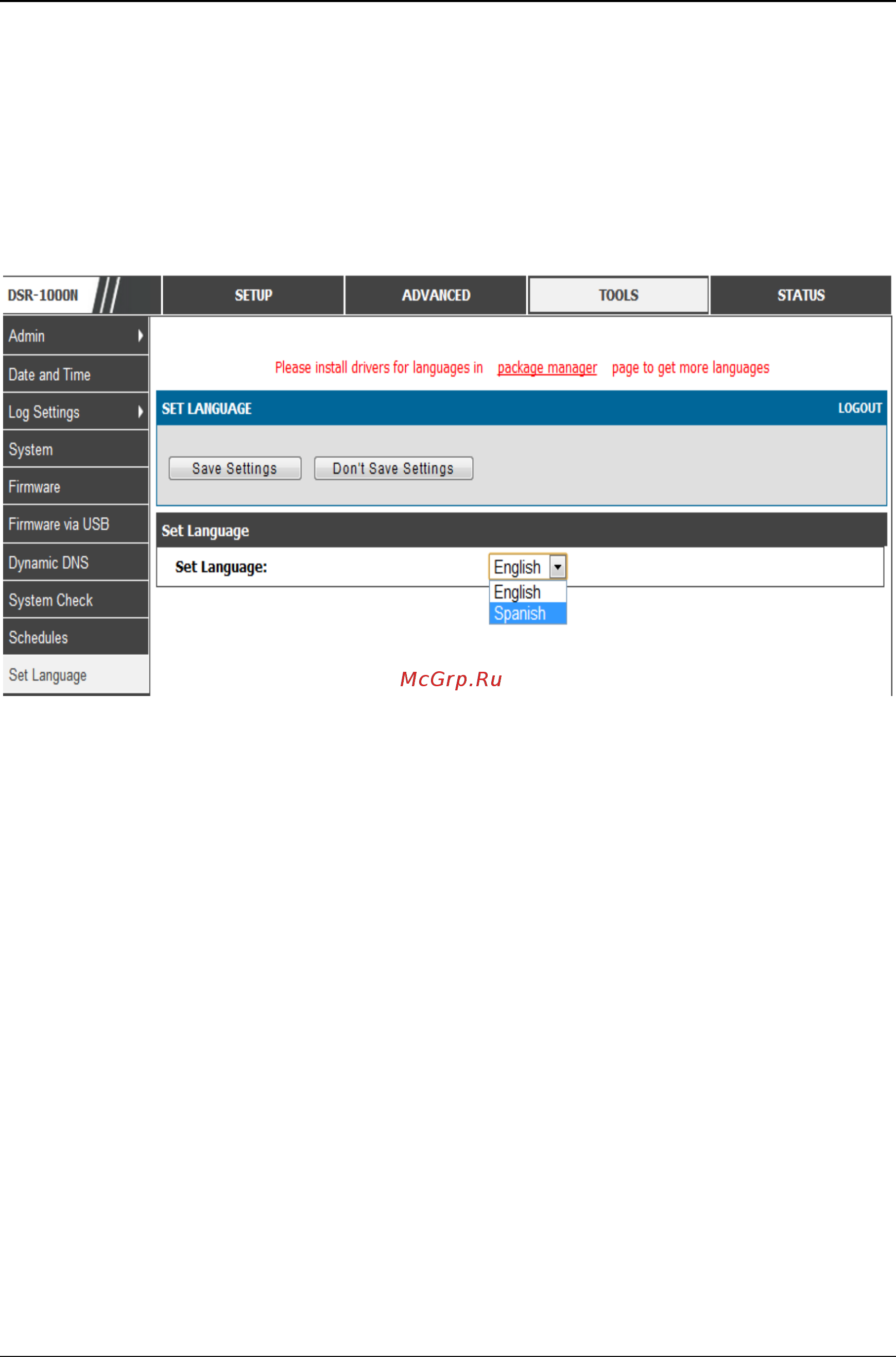

Figure 130: Localization
