Unified Services Router User Manual

163

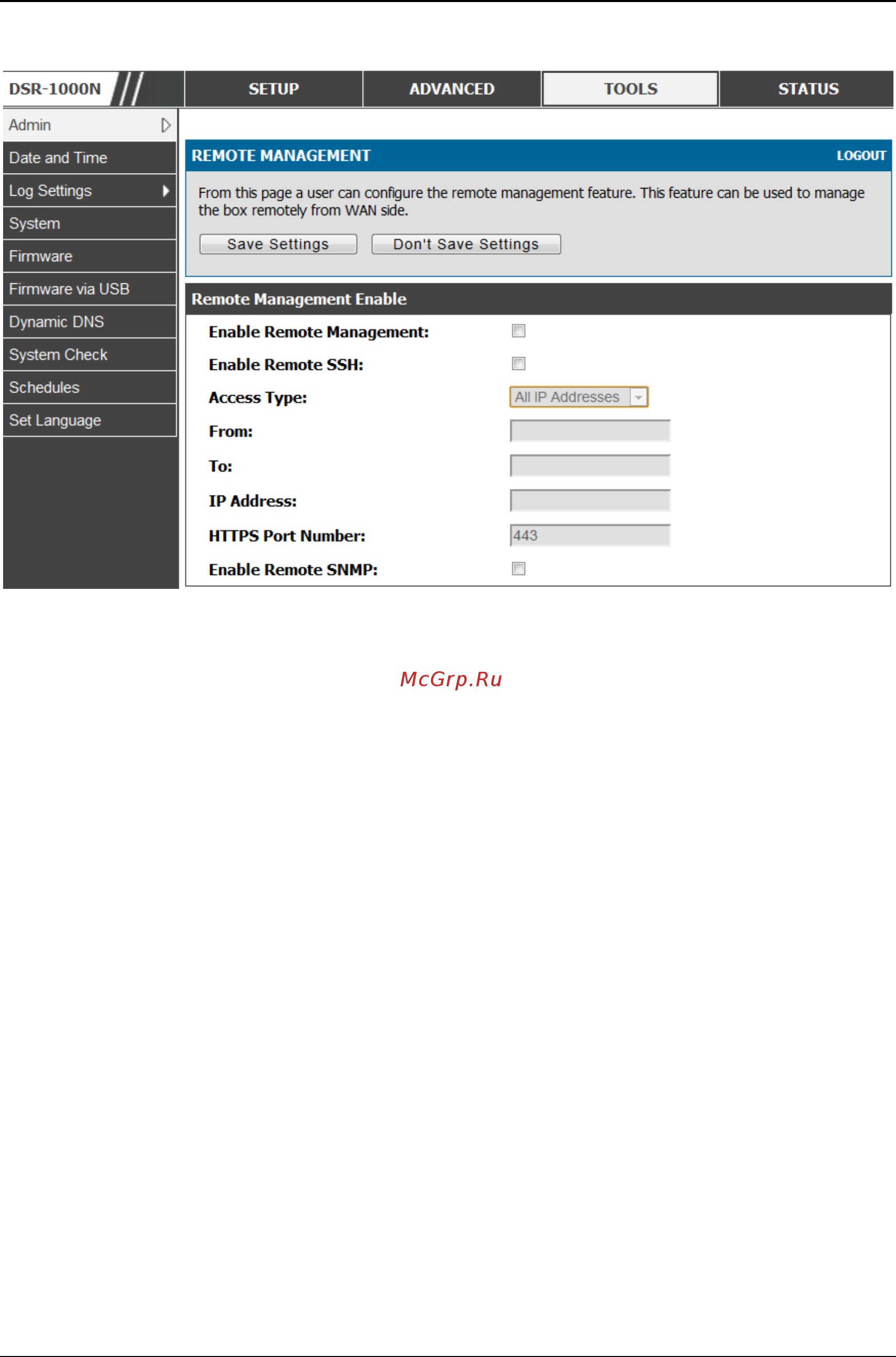

Figure 114: Remote Management from the WAN

9.1.3 CLI Access

In addition to the web-based GUI, the gateway supports SSH and Telnet

management for command-line interaction. The CLI login credentials are shared

with the GUI for administrator users. To access the CLI, type ―cli‖ in the SSH or

console prompt and login with administrator user credentials.

9.2 SNMP Configuration

Tools > Admin > SNMP

SNMP is an additional management tool that is useful when multiple routers in a

network are being managed by a central Master system. When an external SNMP

manager is provided with this router‘s Management Information Base (MIB) file, the

manager can update the router‘s hierarchal variables to view or update configuration

parameters. The router as a managed device has an SNMP agent that allows the MIB

configuration variables to be accessed by the Master (the SNMP manager). The

Access Control List on the router identifies managers in the network that have read-

only or read-write SNMP credentials. The Traps List outlines the port over which

notifications from this router are provided to the SNMP community (managers) and

also the SNMP version (v1, v2c, v3) for the trap.
