D-Link DSR-150 [28/274] Figure 10 multiple vlan subnets

Unified Services Router User Manual

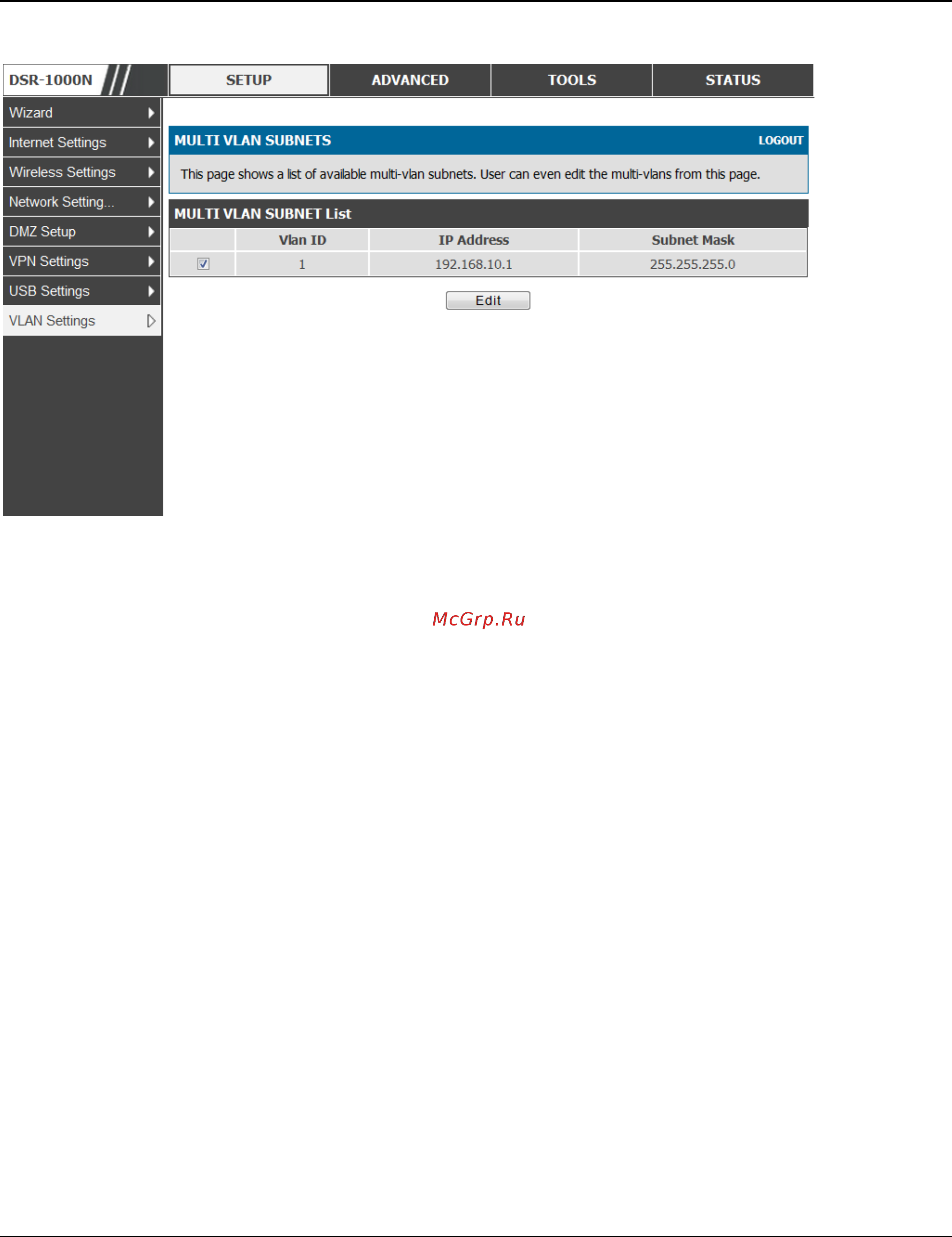

Figure 10: Multiple VLAN Subnets

2.2.3 VLAN configuration

Setup > VLAN Settings > VLANconfiguration

This page allows enabling or disabling the VLAN function on the router. Virtual LANs can be

created in this router to provide segmentation capabilities for firewall rules and VPN policies. The

LAN network is considered the default VLAN. Check the Enable VLAN box to add VLAN

functionality to the LAN.
