D-Link DSR-150 [108/274] Ip mac binding

Unified Services Router User Manual

106

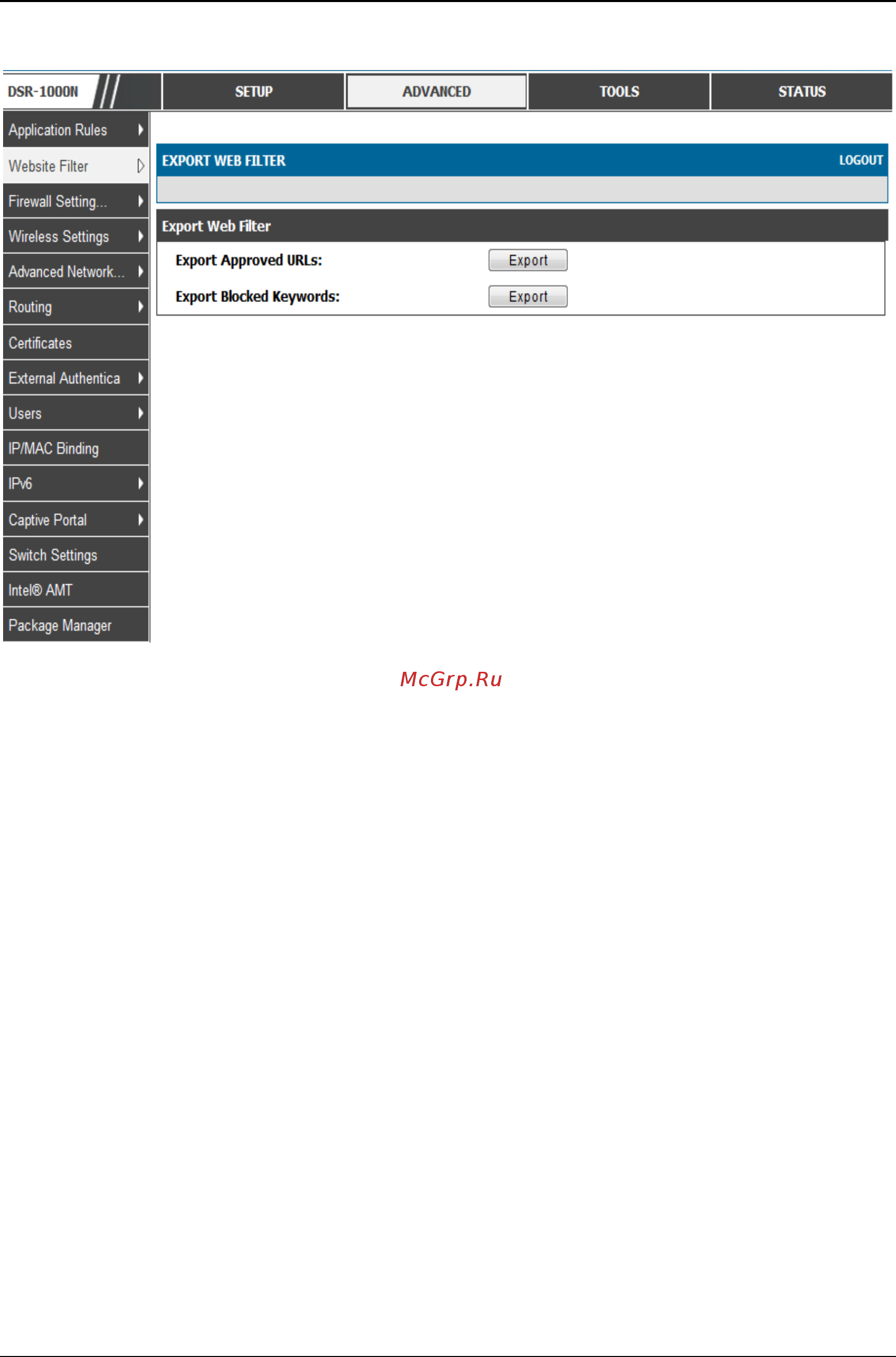

Figure 69: Export Approved URL list

5.10 IP/MAC Binding

Advanced > IP/MAC Binding

Another available security measure is to only allow outbound traffic (from the LAN to

WAN) when the LAN node has an IP address matching the MAC address bound to it.

This is IP/MAC Binding, and by enforcing the gateway to validate the source traffic‘s

IP address with the unique MAC Address of the configured LAN node, the

administrator can ensure traffic from that IP address is not spoofed. In the event of a

violation (i.e. the traffic‘s source IP address doesn‘t match up with the expected MAC

address having the same IP address) the packets will be dropped and can be logged for

diagnosis.
