Unified Services Router User Manual

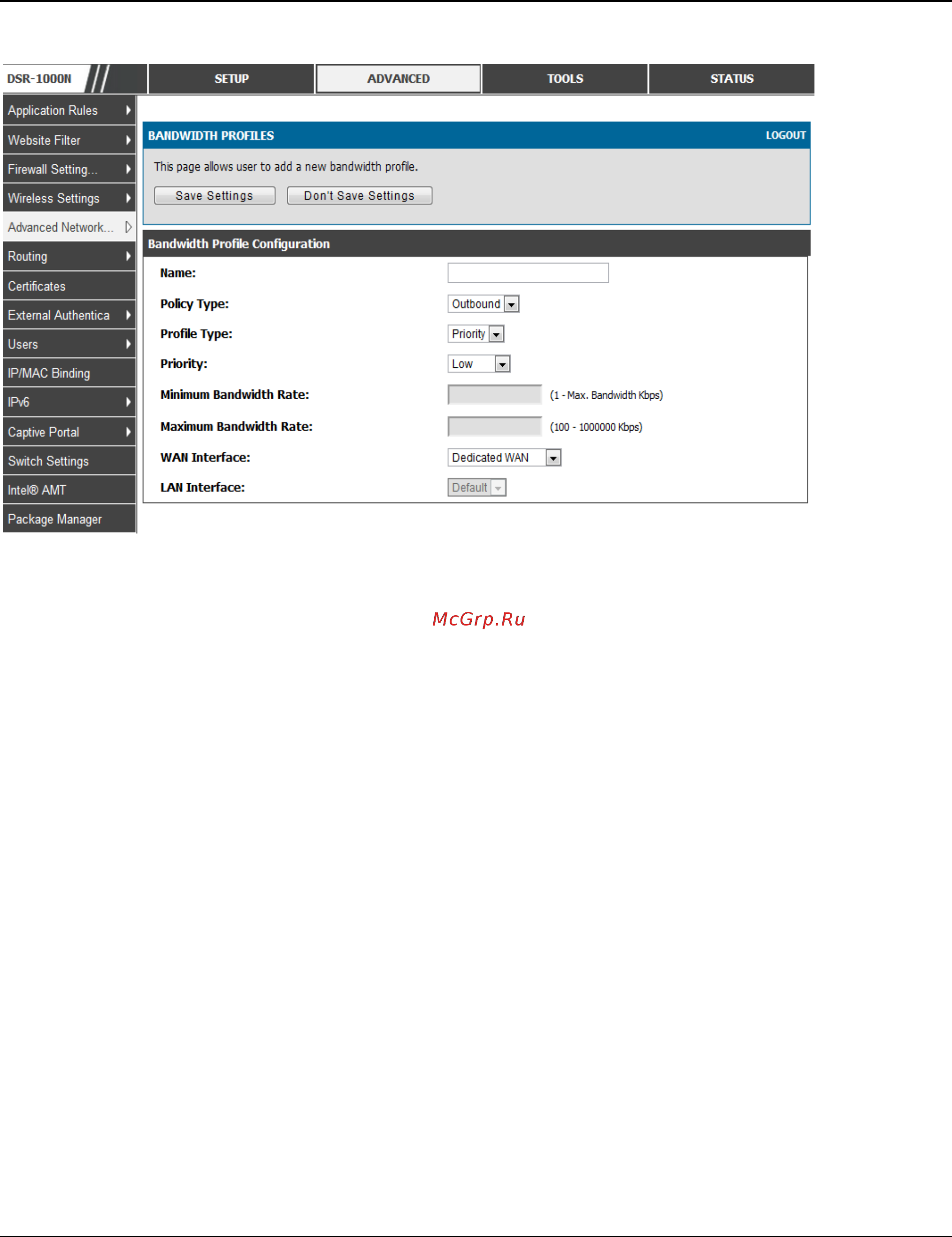

Figure 27: Bandwidth Profile Configuration page

Advanced > Advanced Network > Traffic Management > Traffic Selectors

Once a profile has been created it can then be associated with a traffic flow from the LAN to WAN.

To create a traffic selector, click Add on the Traffic Selectors page. Traffic selector configuration

binds a bandwidth profile to a type or source of LAN traffic with the following settings:

 Available profiles: Assign one of the defined bandwidth profiles

 Service: You can have the selected bandwidth regulation apply to a specific service (i.e. FTP)

from the LAN. If you do not see a service that you want, you can configure a custom service

through the Advanced > Firewall Settings > Custom Services page. To have the profile

apply to all services, select ANY.

 Traffic Selector Match Type: this defines the parameter to filter against when applying the

bandwidth profile. A specific machine on the LAN can be identified via IP address or MAC

address, or the profile can apply to a LAN port or VLAN group. As well a wireless network can

be selected by its BSSID for bandwidth shaping.
