D-Link DSR-150 [34/274] Figure 15 captive portal setup

Unified Services Router User Manual

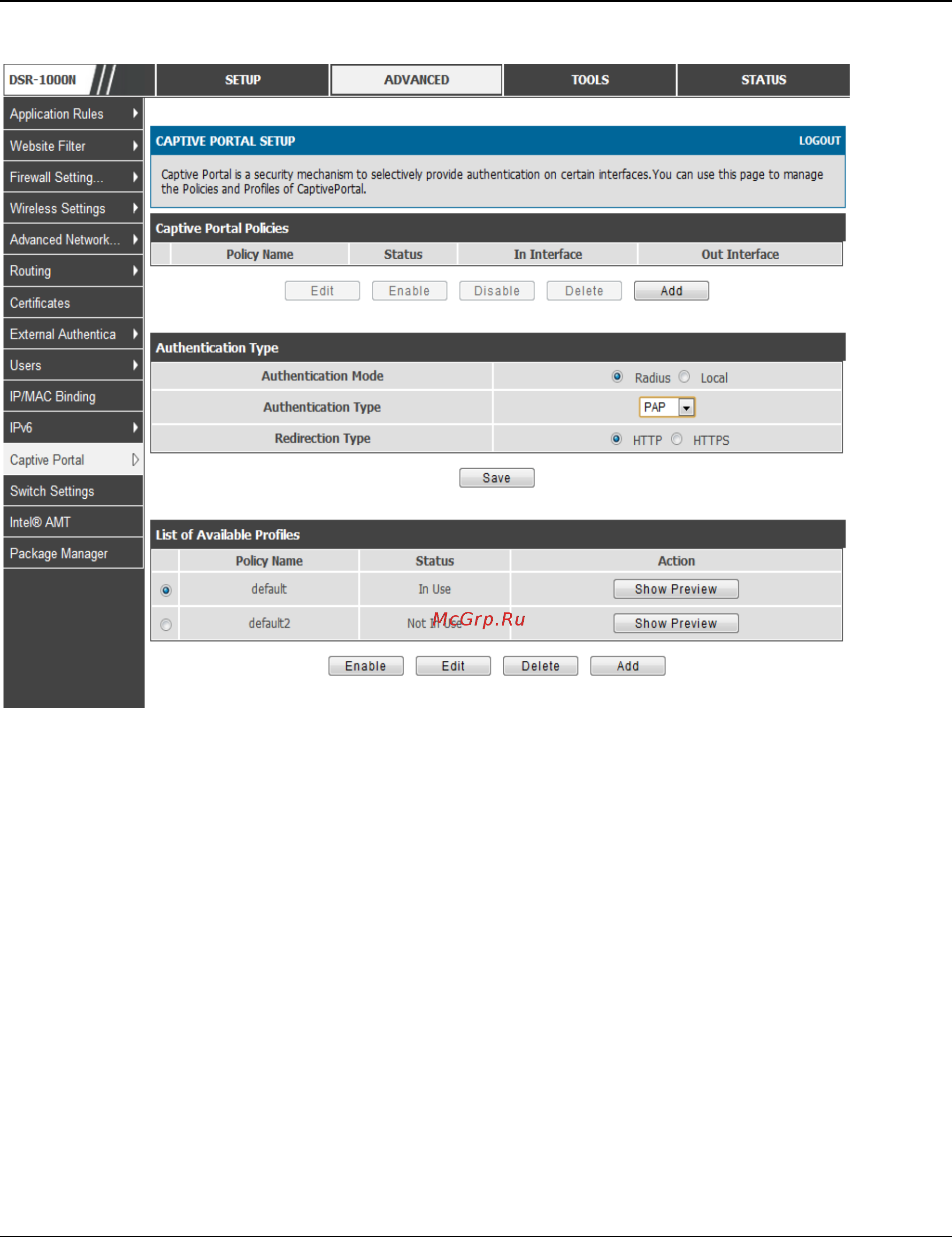

Figure 15: Captive Portal Setup

Captive Portal Policies: The List of Available CaptivePortal Policies are shown in this table.

Authentication Type: This allows in choosing the authentication mode, type and redirection type.

List of Available Profiles: Any one of these profiles can be used for Captive Portal Login page

while enabling Captive Portal.
