Unified Services Router User Manual
28

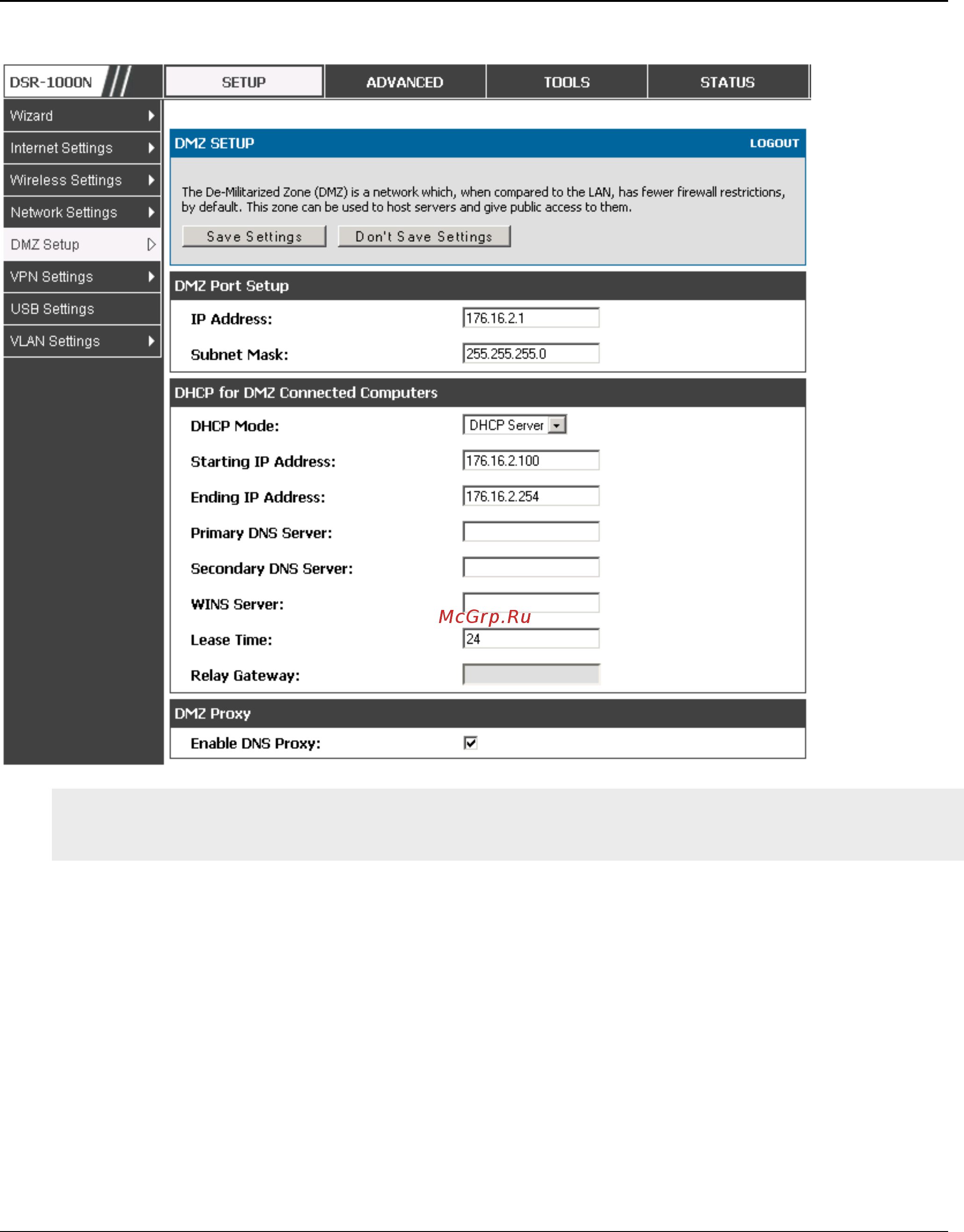

Figure 12: DMZ configuration
In order to configure a DMZ port, the router‘s configurable port must be set to DMZ in the Setup >
Internet Settings > Configurable Port page.
2.4 Universal Plug and Play (UPnP)
Advanced > Advanced Network > UPnP
Universal Plug and Play (UPnP) is a feature that allows the router to discovery devices on the network
that can communicate with the router and allow for auto configuration. If a network device is detected
by UPnP, the router can open internal or external ports for the traffic protocol required by tha t
network device.
Once UPnP is enabled, you can configure the router to detect UPnP -supporting devices on the LAN
(or a configured VLAN). If disabled, the router will not allow for automatic device configuration.
Configure the following settings to use UPnP:
