D-Link DSR-150 [180/274] Using diagnostic tools

Unified Services Router User Manual

178

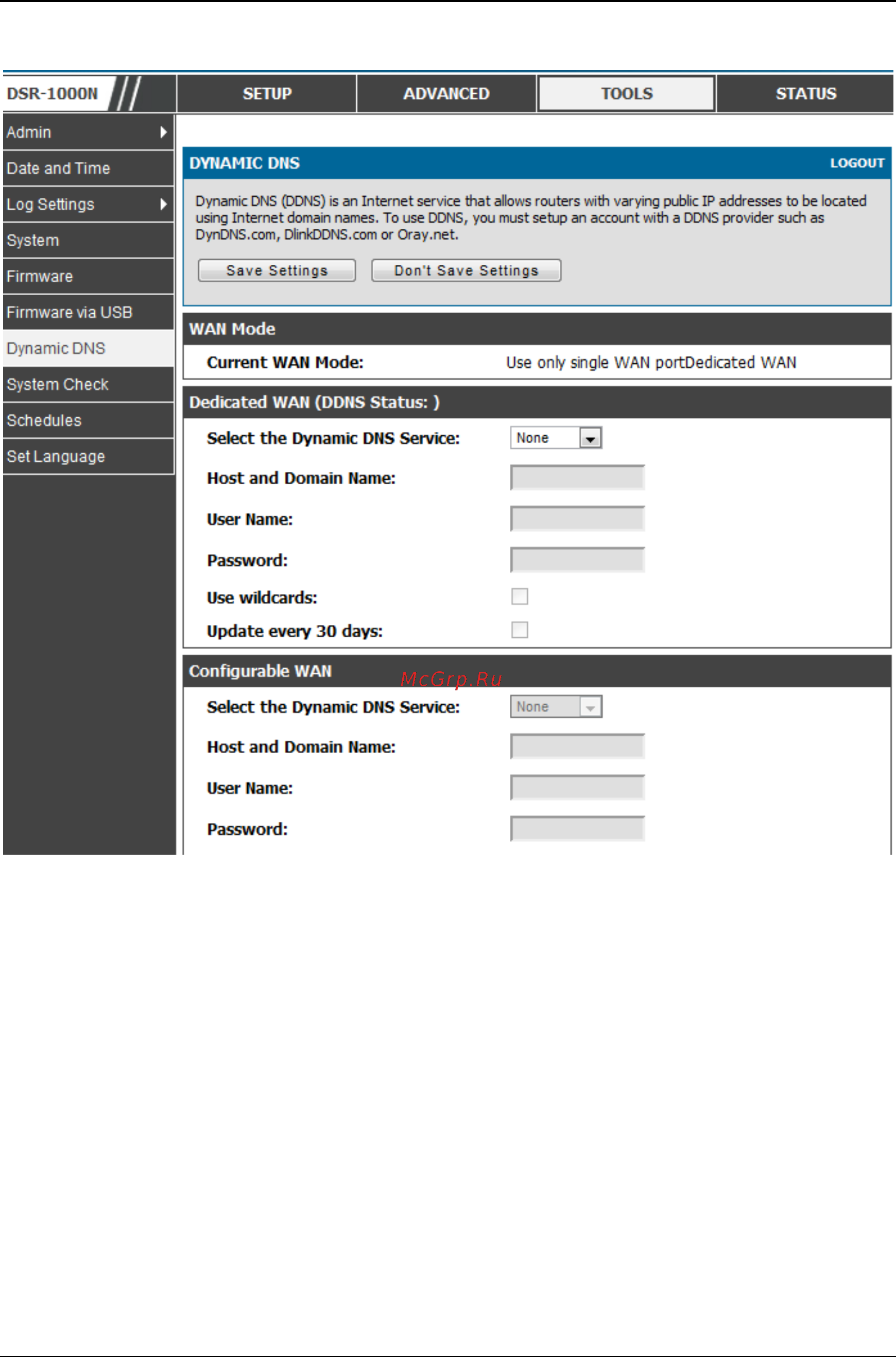

Figure 127: Dynamic DNS configuration

9.9 Using Diagnostic Tools

Tools > System Check

The router has built in tools to allow an administrator to evaluate the communication

status and overall network health.
