Unified Services Router User Manual

2.5 Captive Portal

 DSR-150/150N/250/250N does not have support for the Captive Portal feature.

LAN users can gain internet access via web portal authentication with the DSR. Also referred to as

Run-Time Authentication, a Captive Portal is ideal for a web café scenario where users initiate

HTTP connection requests for web access but are not interested in accessing any LAN services.

Firewall policies underneath will define which users require authentication for HTTP access, and

when a matching user request is made the DSR will intercept the request and prompt for a username

/ password. The login credentials are compared against the RunTimeAuth users in user database

prior to granting HTTP access.

 Captive Portal is available for LAN users only and not for DMZ hosts.

Advanced > Captive Portal >Captive Portal Sessions

The Active Runtime internet sessions through the router‘s firewall are listed in the below table.

These users are present in the local or external user database and have had their login credentials

approved for internet access. A ‗Disconnect‘ button allows the DSR admin to selectively drop an

authenticated user.

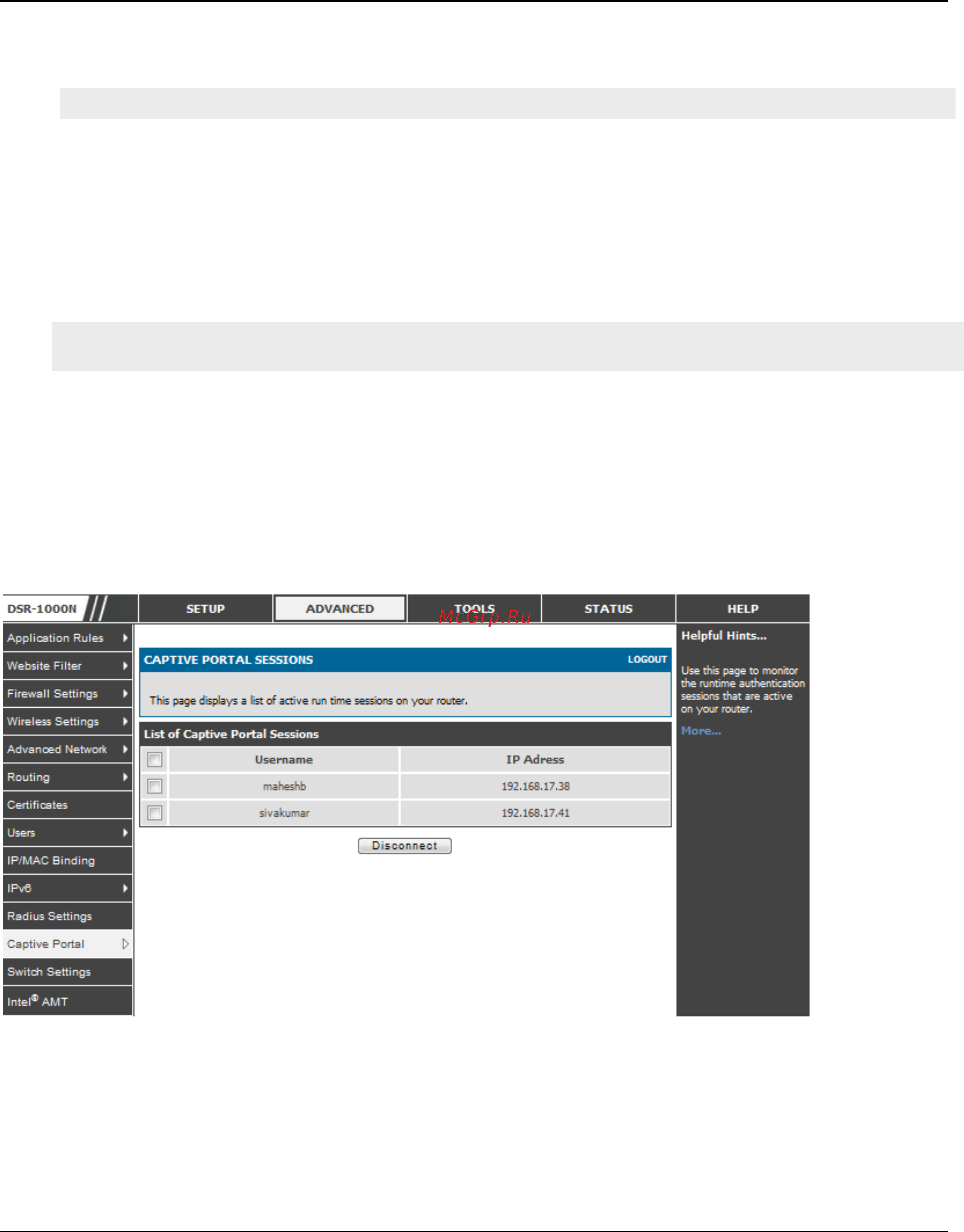

Figure 14: Active Runtime sessions

2.6 Captive portal setup

Advanced > Captive Portal >Captive Portal Setup

Captive Portal is a security mechanism to selectively provide authentication on certain interfaces.

This page allows to manage the Policies and Profiles of CaptivePortal.
