D-Link DSR-150 [35/274] Figure 16 customized captive portal setup

Unified Services Router User Manual

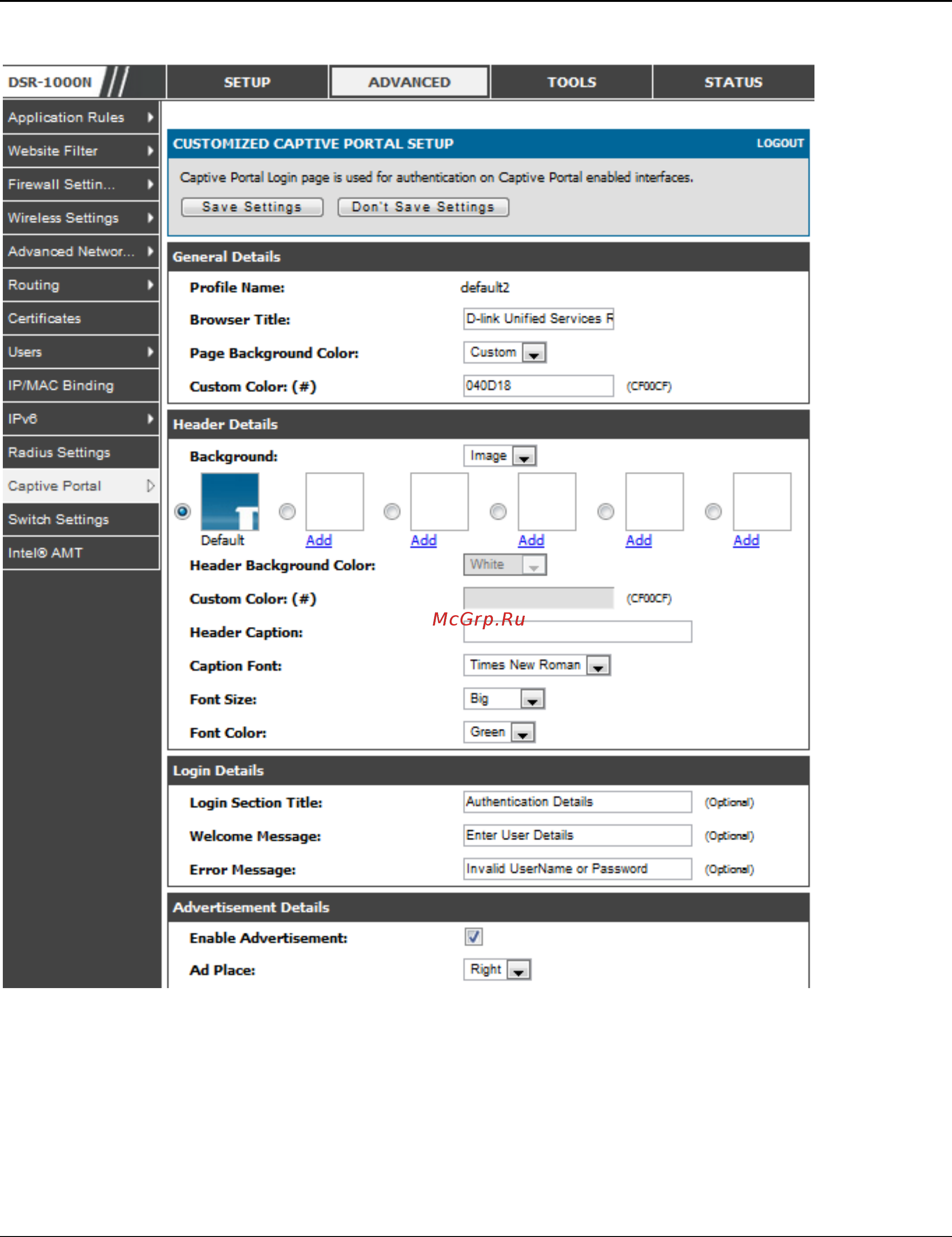

Figure 16: Customized Captive Portal Setup

Click ―Add‖ in the Captive Portal setup page to allow defining customized captive portal login page

information (Page Background Color, Header Details, Header Caption, Login Section Details,

Advertisement Details, Footer Details and Captive Portal Header Image).
