D-Link DSR-150 [79/274] Wireless distribution system wds

Unified Services Router User Manual

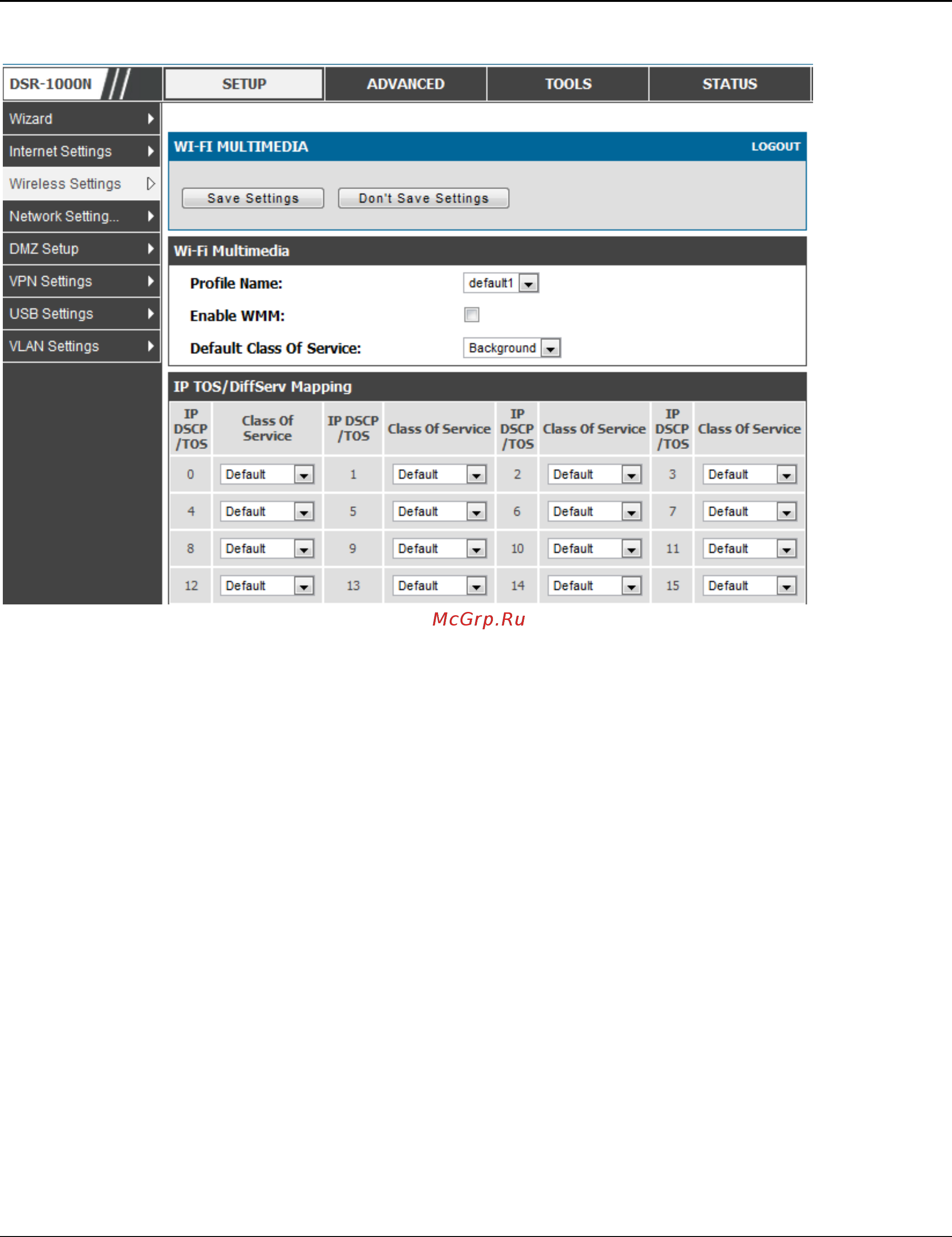

Figure 50: Wi-Fi Multimedia

Profile Name:

This field allows you to select the available profiles in wireless settings.

Enable WMM:

This field allows you to enable WMM to improve multimedia transmission.

Default Class Of Service:

This field allows you to select the available Access Categories (voice, video, best effort, and

background).

4.6 Wireless distribution system (WDS)

Setup > Wireless Settings > WDS

Wireless distribution system is a system enabling the wireless interconnection of access points in a

network. This feature is only guaranteed to work only between device s of the same type.
