Unified Services Router User Manual
191
10.3.2 Wireless Clients
Status > Wireless Clients
The clients connected to a particular AP can be viewed on this page. Connected
clients are sorted by the MAC address and indicate the security parame ters used by
the wireless link, as well as the time connected to the corresponding AP.
The statistics table has auto-refresh control which allows display of the most current
port level data at each page refresh. The default auto-refresh for this page is 10
seconds.

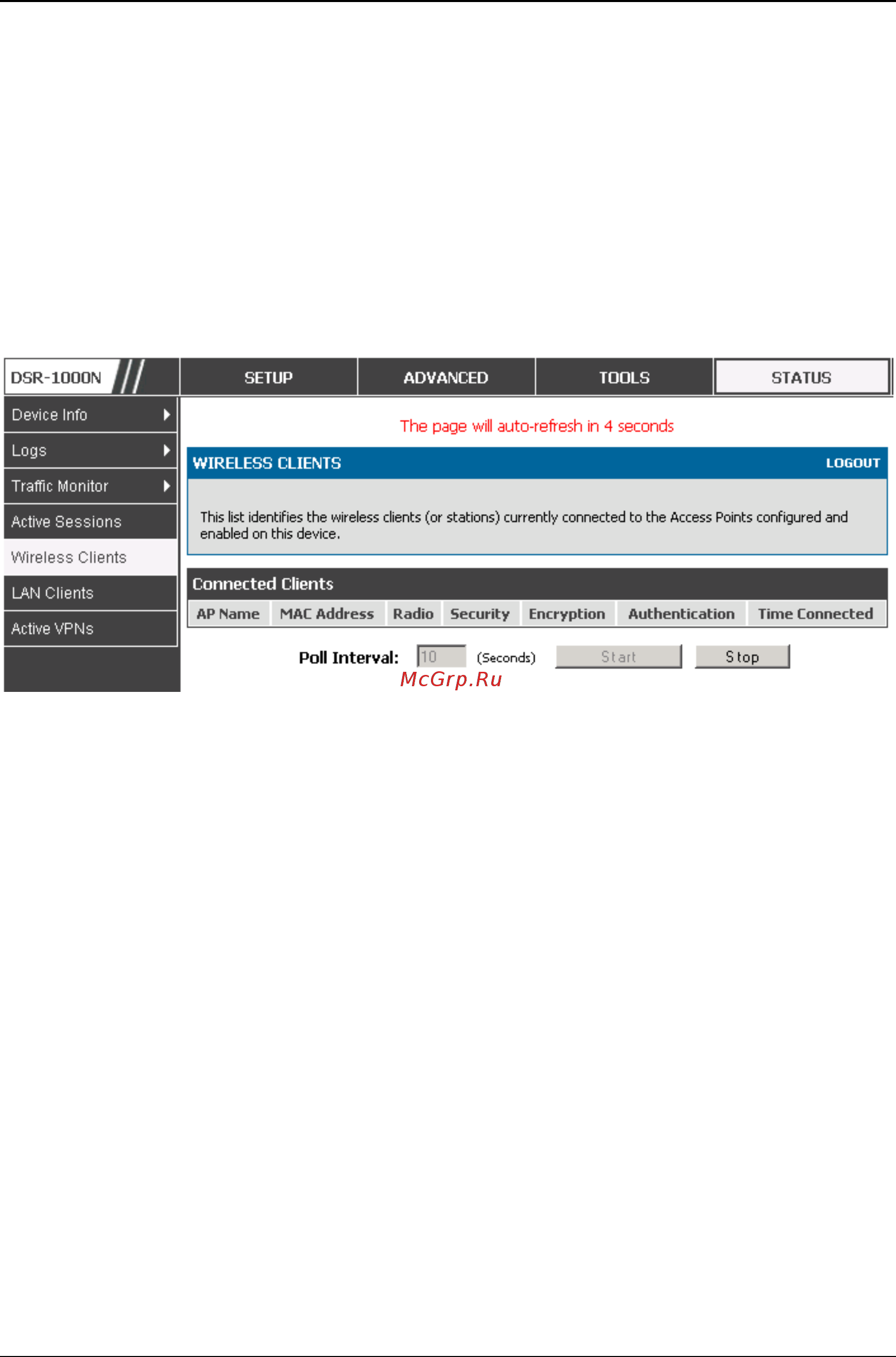

Figure 139: List of connected 802.11 clients per AP
10.3.3 LAN Clients
Status > LAN Clients
The LAN clients to the router are identified by an ARP scan through the LAN
switch. The NetBios name (if available), IP address and MAC address of discovered
LAN hosts are displayed.
