Unified Services Router User Manual

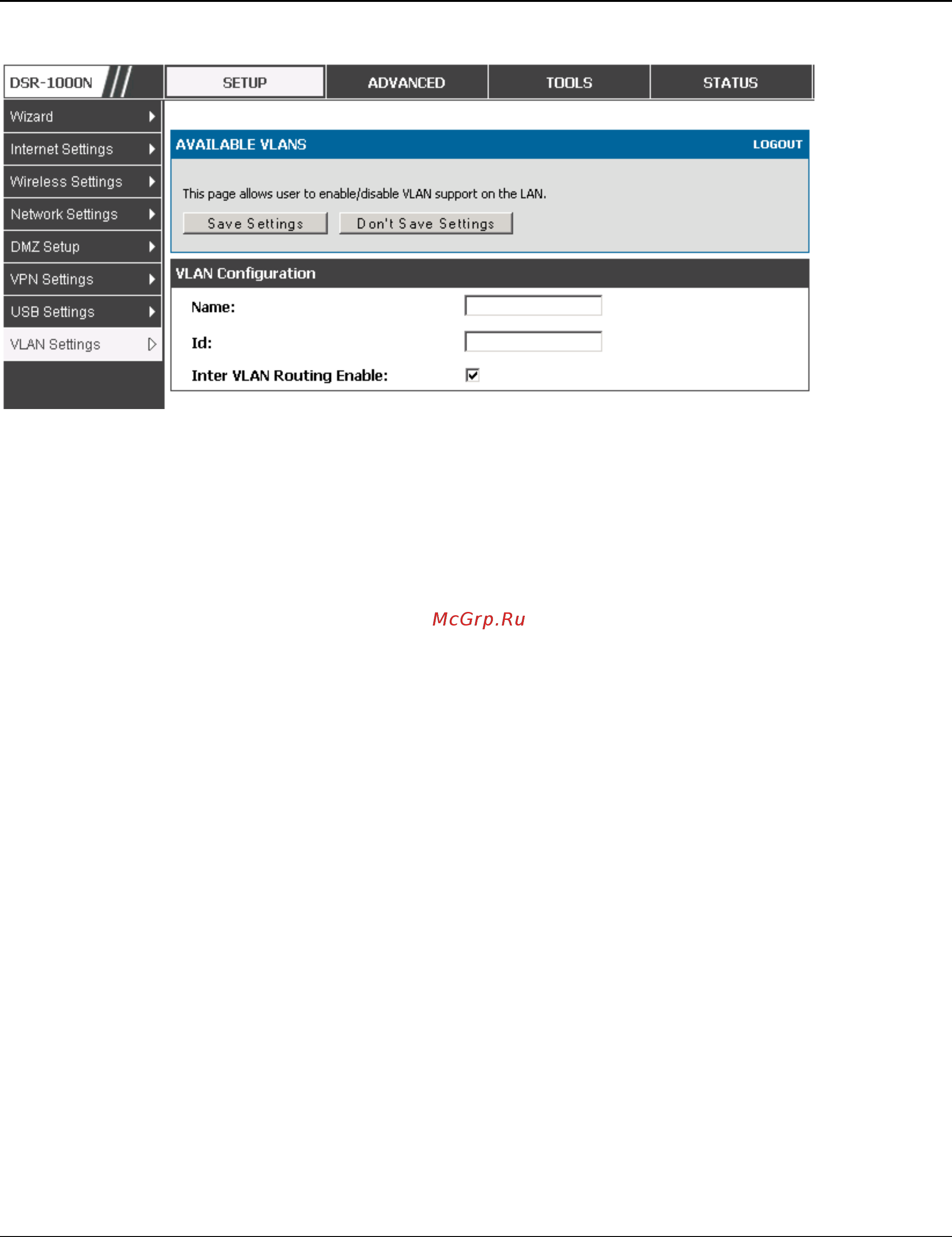

Figure 7: Adding VLAN memberships to the LAN

2.2.1 Associating VLANs to ports

In order to tag all traffic through a specific LAN port with a VLAN ID, you can associate a VLAN

to a physical port.

Setup > VLAN Settings > Port VLAN

VLAN membership properties for the LAN and wireless LAN are listed on this page. The VLAN

Port table displays the port identifier, the mode setting for that port and VLAN membership

information. The configuration page is accessed by selecting one of the four physical ports or a

configured access point and clicking Edit.

The edit page offers the following configuration options:

 Mode: The mode of this VLAN can be General, Access, or Trunk. The default is access.

 In General mode the port is a member of a user selectable set of VLANs. The port sends

and receives data that is tagged or untagged with a VLAN ID. If the data into the port is

untagged, it is assigned the defined PVID. In the configuration from Figure 4, Port 3 is a

General port with PVID 3, so untagged data into Port 3 will be assigned PVID 3. All tagged

data sent out of the port with the same PVID will be untagged. This is mode is typically

used with IP Phones that have dual Ethernet ports. Data coming from phone to the switch

port on the router will be tagged. Data passing through the phone from a connected device

will be untagged.
