D-Link DSR-150 [40/274] Figure 20 wan configuration for japanese multiple pppoe part 1

Unified Services Router User Manual

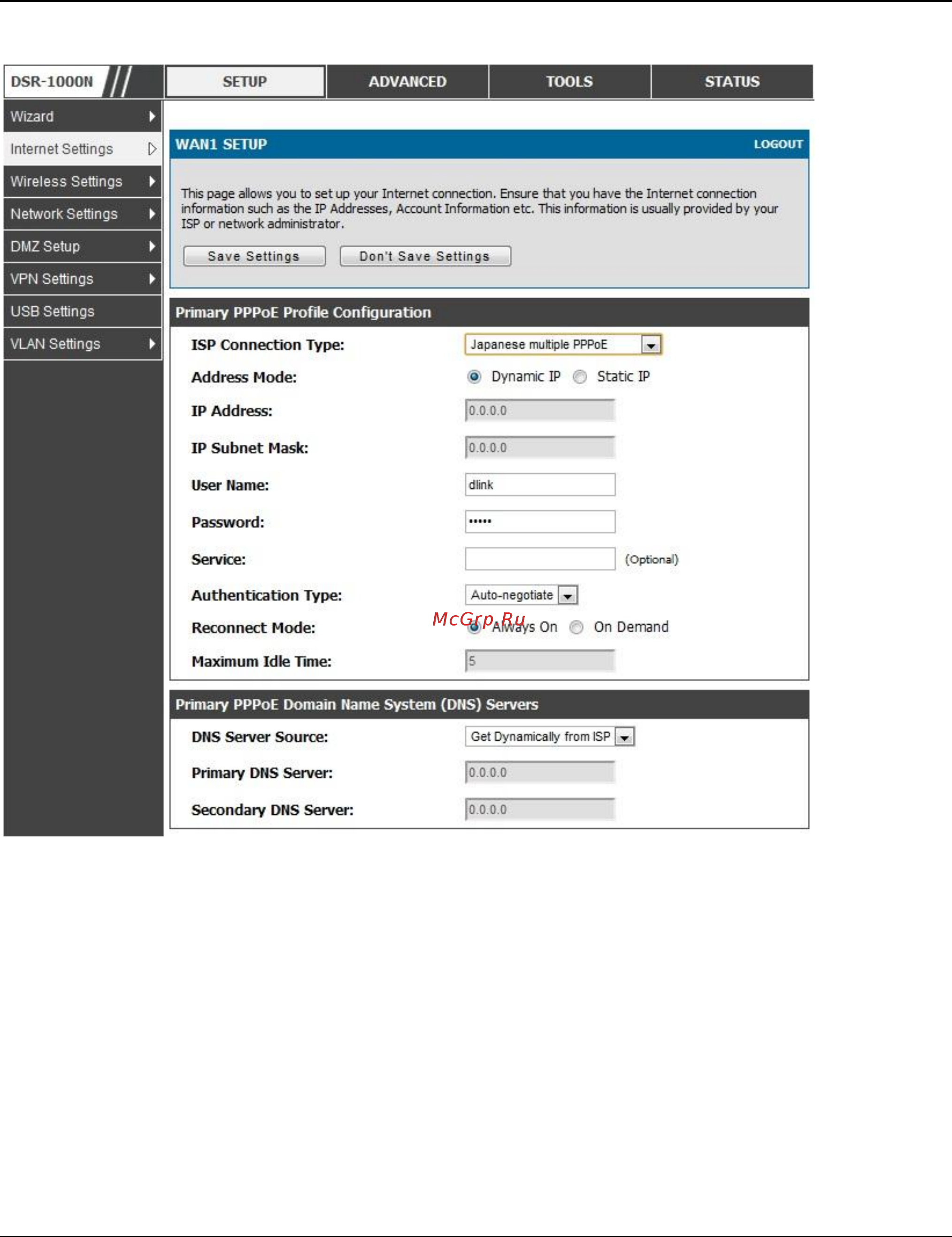

Figure 20: WAN configuration for Japanese Multiple PPPoE (part 1)

There are a few key elements of a multiple PPPoE connection:

 Primary and secondary connections are concurrent

 Each session has a DNS server source for domain name lookup, this can be assigned by the ISP or

configured through the GUI

 The DSR acts as a DNS proxy for LAN users

 Only HTTP requests that specifically identify the secondary connection‘s domain name (for example

*.flets) will use the secondary profile to access the content available through this secondary PPPoE

terminal. All other HTTP / HTTPS requests go through the primary PPPoE connection.
