D-Link DSR-150 [164/274] Remote management

Unified Services Router User Manual

162

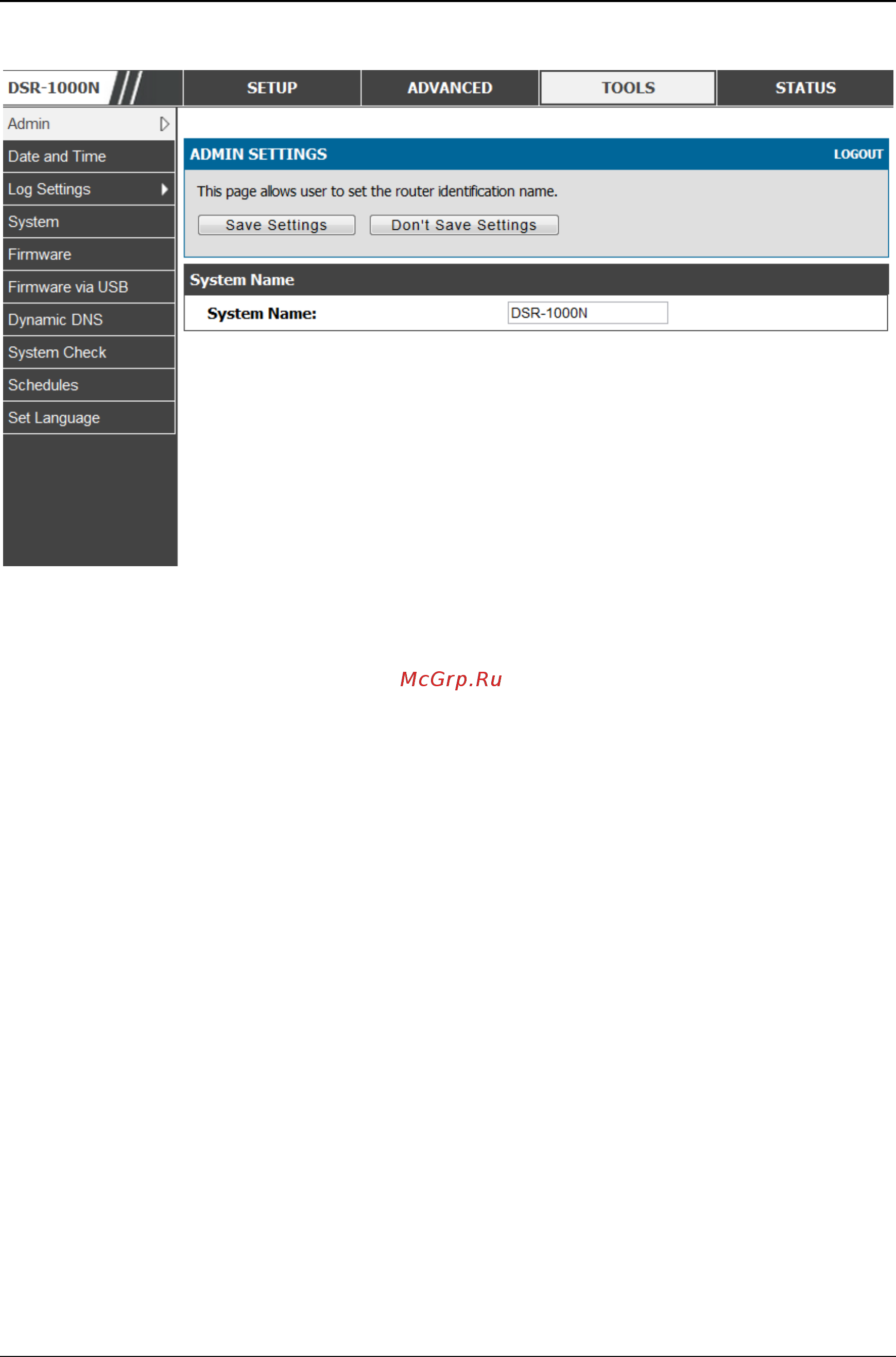

Figure 113: Admin Settings

9.1.2 Remote Management

Tools > Admin > Remote Management

Both HTTPS and telnet access can be restricted to a subset of IP addresses. The

router administrator can define a known PC, single IP address or range of IP

addresses that are allowed to access the GUI with HTTPS. The opened port for SSL

traffic can be changed from the default of 443 at the same time as defining the

allowed remote management IP address range.
