D-Link DSR-150 [124/274] L2tp tunnel support

Unified Services Router User Manual

122

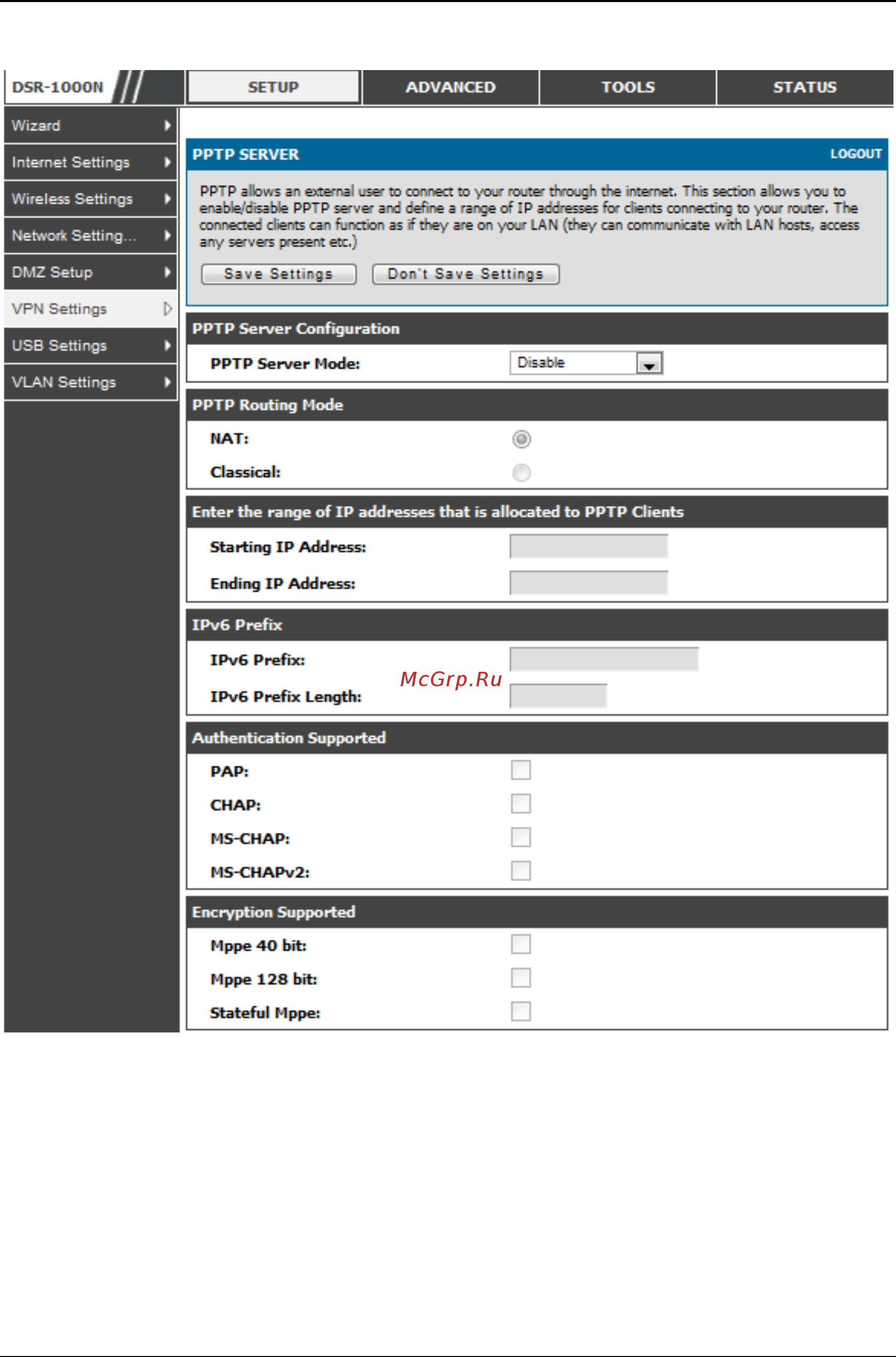

Figure 81: PPTP tunnel configuration – PPTP Server

6.4.2 L2TP Tunnel Support

Setup > VPN Settings > L2TP > L2TP Server

A L2TP VPN can be established through this router. Once enabled a L2TP server is

available on the router for LAN and WAN L2TP client users to access. Once the

L2TP server is enabled, L2TP clients that are within the range of configured IP

addresses of allowed clients can reach the router‘s L2TP server. Once authenticated

by the L2TP server (the tunnel endpoint), L2TP clients have access to the network

managed by the router.
