D-Link DSR-150 [160/274] Figure 109 device drivers

Unified Services Router User Manual

158

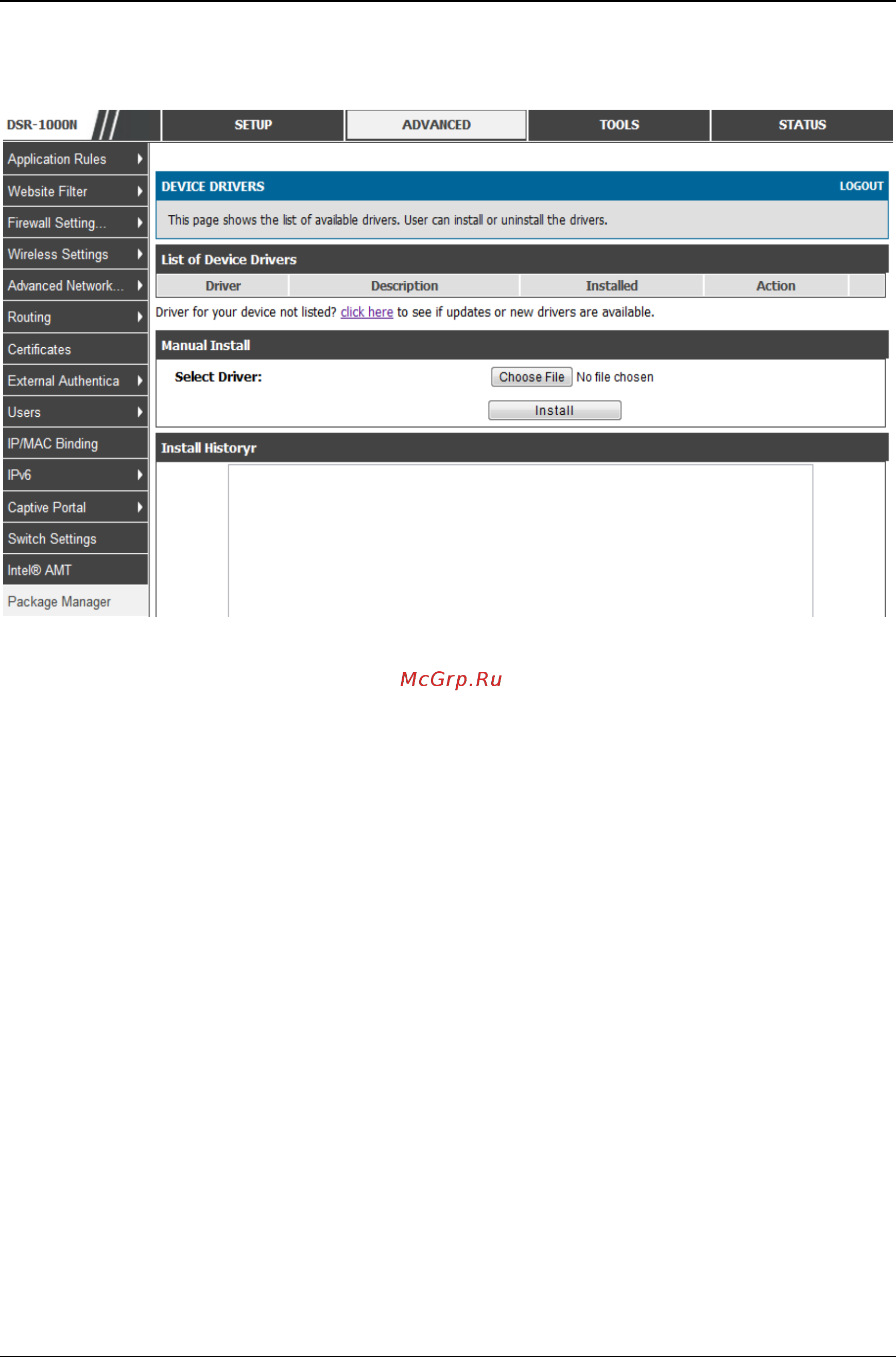

Figure 109: Device Drivers

Device Drivers: Users can install drivers manually or can install from the listed

drivers.

List of Device Drivers: It allows the user to install or uninstall the available drivers.

Manual Install: User can upload the provided driver package for installation.

Browse: The user can choose the package to upload. Click on ―Install‖ to save your

changes.
