D-Link DSR-150 [27/274] Multiple vlan subnets

Unified Services Router User Manual

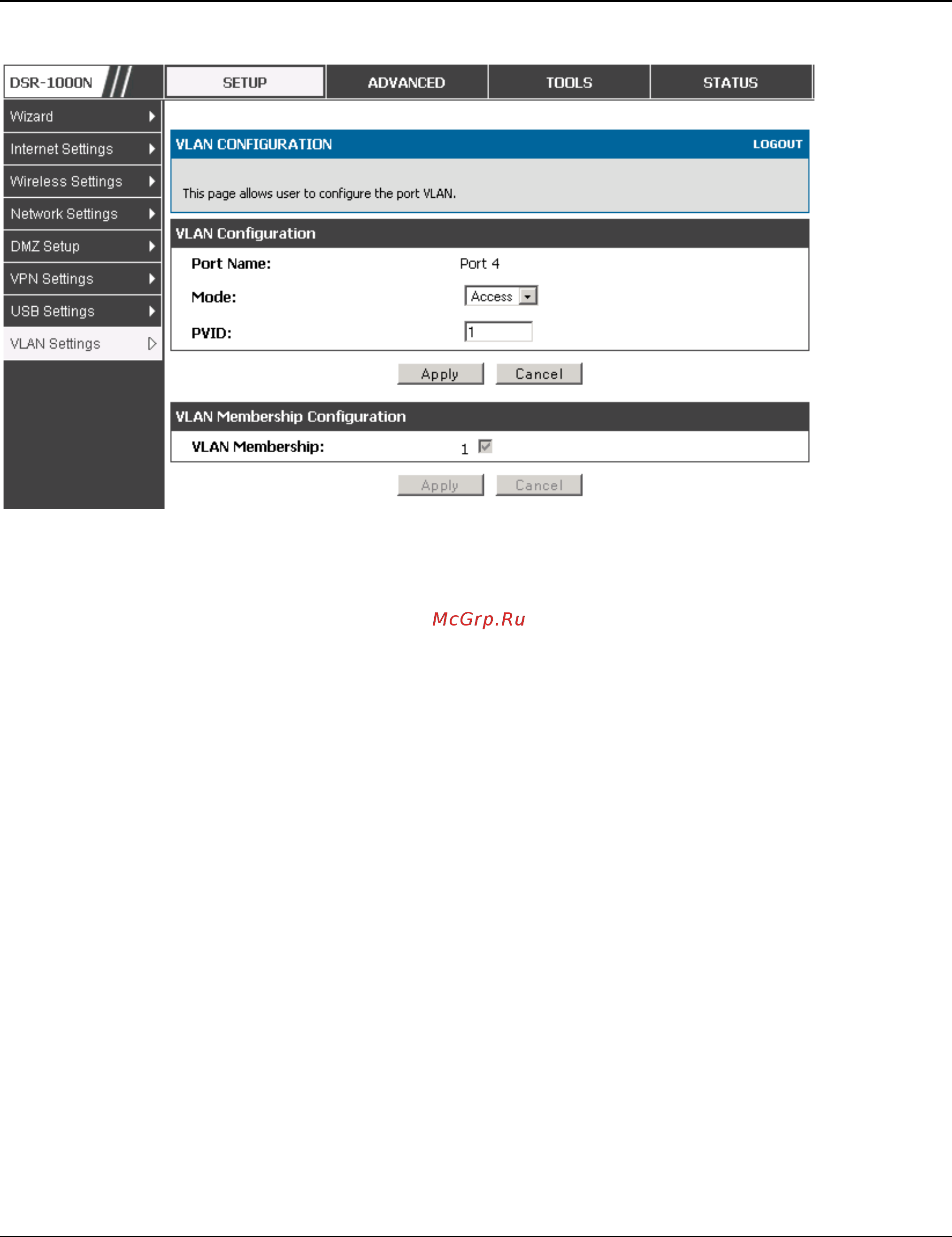

Figure 9: Configuring VLAN membership for a port

2.2.2 Multiple VLAN Subnets

Setup > VLAN Settings > Multi VLAN Settings

This page shows a list of available multi-VLAN subnets. Each configured VLAN ID can map

directly to a subnet within the LAN. Each LAN port can be assigned a unique IP address and a

VLAN specific DHCP server can be configured to assign IP address leases to devices on this VLAN.

VLAN ID: The PVID of the VLAN that will have all member devices be part of the same subnet

range.

IP Address: The IP address associated with a port assigned this VLAN ID.

Subnet Mask: Subnet Mask for the above IP Address
