Unified Services Router User Manual

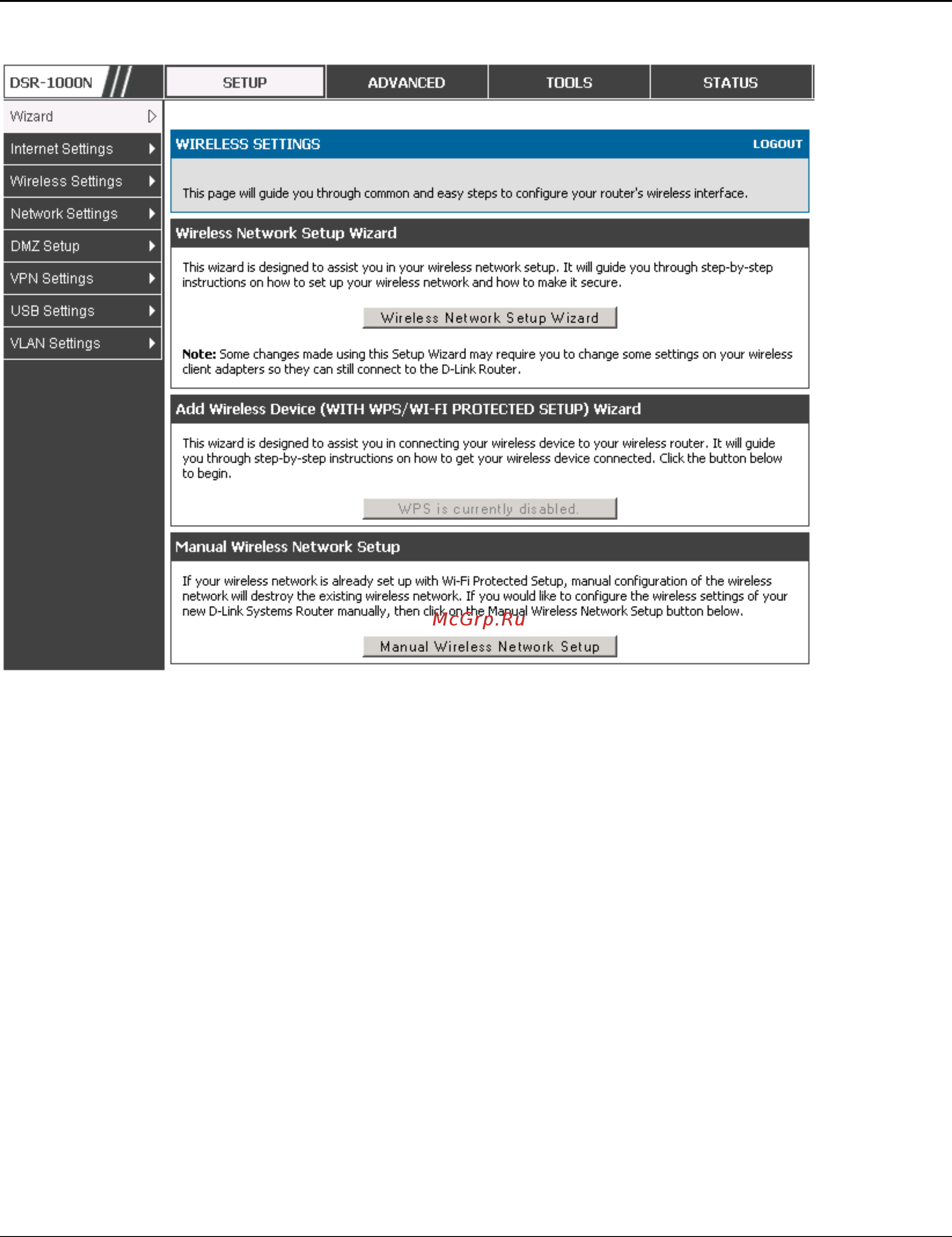

Figure 43: Wireless Network Setup Wizards

4.1.1 Wireless Network Setup Wizard

This wizard provides a step-by-step guide to create and secure a new access point on the router. The

network name (SSID) is the AP identifier that will be detected by supported clients. The Wizard

uses a TKIP+AES cipher for WPA / WPA2 security; depending on support on the client side,

devices associate with this AP using either WPA or WPA2 security with the same pre-shared key.

The wizard has the option to automatically generate a network key for the AP. This key is the pre-

shared key for WPA or WPA2 type security. Supported clients that have been given this PSK can

associate with this AP. The default (auto-assigned) PSK is ―passphrase‖.

The last step in the Wizard is to click the Connect button, which confirms the settings and enables

this AP to broadcast its availability in the LAN.

4.1.2 Add Wireless Device with WPS

With WPS enabled on your router, the selected access point allows supported WPS clients to join

the network very easily. When the Auto option for connecting a wireless device is chose, you will be

presented with two common WPS setup options:
