Unified Services Router User Manual
37
The PPPoE ISP settings are defined on the WAN Configuration page. There are two types of PPPoE
ISP‘s supported by the DSR: the standard username/password PPPoE and J apan Multiple PPPoE.

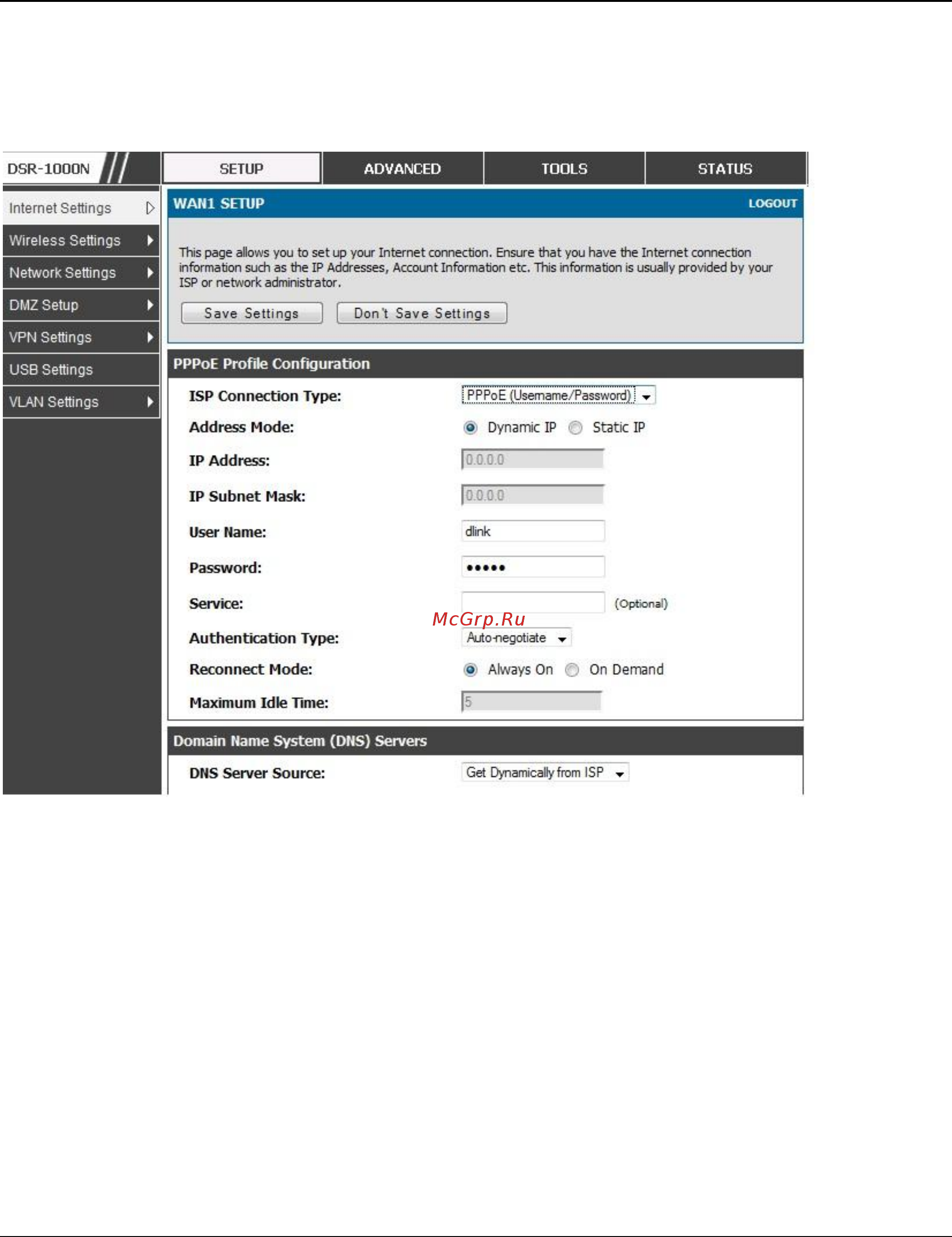

Figure 19: PPPoE configuration for standard ISPs
Most PPPoE ISP‘s use a single control and data connection, and require username / password
credentials to login and authenticate the DSR with the ISP. The ISP connection type for this case is
―PPPoE (Username/Password)‖. The GUI will prompt you for authentication, service, and
connection settings in order to establish the PPPoE link.
For some ISP‘s, most popular in Japan, the use of ―Japanese Multiple PPPoE‖ is required in order to
establish concurrent primary and secondary PPPoE connections between the DSR and the ISP. The
Primary connection is used for the bulk of data and internet traffic and the Secondary PPPoE
connection carries ISP specific (i.e. control) traffic between the DSR and the ISP.
