D-Link DSR-150 [63/274] To4 tunneling

Unified Services Router User Manual

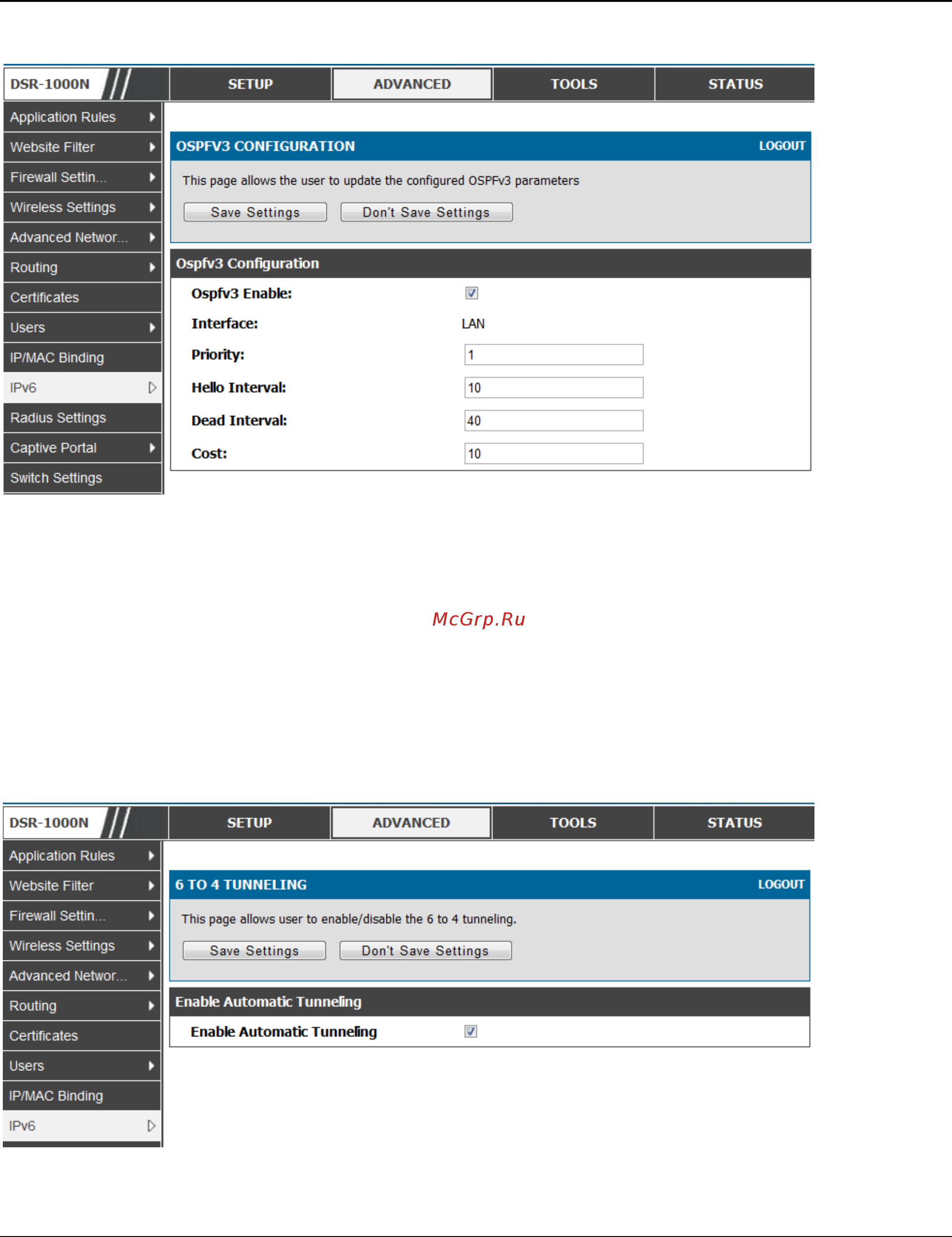

Figure 38: OSPFv3 configuration

3.5.6 6to4 Tunneling

Advanced > IPv6 > 6to4 Tunneling

6to4 is an Internet transition mechanism for migrating from IPv4 to IPv6, a system that

allows IPv6 packets to be transmitted over an IPv4 network. Select the check box to

Enable Automatic Tunneling and allow traffic from an IPv6 LAN to be sent over a IPv4

Option to reach a remote IPv6 network.

Figure 39: 6 to 4 tunneling
