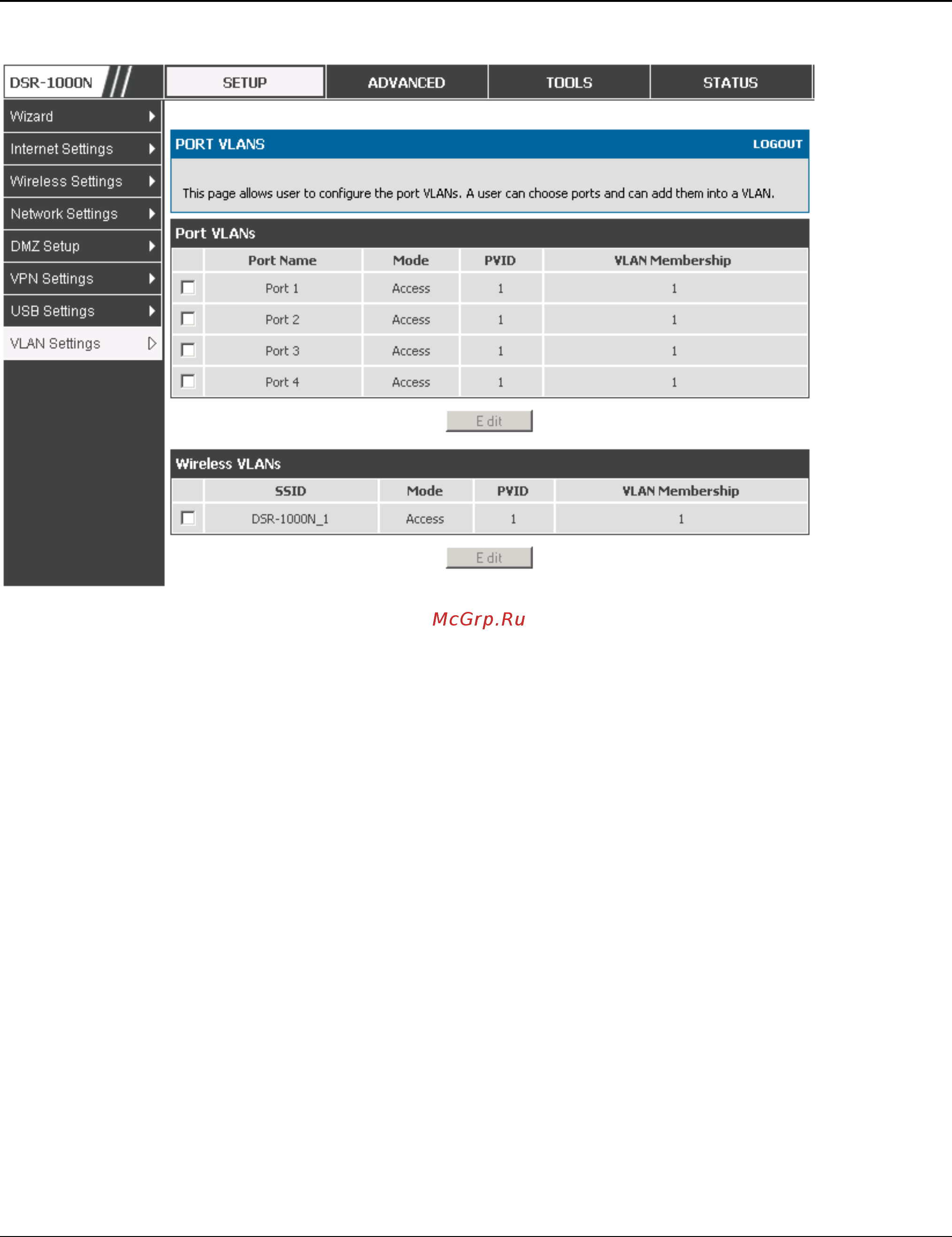

Figure 8: Port VLAN list

 In Access mode the port is a member of a single VLAN (and only one). All data going into

and out of the port is untagged. Traffic through a port in access mode looks like any other

Ethernet frame.

 In Trunk mode the port is a member of a user selectable set of VLANs. All data going into

and out of the port is tagged. Untagged coming into the port is not forwarded, except for

the default VLAN with PVID=1, which is untagged. Trunk ports multiplex traffic for

multiple VLANs over the same physical link.

 Select PVID for the port when the General mode is selected.

 Configured VLAN memberships will be displayed on the VLAN Membership Configuration

for the port. By selecting one more VLAN membership options for a General or Trunk port,

traffic can be routed between the selected VLAN membership IDs
