D-Link DSR-150 [119/274] Figure 77 ipsec policy configuration continued auto policy via ike

Unified Services Router User Manual

117

The VPN policy is one half of the IKE/VPN policy pair required to establish an Auto

IPsec VPN tunnel. The IP addresses of the machine or machines on the two VPN

endpoints are configured here, along with the policy parameters required to secure the

tunnel

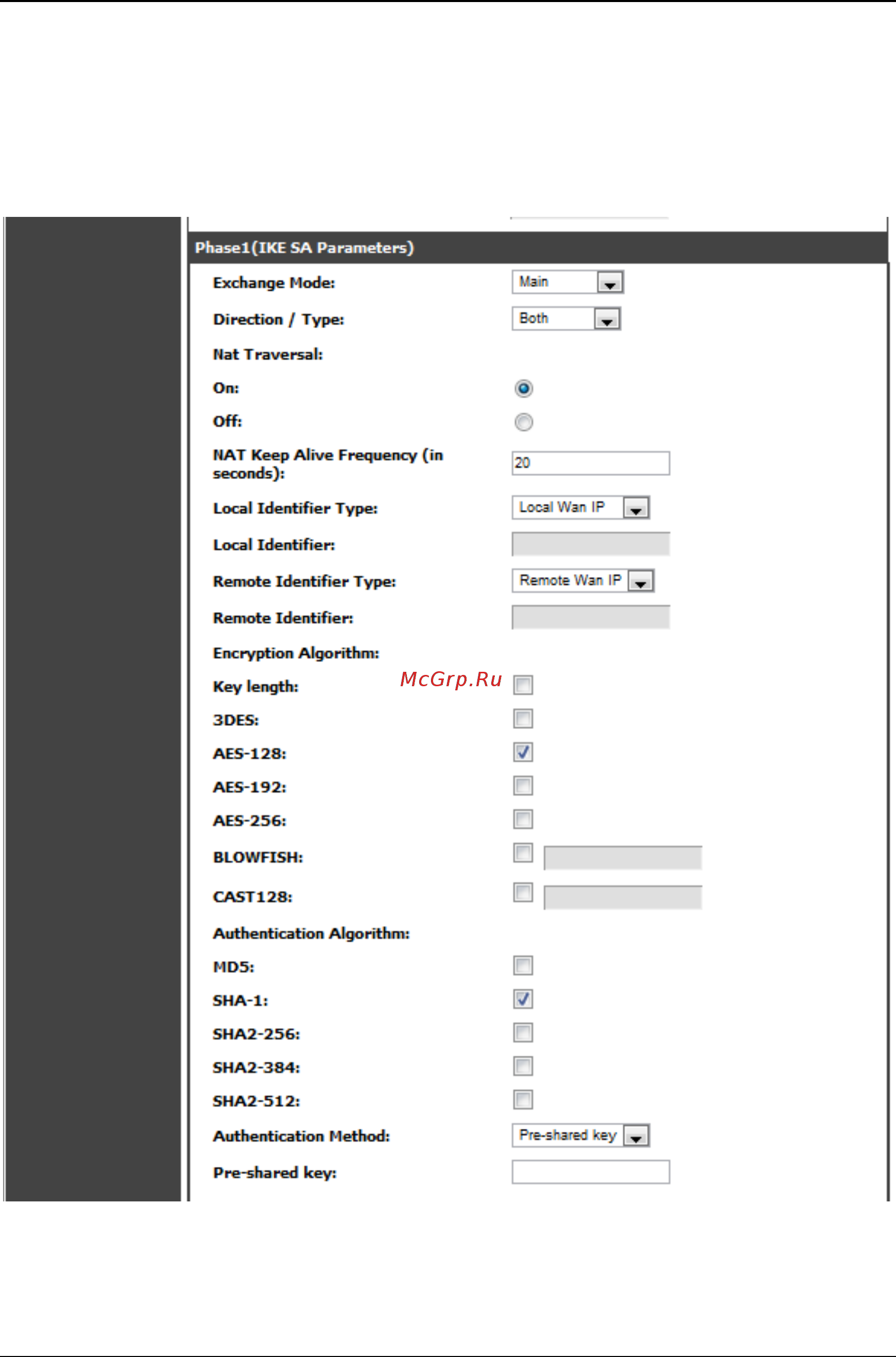

Figure 77: IPsec policy configuration continued (Auto policy via IKE)

A Manual policy does not use IKE and instead relies on manual keying to exchange

authentication parameters between the two IPsec hosts. The incoming and outgoing

security parameter index (SPI) values must be mirrored on the remote tunnel
