D-Link DSR-150 [163/274] Chapter 9 administration management
![D-Link DSR-150 [163/274] Chapter 9 administration management](/views2/1459659/page163/bga3.png)
Unified Services Router User Manual
161
Chapter 9. Administration & Management
9.1 Configuration Access Control
The primary means to configure this gateway via the browser-independent GUI. The
GUI can be accessed from LAN node by using the gateway‘s LAN IP address and
HTTP, or from the WAN by using the gateway‘s WAN IP address and HTTPS (HTTP
over SSL).
Administrator and Guest users are permitted to login to the router‘s management
interface. The user type is set in the Advanced > Users > Users page. The Admin or
Guest user can be configured to access the router GUI from the LAN or the Internet
(WAN) by enabling the corresponding Login Policy.

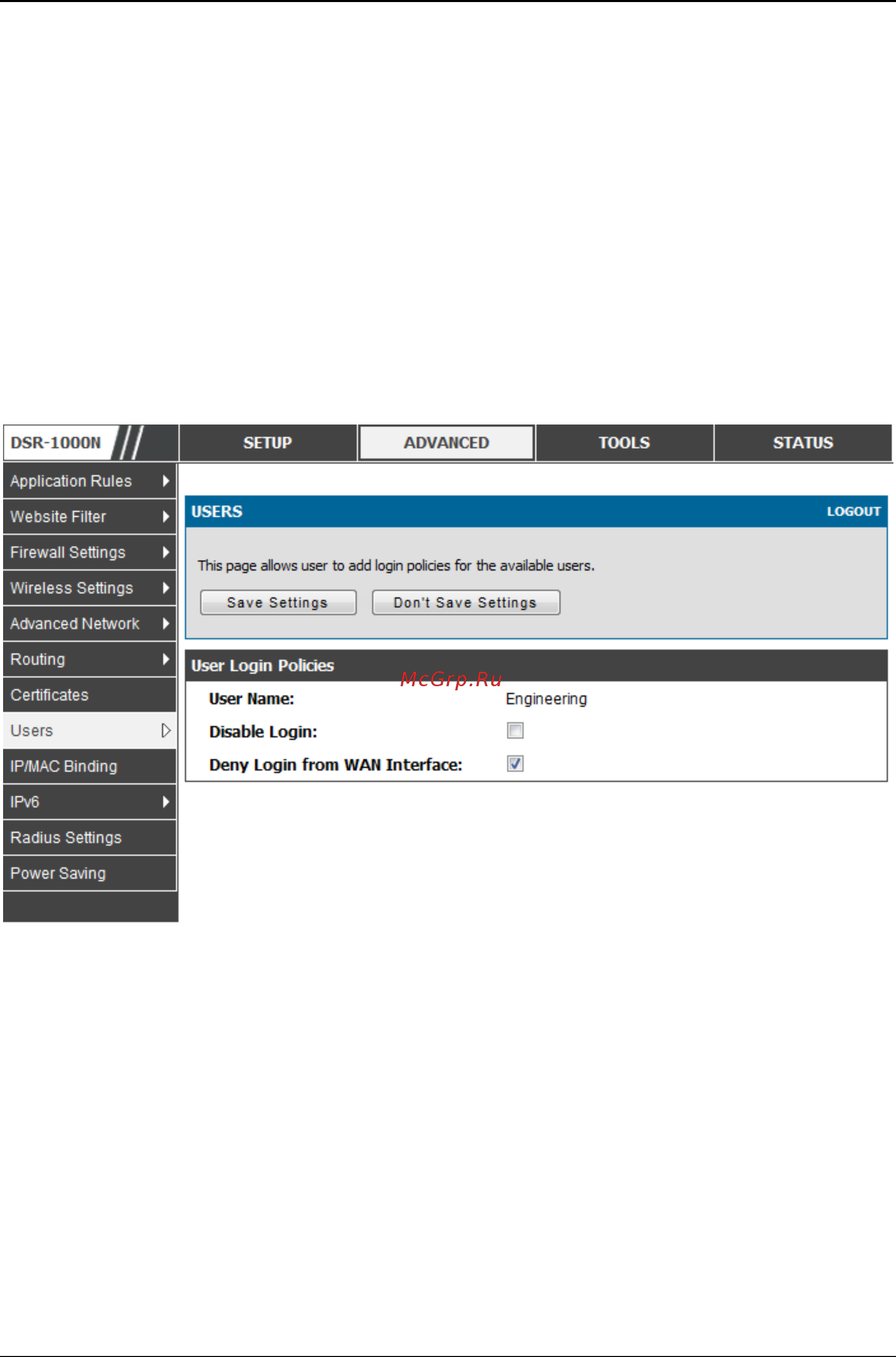

Figure 112: User Login policy configuration
9.1.1 Admin Settings
Tools > Admin > Admin settings
This page allows to provide the name of the router.
