Unified Services Router User Manual
152

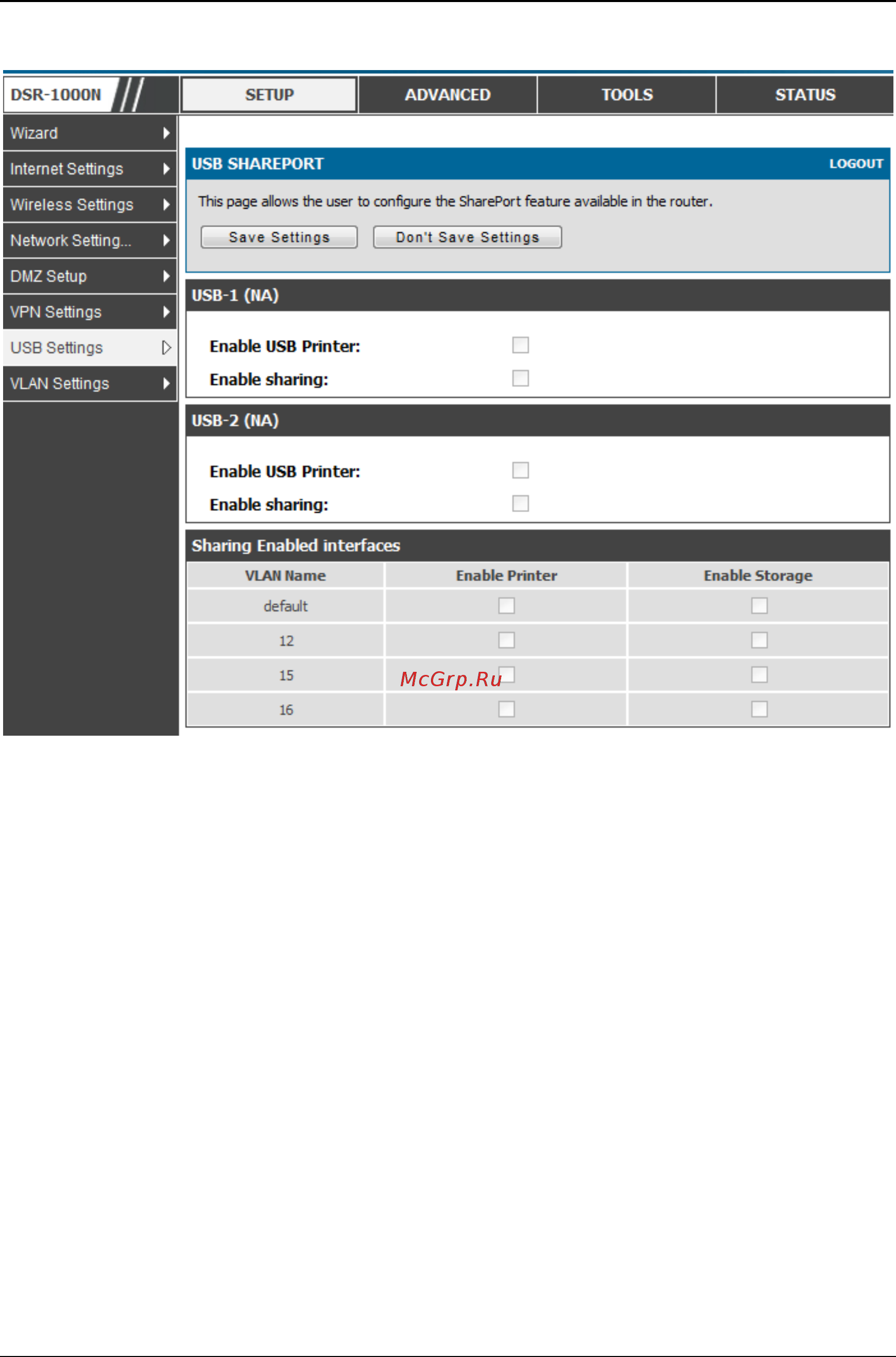

Figure 104: USB SharePort
USB-1:
Enable USB Printer: Select this option to allow the USB printer connected to the
router to be shared across the network.
The USB printer can be accessed on any LAN host (with appropriate printer driver
installed) connected to the router by using the following command in the host's add
printers window
http://<Router's IP:631>/printers/<Device Model> (Device Model can be found in the
USB settings page).
Enable Sharing: Select this option to allow the USB storage device connected to the
router to be shared across the network.
USB-2:
Enable USB Printer: Select this option to allow the USB printer connected to the
router to be shared across the network.
The USB printer can be accessed on any LAN host (with appropriate printer driver
installed) connected to the router by using the following command in the host's add
printers window
http://<Router's IP:631>/printers/<Device Model> (Device Model can be found in the
USB settings page).
