D-Link DSR-150 [128/274] Openvpn authentication

Unified Services Router User Manual

126

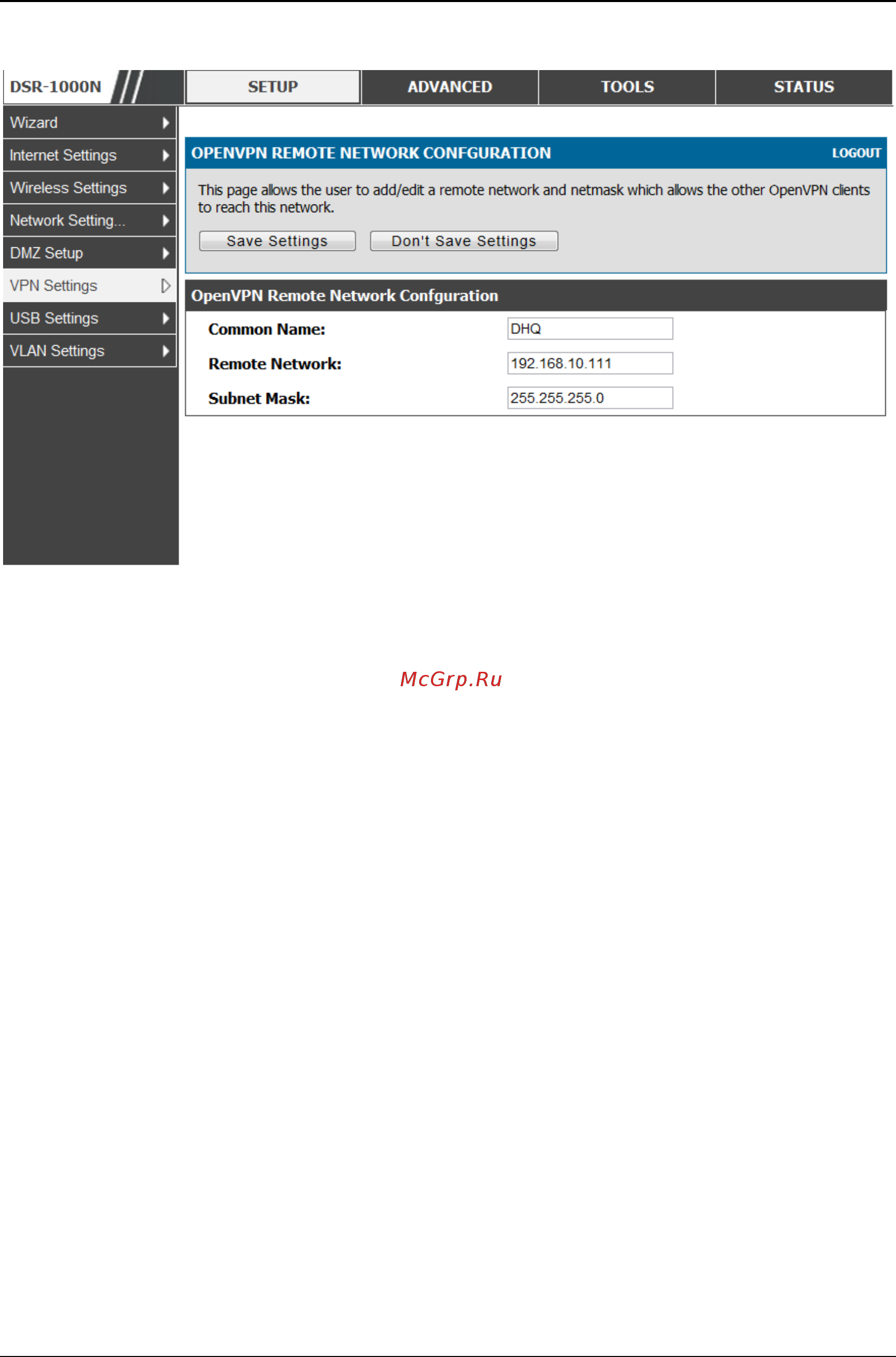

Figure 84: OpenVPN Remote Network

Common Name: Common Name of the OpenVPN client certificate.

Remote Network: Network address of the remote resource.

Subnet Mask: Netmask of the remote resource.

6.4.5 OpenVPN Authentication

Setup > VPN Settings > OpenVPN > OpenVPN Authentication

This page allows the user to upload required certificates and keys.
