D-Link DSR-150 [191/274] Sessions through the router

Unified Services Router User Manual

189

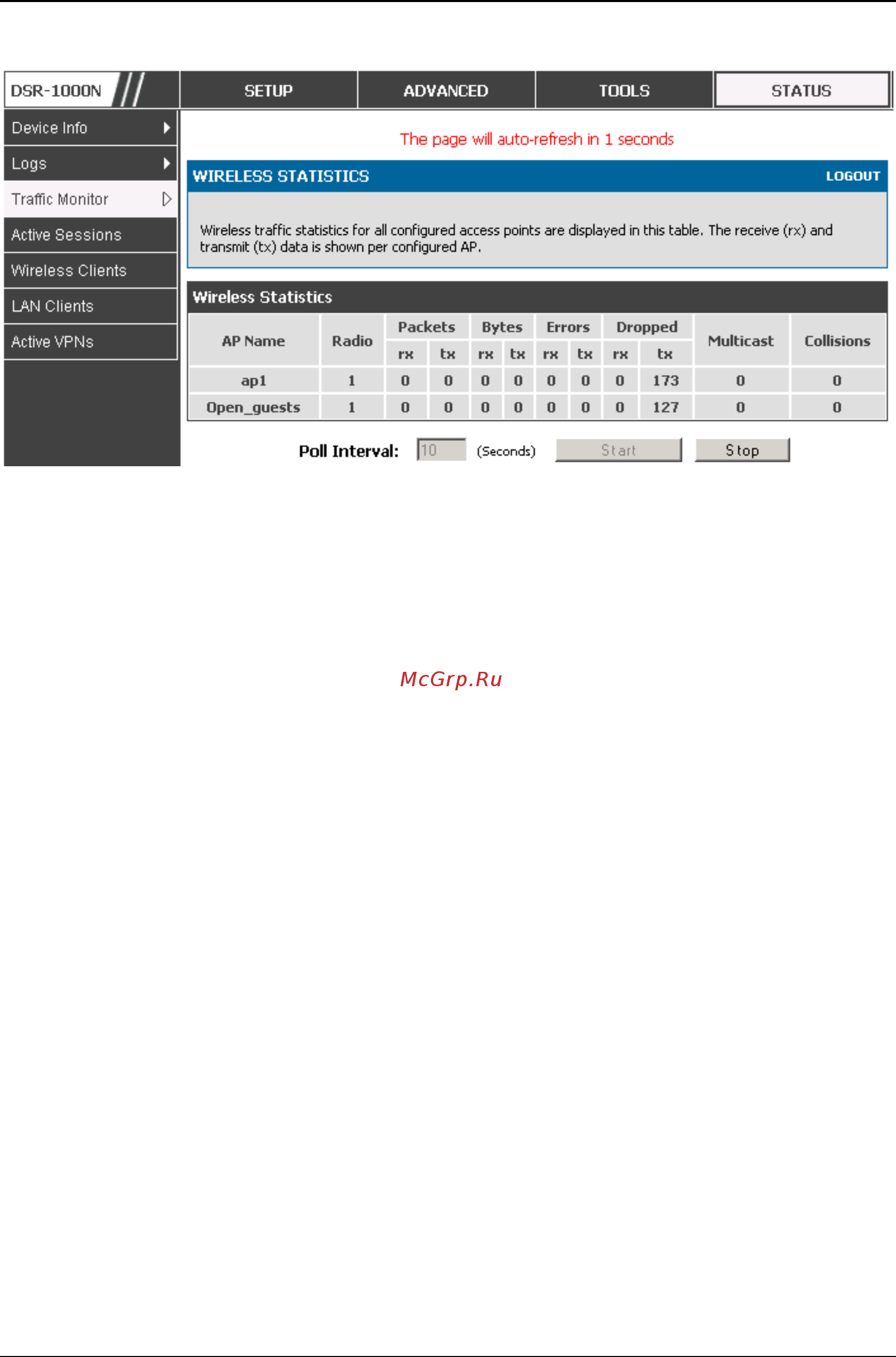

Figure 137: AP specific statistics

10.3 Active Connections

10.3.1 Sessions through the Router

Status > Active Sessions

This table lists the active internet sessions through the router‘s firewall. The

session‘s protocol, state, local and remote IP addresses are shown.
