Unified Services Router User Manual

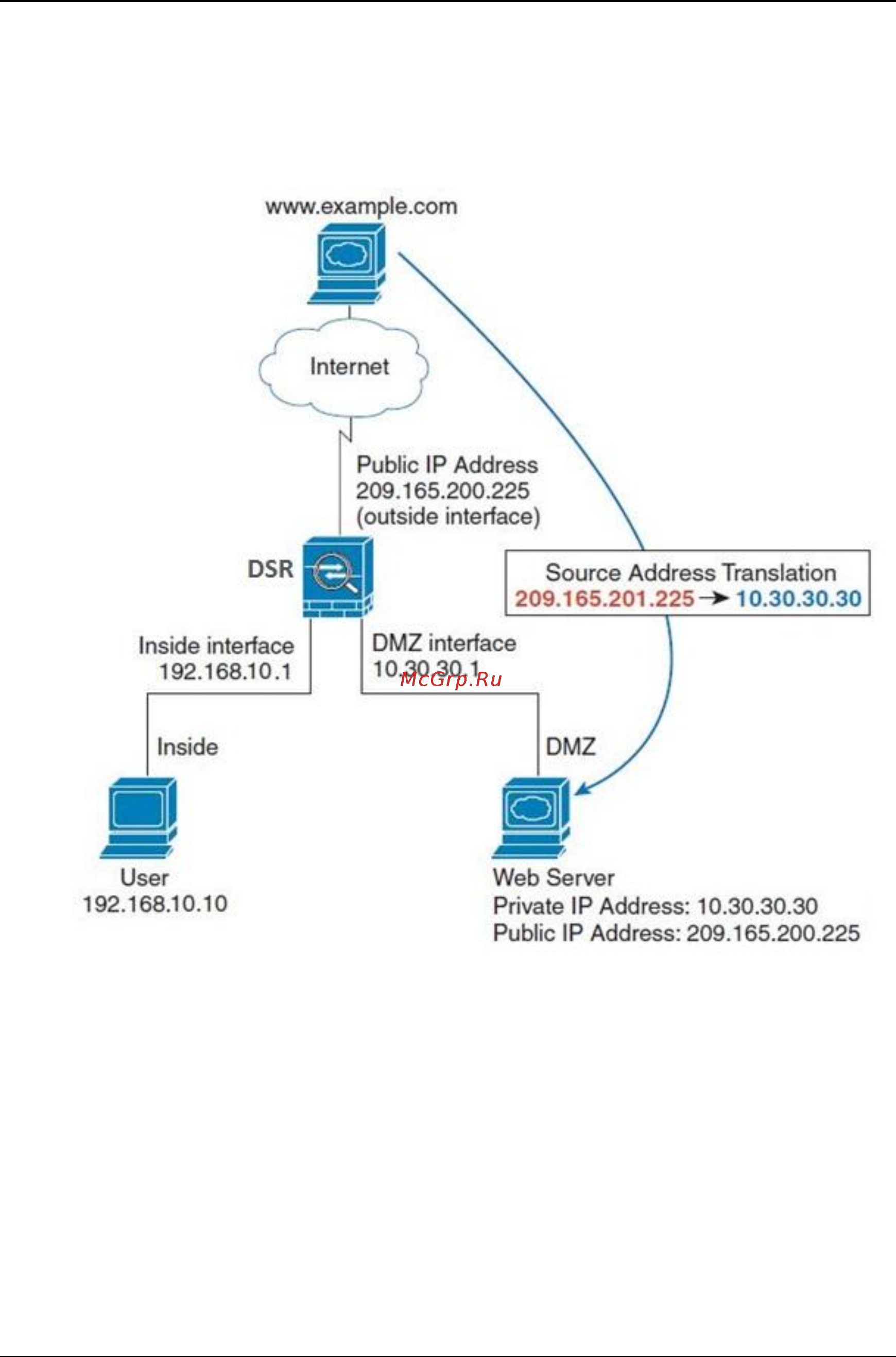

Figure 56: Example where an outbound SNAT rule is used to map an

external IP address (209.156.200.225) to a private DMZ IP

address (10.30.30.30)
