VI
QUICK REFERENCE GUIDE
New2001

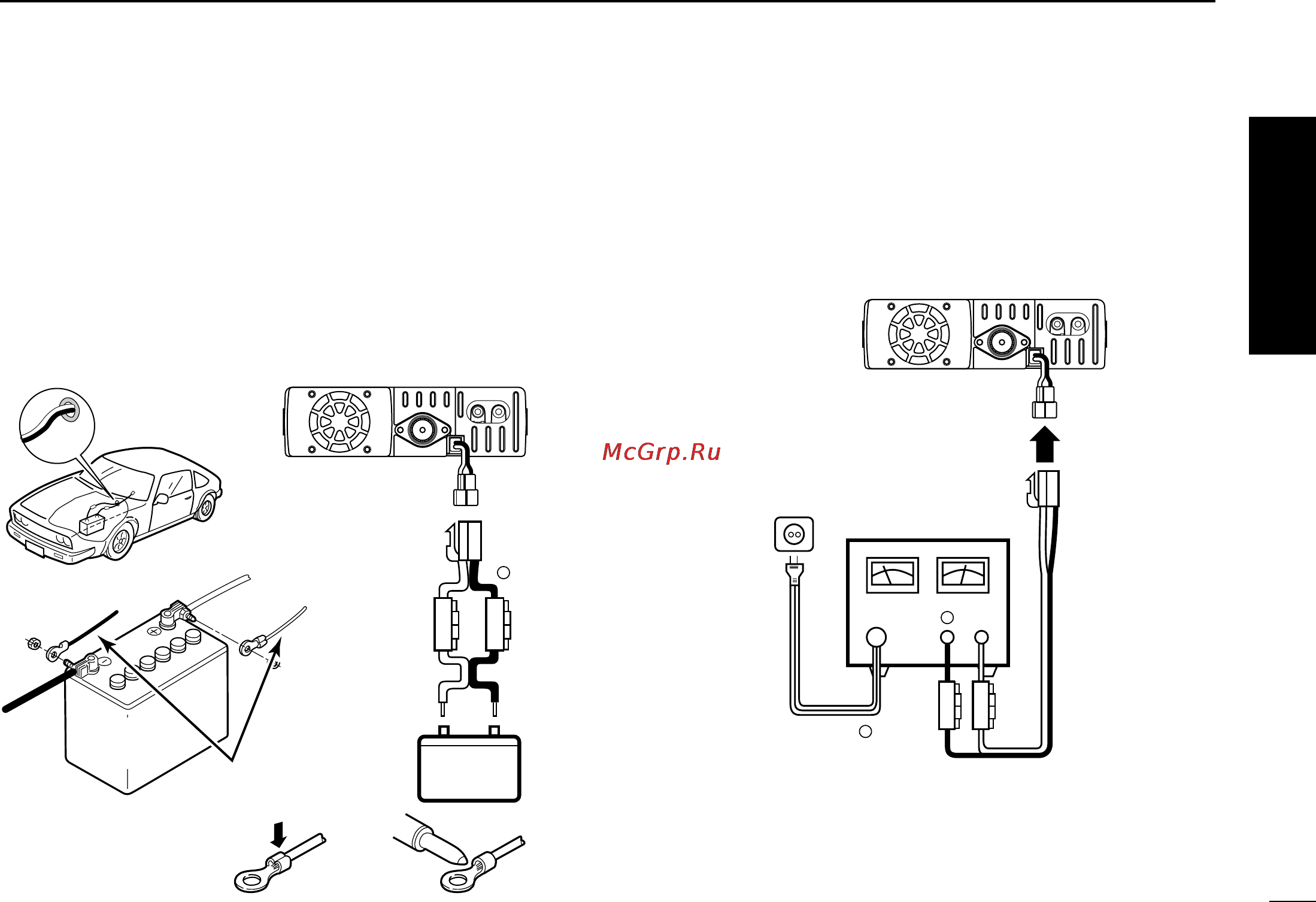

D Battery connection
☞ RWARNING NEVER remove the fuse holders from the
DC power cable.
☞ NEVER connect the transceiver directly to a 24 V battery.
☞ DO NOT use the cigarette lighter socket for power con-
nections. (See p. 6 for details)
Attach a rubber grommet when passing the DC power cable
through a metal plate to prevent a short circuit.
• CONNECTING TO A DC POWER SOURCE
D DC power supply connection
Use a 13.8 V DC power supply with at least 15 A capacity.
Make sure the ground terminal of the DC power supply is
grounded.
• CONNECTING TO A DC POWER SUPPLY
See p. 74 for fuse replacement.
DC power
supply 13.8 V
to an
AC
outlet
Fuses
20 A
black
red⊕
−
⊕
−
IC-2720H
IC-2720H
Fuses
20 A
black
red⊕
−
12 V
Grommet
NOTE:
Use terminals for the
cable connections.
WARNING!
NEVER
remove the
fuse holders.
Crimp
Solder
12 V
battery
Supplied
DC power cable
+ red
_ black
Quick reference guide
