35
New2001
5 MEMORY OPERATION
■ Memory bank selection
The IC-2720H has a total of 10 banks (A to J). Regular mem-
ory channels, 000 to 199, are assigned into the desired bank
for easy memory management.
q Push the desired band’s
[M/CALL•MW] several
times to select memory
mode, if desired.
w Push the same band’s
[MAIN•BAND] for 1 sec.
to select memory bank
condition.
• Bank initial blinks
e Rotate the same band’s
[DIAL] to select the de-
sired bank, A to J.
• Banks that have no pro-
grammed contents are
skipped.
r Push the [MAIN•BAND] to set the bank.
• Initial stops blinking.
t Rotate the [DIAL] to select the contents in the bank.
• No channel numbers are displayed for memory bank operation.
y To return to regular memory
condition, push the
[MAIN•BAND] for 1 sec. then push the [MAIN•BAND] mo-
mentarily again.
z Push [MR/CALL] to select memory mode, if de-
sired.
x Push [FUNC] then [
MONI
1(BANK)] to select
memory bank condition.
• Bank initial blinks
c Push [Y]/[Z] to select the desired bank, A to J.
• Only programmed memory bank can be selected.
v Push [
CLR
A(MW)] to set the bank.
• Initial stops blinking.
b Push [Y]/[Z] to select the desired contents in
the bank.
• No channel numbers are displayed for memory
bank operation.
n
To return to regular memory condition, push
[FUNC], [
MONI
1(BANK)] then push [
CLR
A(MW)].
BANK
[Y]/[Z]
MAIN
T X
M

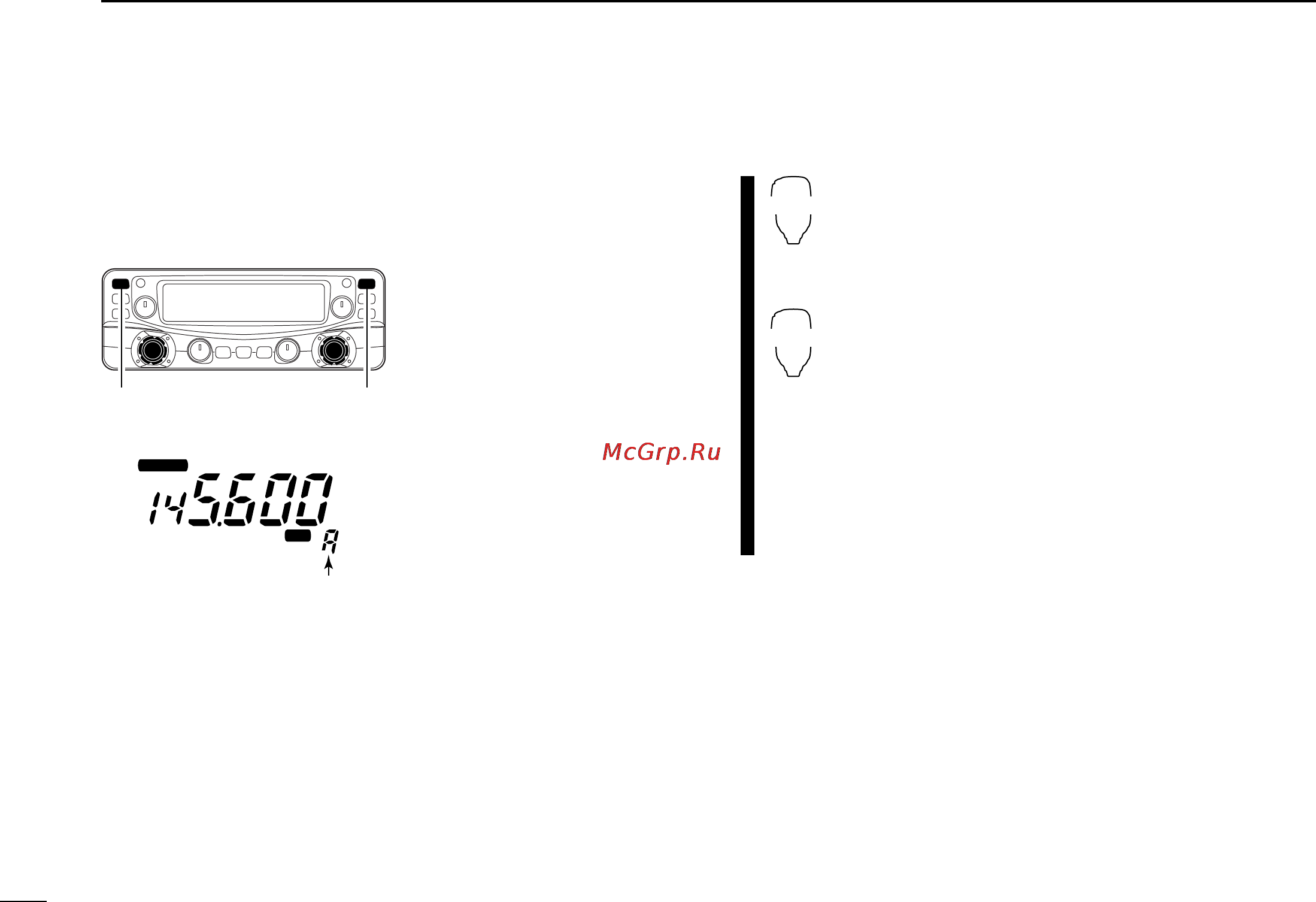

Push [MAIN•BAND] for 1 sec.
to select memory bank.
Bank initial appears
IC-2720H_2.qxd 03.5.13 9:45 Page 35 (1,1)
