31
5 MEMORY OPERATION
New2001
D Programming a memory channel via the microphone

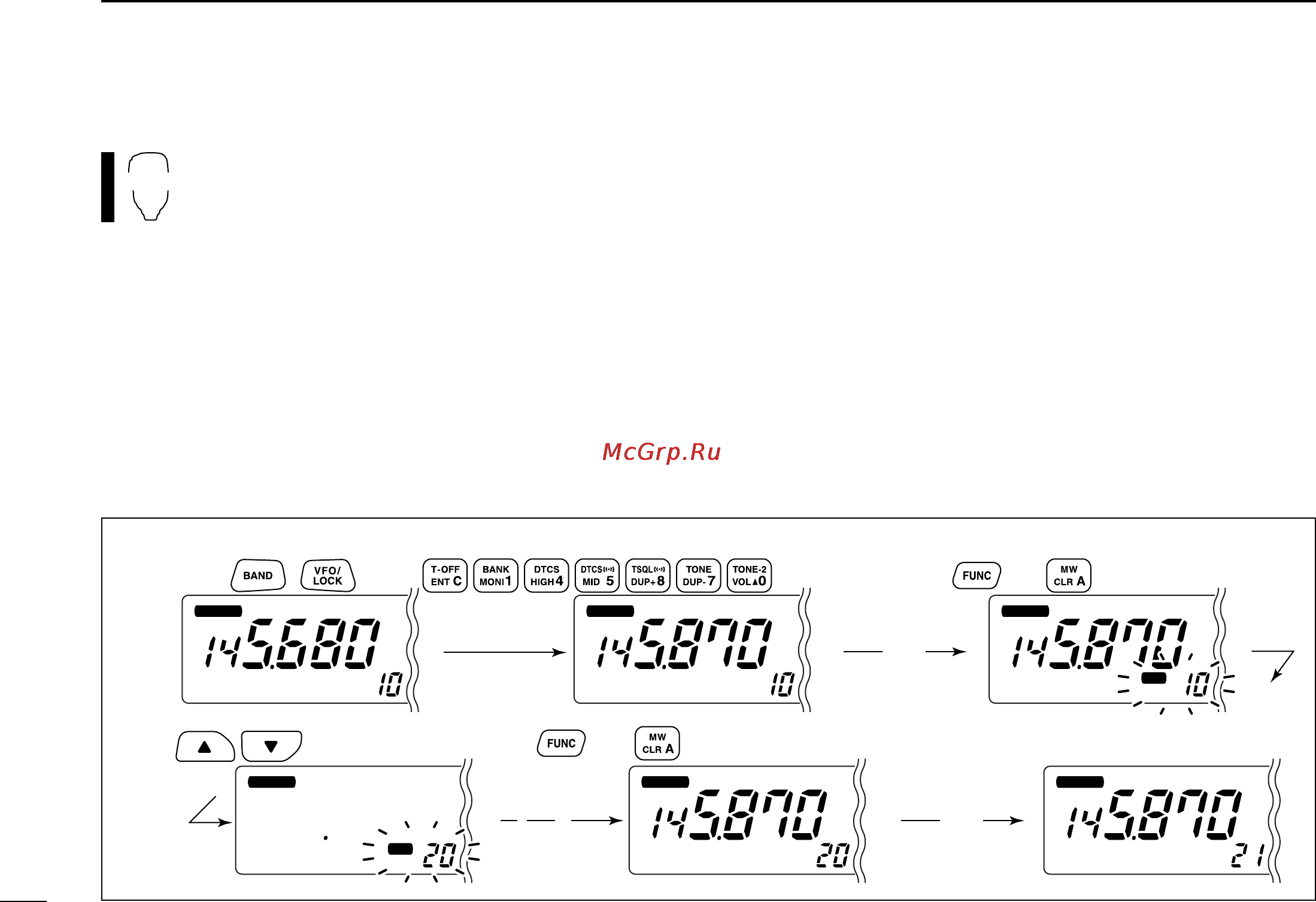

[EXAMPLE]: Programming 145.870 MHz into memory channel 20 (blank channel) via the microphone.
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
Push
Beep
“
Beep
“
Beep
Beep
Beep
“
“
“
“
“
Push , Push then
Push then for 1 sec. and continue to push
➠
The microphone can also be used to program mem-
ory channels.
z Set the desired frequency in VFO mode.
➥ Push [VFO/LOCK] to select VFO mode.
➥ Set the frequency using the keypad.
➥ Set other data
(e.g. offset frequency, duplex direction, sub-
audible tone encoder ON/OFF and its frequency), if neces-
sary.
x Push [FUNC] then [
CLR
A(MW)] momentarily.
c Push [Y] or [Z] to select the memory channel.
•
Direct numeral input cannot be used.
v Push [FUNC] then [
CLR
A(MW)] for 1 sec. to program.
➥ 3 beeps may sound and the VFO contents (including
the subaudible tone frequency, etc.) are programmed.
➥ Memory channel number increases when continuing to
push [
CLR
A(MW)] after programming.
MW
