VIII
QUICK REFERENCE GUIDE
New2001
■ Your first contact
Now that you have your IC-2720H installed in your car or
shack, you are probably excited to get on the air. We would
like to take you through a few basic operation steps to make
your first “On The Air” an enjoyable experience.
1. Turning ON the transceiver
Before powering up your IC-2720H, you may want to make
sure the audio volume and squelch level controls are set in
9–10 o’clock positions.
Although you have purchased a brand new transceiver, some
settings may be changed from the factory defaults because
of the QC process. Resetting the CPU is necessary to start
from factory default.

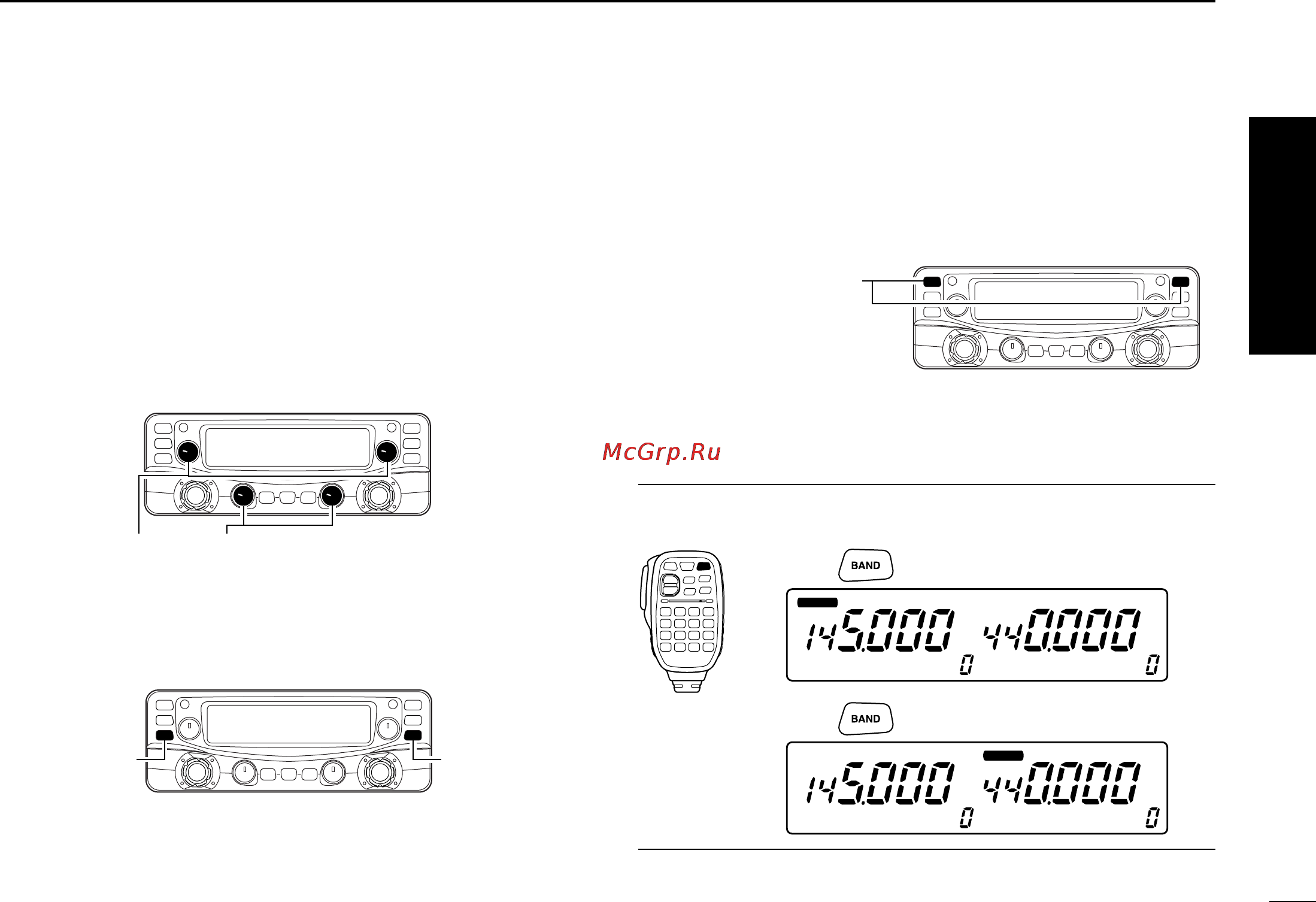

➥ While pushing both band’s [M/CALL•MW], push [PWR] for
1 sec. to reset the CPU.
2. Selecting the main band
The IC-2720H displays 2 frequencies on left and right bands
simultaneously. However, transmission, some switches and
microphone keys operation are accepted for the main band
only.
➥ Push the desired band’s (left or right) [MAIN•BAND] to se-
lect the main band.
•“Q” appears for the main band.
Using the HM-133
You can select the main band from the HM-133.
MAIN
T X
MAIN
T X
M
M
MAIN
T X
MAIN
T X
M
M
Push
Push again
Push the desired band’s
[MAIN•BAND]
[M/CALL•MW]
While pushing both [M/CALL•MW], turn power ON.
[M/CALL•MW]
Set both [VOL] and [SQL] controls to 9–10 o’clock positions.
Quick reference guide
IC-2720H_2.qxd 03.5.13 9:45 Page VIII (1,1)
