13
2 SETTING A FREQUENCY
New2001
■ Using the tuning dial
qRotate the desired band’s [DIAL] to set the frequency.
• If VFO mode is not selected, push the same band’s
[V/MHz•SCAN] to select VFO mode.
• The frequency changes in the selected tuning steps. (p. 14)
w
To change the frequency in 1 MHz (10 MHz for some versions)
steps, push [V/MHz•SCAN], then rotate [DIAL].
• Pushing [V/MHz•SCAN] for 1 sec. starts scan function. If scan
starts, push [V/MHz•SCAN] again to cancel it.
■ Using the [Y]/[Z] keys
➥ Push [Y] or [Z] to select the desired frequency.
• Push [BAND] to select the desired band (left or right)
as the main band in advance.
• Pushing [Y]/[Z] for 1 sec. activates a scan. If scan
starts, push [Y]/[Z] or [
CLR
A(MW)] to cancel it.
■ Using the keypad
The frequency can be directly set via numeral keys on the mi-
crophone.
z Push [BAND] to select the desired band (left or
right) as the main band.
• Push [VFO/LOCK] to select VFO mode, if necessary.
x Push [
ENT
C(T-OFF)] to activate the keypad for
digit input.
c Push 6 keys to input a frequency.
• When a digit is mistakenly input, push [
ENT
C(T-OFF)]
to clear the input, then repeat input from the 1st digit.
• Pushing [
CLR
A(MW)] clears input digits and retrieves
the frequency.
MAIN
T X
MAIN
MAIN
T X
MAIN
T X
Push
Push
Push
Push

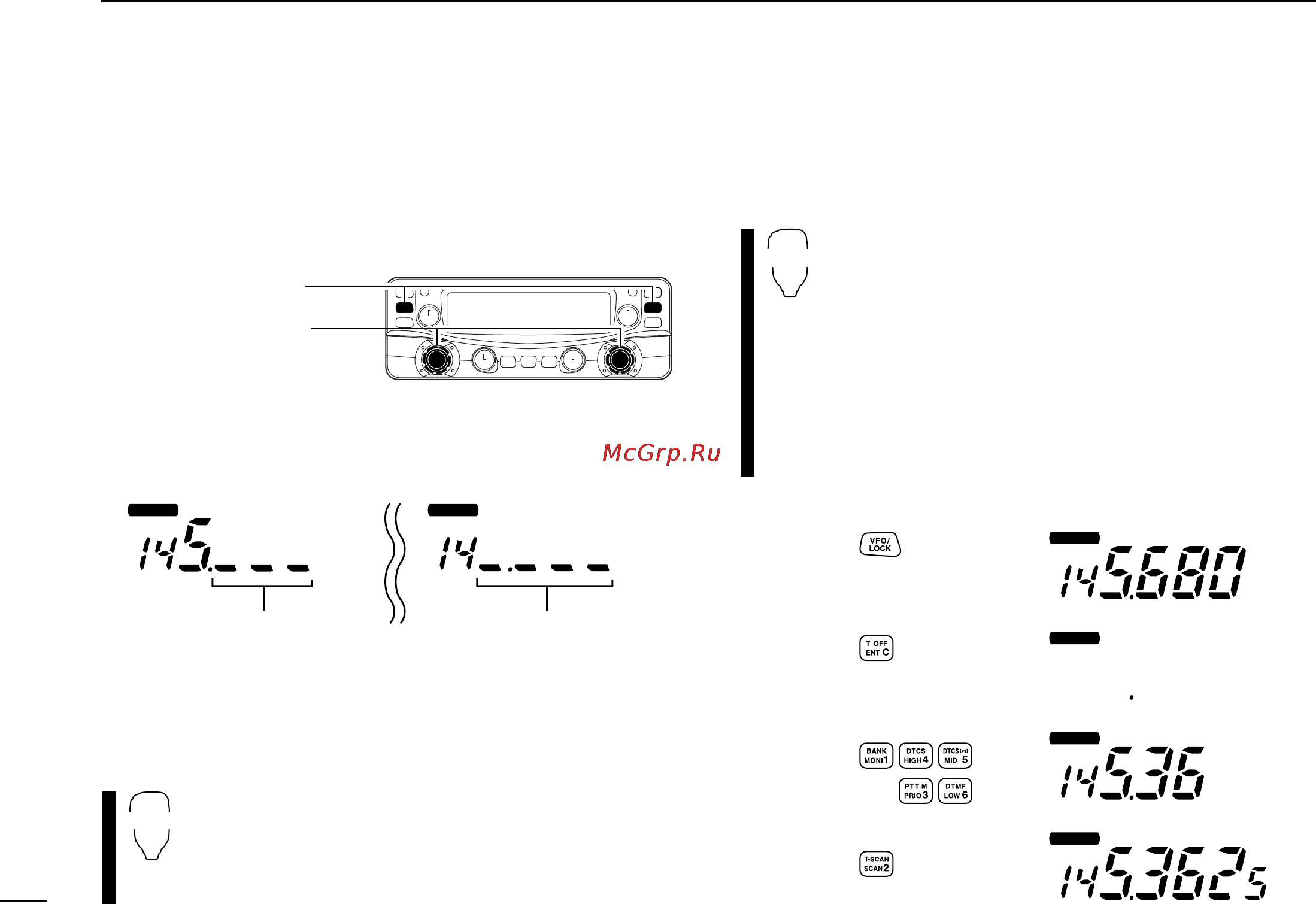

[EXAMPLE]: Setting frequency to 145.3625 MHz.
ENT
C
YZ
MAIN
T X
MAIN
T X
M
M
While 1 MHz tuning step is
selected, the digit below
100 kHz disappear.
While 10 MHz tuning step
is selected, the digit below
1 MHz disappear.
Push [V/MHz•SCAN]
Rotate the tuning dial
IC-2720H_2.qxd 03.5.13 9:45 Page 13 (1,1)
