5
MEMORY OPERATION
34
New2001
5
■ Memory clearing
Contents of programmed memories can be cleared (blanked),
if desired.
q Push [V/MHz•SCAN] to select VFO mode in the desired
band (left or right).
w Push the same band’s [M/CALL•MW] for 1 sec.
•“!” indicator and the memory channel number blink.
e Rotate the same band’s [DIAL] to select the memory chan-
nel to be cleared.
• Memory channels not yet programmed are blank.
r Push the same band’s [M/CALL•MW] momentarily, then
push the [M/CALL•MW] again for 1 sec.
☞ This operation must be performed within 1.5 sec.
• 3 beeps sound, then the frequency is cleared.
•“!” indicator and the channel number blink continuously.
• When clearing the call channel, the current VFO conditions are
re-programmed into the call channel automatically.
t Push the same band’s [MAIN•BAND] or [V/MHz•SCAN], to
return to VFO mode.
☞NOTE: Be careful!— the contents of cleared memories
CANNOT be recalled.

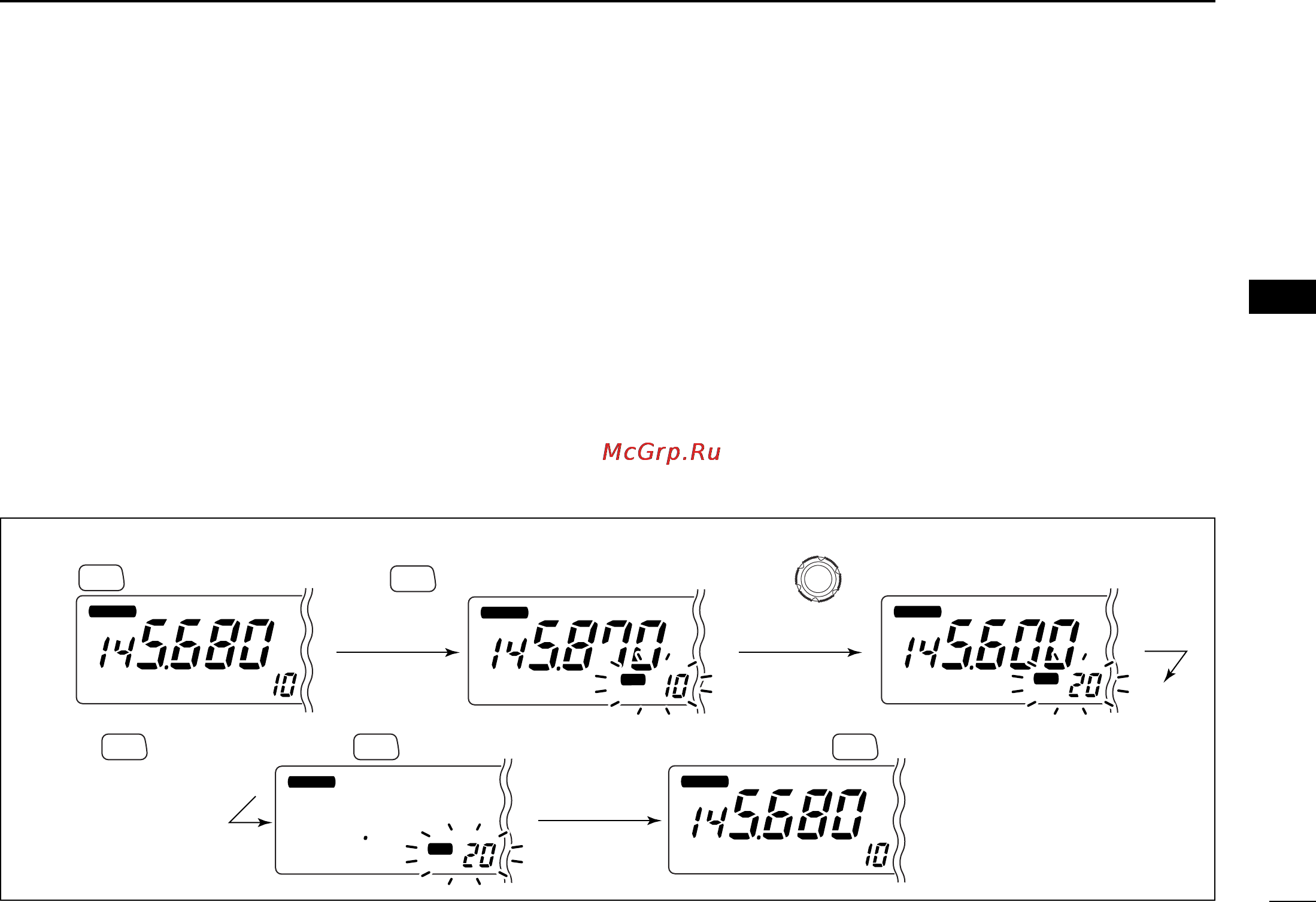

[EXAMPLE]: Clearing memory channel 20.
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
Push to select VFO. Rotate for selecting memory channel.Push for 1 sec.
Push any switch, except .Push momentarily, then push again for 1 sec.
Beep
Beep
Beep
“
“
“
“
“
MW
M/CALL
MW
M/CALL
MW
M/CALL
MW
M/CALL
SCAN
V/MHz
IC-2720H_2.qxd 03.5.13 9:45 Page 34 (1,1)
