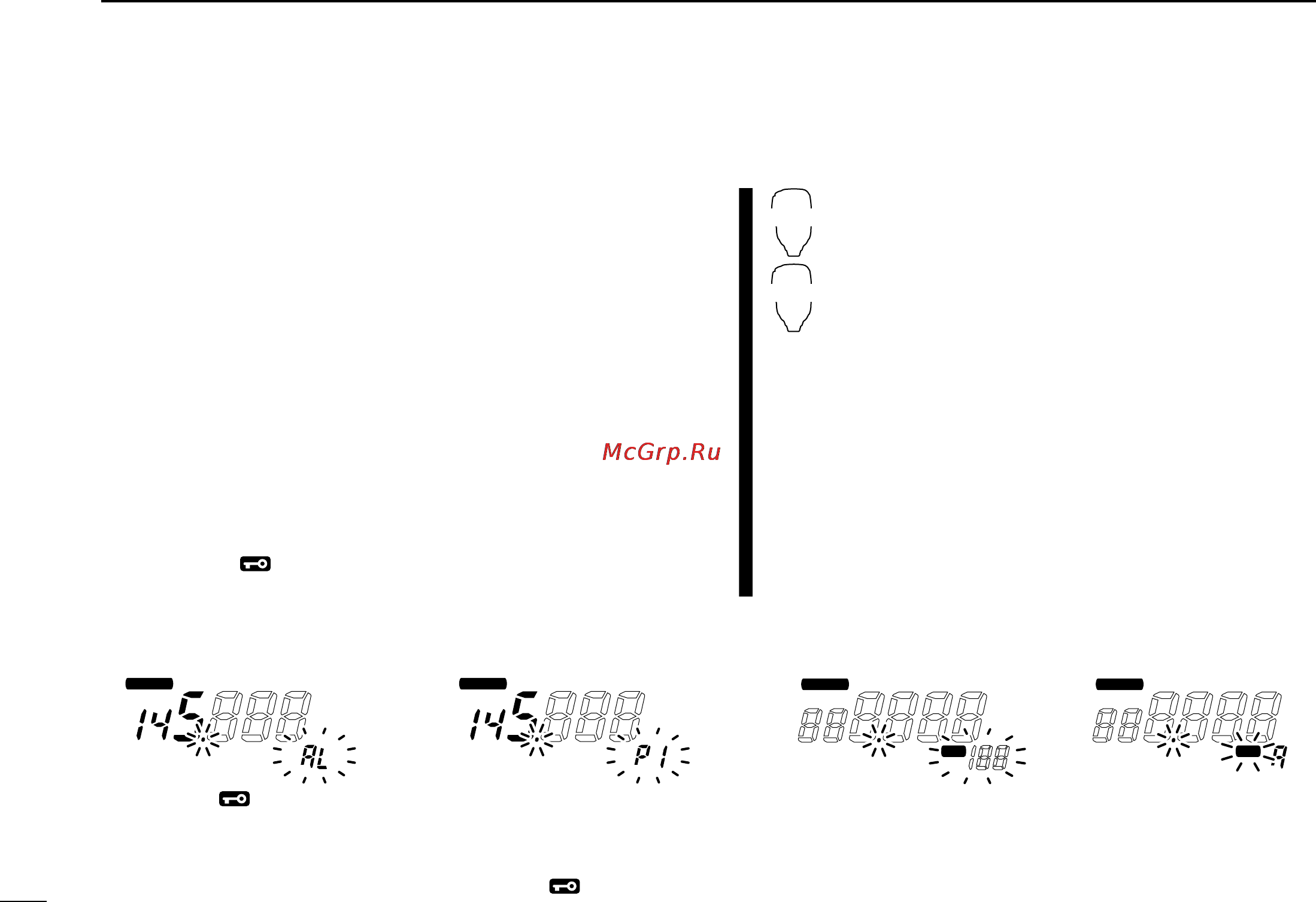

![Icom IC-2720H [58/96] I scan start stop](/views2/1074425/page58/bg3a.png)
41
7 SCAN OPERATION
New2001
■ Scan start/stop
D Preparation
Scan resume condition (p. 45); program the scan edges
(pgs. 42, 43); program 2 or more memory channels (pgs. 30,
31); set skip settings, if desired (p. 44).
D Operation
q Select VFO mode for full/programmed scan with
[V/MHz•SCAN]; or memory mode for memory scan with
[M/CALL•MW] in the desired band.
• Select the desired bank with the same band’s [MAIN•BAND] for
bank scan.
w Set the squelch to the point where noise is just muted.
e Push the [V/MHz•SCAN] for 1 sec. to start the scan.
• To change the scanning direction, rotate the same band’s [DIAL].
• The memory channel readout blinks the scan type as follows:
r Push
[SET• ]
to switch full and programmed scan (P1,
P2, P3, P4 and P5), if VFO is selected in step q.
t To stop the scan, push the [V/MHz•SCAN].
z Push [VFO/LOCK] to select VFO mode for
full/programmed scan; push [MR/CALL] to select
memory mode for memory scan, in the main
band.
• Push [FUNC] then [
MONI
1(BANK)] to select a bank
for bank scan.
x Push [
SQL
Y D(MUTE)] or [
SQL
Z #(16KEY-L)] to
set the squelch to the point where noise is just
muted.
c Push [
SCAN
2(T-SCAN)] to start the scan.
• Push [Y] or [Z] for 1 sec. also starts the scan.
v Push [
SET
B(D-OFF)] to switch full and pro-
grammed scan (P1, P2, P3, P4 and P5), if VFO
is selected in step z.
b To stop the scan push [
SCAN
2(T-SCAN)] or
[
CLR
A(MW)].
SCAN
2
SET
B
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
• During full scan • During programmed scan • During memory scan • During bank scan
Indicates scan edge channels.
• P1 stands for 1A/1b
• P1 to P5 are available when they
are programmed, and switches
with [SET• ].
Indicates bank initial.Push [SET• ] to select “AL”
(full) or programmed scan (P1,
P2, P3, P4 and P5) in
sequence.
