36
5
MEMORY OPERATION
New2001
5
■ Memory bank setting
q Push the desired band’s [M/CALL•MW] several times to
select memory mode, then select the desired memory
channel via the same band’s [DIAL].
w Push the same band’s [MAIN•BAND] for 1 sec.

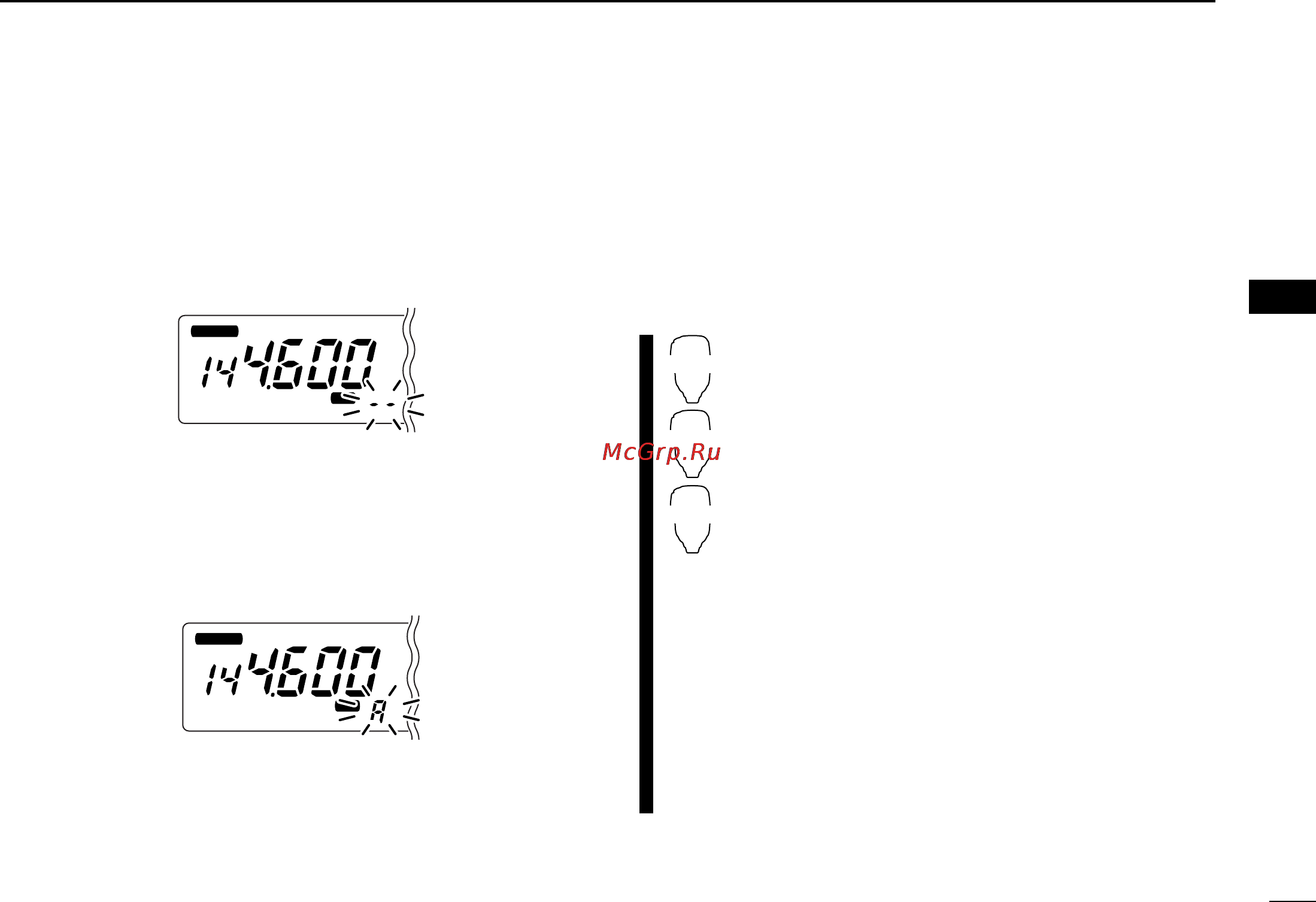

•“– –” indication blinks as follows.
e Push the [MAIN•BAND] again to set the channel to bank
setting stand-by condition.
•“– –” indication blinking stops.
r Push the [M/CALL•MW] for 1 sec. then rotate the [DIAL] to
select the desired bank to be set.
• Bank initial blinks as follows.
t Push the [M/CALL•MW] again to set the channel into the
bank.
•“!” and bank initial blinking stops.
y Push the [MAIN•BAND] for 1 sec. then push the
[MAIN•BAND] momentarily again to return to regular mem-
ory condition.
u Repeat steps q to y to set another memory channel into
the same or another bank.
z Push [MR/CALL] then select the desired mem-
ory channel via [Y]/[Z] or keypad.
• Push [BAND] to select the desired band (left or
right) as the main band, in advance.
x Push [FUNC] then [
MONI
1(BANK)].
•“– –” indication blinks.
c Push [
CLR
A(MW)] to set the channel to bank
setting stand-by condition.
•“– –” indication stops blinking.
v Push [FUNC] then [
CLR
A(MW)] then push
[Y]/[Z] to select the desired bank to be set.
• Bank initial blinks.
b Push [
CLR
A(MW)] to set the channel into the
bank.
•“!” and bank initial stops blinking.
n
Push [FUNC], [
MONI
1(BANK)] then [
CLR
A(MW)]
to return to regular memory channel condition.
m Repeat steps z to n to set an another memory
channel into the same or another bank.
BANK
[Y]/[Z]
MW
MAIN
T X
M
MAIN
T X
M
