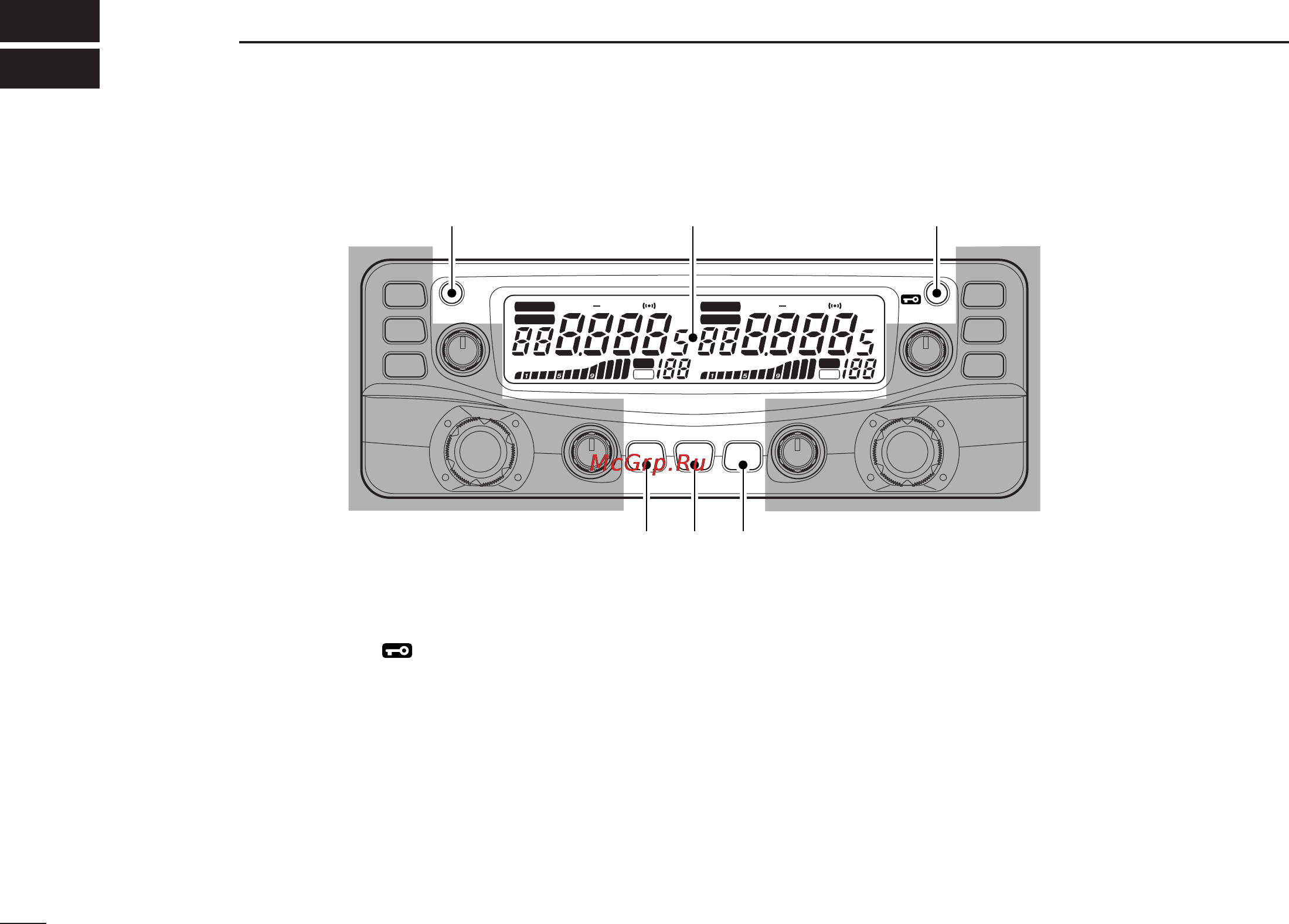

■ Front panel— controller
qPOWER SWITCH [PWR]
Turns power ON and OFF when pushed for 1 sec.
wSET•LOCK SWITCH [SET• ]
➥ Enters set mode when pushed. (p. 56)
➥ Switches the lock function ON and OFF when pushed
for 1 sec. (p. 15)
eOUTPUT POWER•PRIORITY SWITCH [LOW•PRIO]
➥ Each push changes the output power selection. (p. 20)
➥ Starts priority watch when pushed for 1 sec. (p. 47)
rTONE•DTMF SWITCH [TONE•DTMF]
➥ Each push selects a tone function. (pgs. 23, 52)
• Subaudible tone encoder, pocket beep (CTCSS), tone
squelch, pocket beep (DTCS), DTCS squelch or tone func-
tion OFF can be selected.
➥ Turns DTMF memory encoder ON and OFF when
pushed for 1 sec. (p. 48)
tDUPLEX•MONITOR SWITCH [DUP•MONI]
➥ Push to select DUP–, DUP+ and simplex operation.
(p. 23)
➥ Push for 1 sec. to switch the monitor function ON and
OFF. (p. 16)
MAIN
BAND
SCAN
MW
V/MHz
M/CALL
MAIN
BAND
SCAN
V/MHz
MW
M/CALL
VOLVOL
DIALDIAL
SQLSQL
DUP
MONI
TONE
DTMF
LOW
PRIO
DUAL BAND
FM TRANSCEIVER
i2720
PWR
SET
BUSY
LOWMID
BUSY
LOWMID
MAIN
T X
DUP
T SQL
DTCS
AM
MAIN
T X
DUP
T
SQL
DTCS
AM
M
SKIP
M
SKIP
q
Function display (pgs. 3, 4)
w
ert
1
PANEL DESCRIPTION
New2001
1
*The switches w to t are
for the MAIN band only.
