1 PANEL DESCRIPTION
New2001

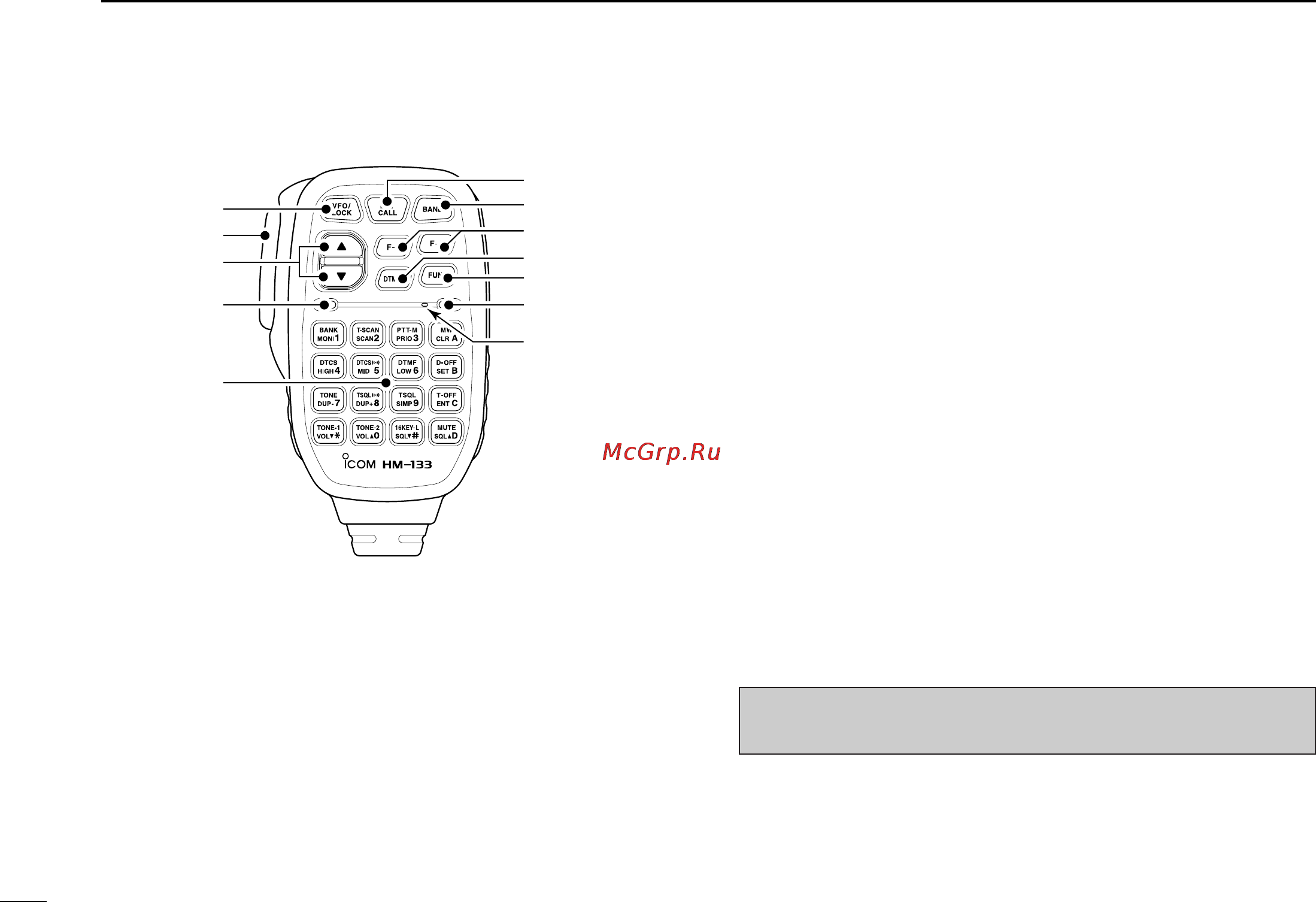

■ Microphone (HM-133*)
qVFO/LOCK SWITCH [VFO/LOCK]
➥ Push to select VFO mode. (p. 12)
➥ Push for 1 sec. to switch the lock function ON and OFF.
(p. 15)
wPTT SWITCH
➥ Push and hold to transmit; release to receive.
➥ Switches between transmitting and receiving while the
one-touch PTT function is in use. (p. 21)
eUP/DOWN SWITCHES [Y]/[Z]
➥ Push either switch to change operating frequency,
memory channel, set mode setting, etc.
(pgs. 13, 29, 56)
➥ Push either switch for 1 sec. to start scanning. (p. 41)
rACTIVITY INDICATOR
➥ Lights red while any key, except [FUNC] and [DTMF-S],
is pushed, or while transmitting.
➥ Lights green while the one-touch PTT function is in use.
tKEYPAD (pgs. 8, 9)
yFUNCTION INDICATOR
➥ Lights orange while [FUNC] is activated—indicates the
secondary function of switches can be accessed.
➥ Lights green when [DTMF-S] is activated—DTMF sig-
nals can be transmitted with the keypad.
u2nd FUNCTION SWITCH [FUNC]
iDTMF SELECT SWITCH [DTMF-S] (p. 50)
oFUNCTION SWITCHES [F-1]/[F-2] (p. 66)
Program and recall your desired transceiver conditions.
!0BAND SWITCH [BAND] (p. 11)
Push to switches main band between left and right bands.
!1MEMORY/CALL SWITCH [MR/CALL]
➥ Push to select memory mode. (p. 12)
➥ Push for 1 sec. to select call channel. (p. 38)
✔
Important!
All keys on the microphone function for the main band only.
Mic element
q
e
r
t
w
y
u
i
o
!0
!1
*
A different microphone
may be supplied de-
pending on version.
