43
7 SCAN OPERATION
New2001
D Programming scan edges via microphone
z Set the desired frequency in VFO mode.
➥ Push [VFO/LOCK] to select VFO mode.
➥ Set the frequency via the keypad or [Y]/[Z].
x Push [FUNC] then [
CLR
A(MW)] momentarily.
c Push [Y] or [Z] to select scan edge channels,
1A, 2A, 3A, 4A or 5A.
v Push [FUNC], then push [
CLR
A(MW)] for 1 sec.
to program.
• 3 beeps sound and VFO is automatically selected.
• Memory channel number advances to the next scan
edge channel, 1b, 2b, 3b, 4b or 5b when continuing to
push [
CLR
A(MW)] after programming.
b To program a frequency for the other scan edge channels,
repeat steps z to v.
MW

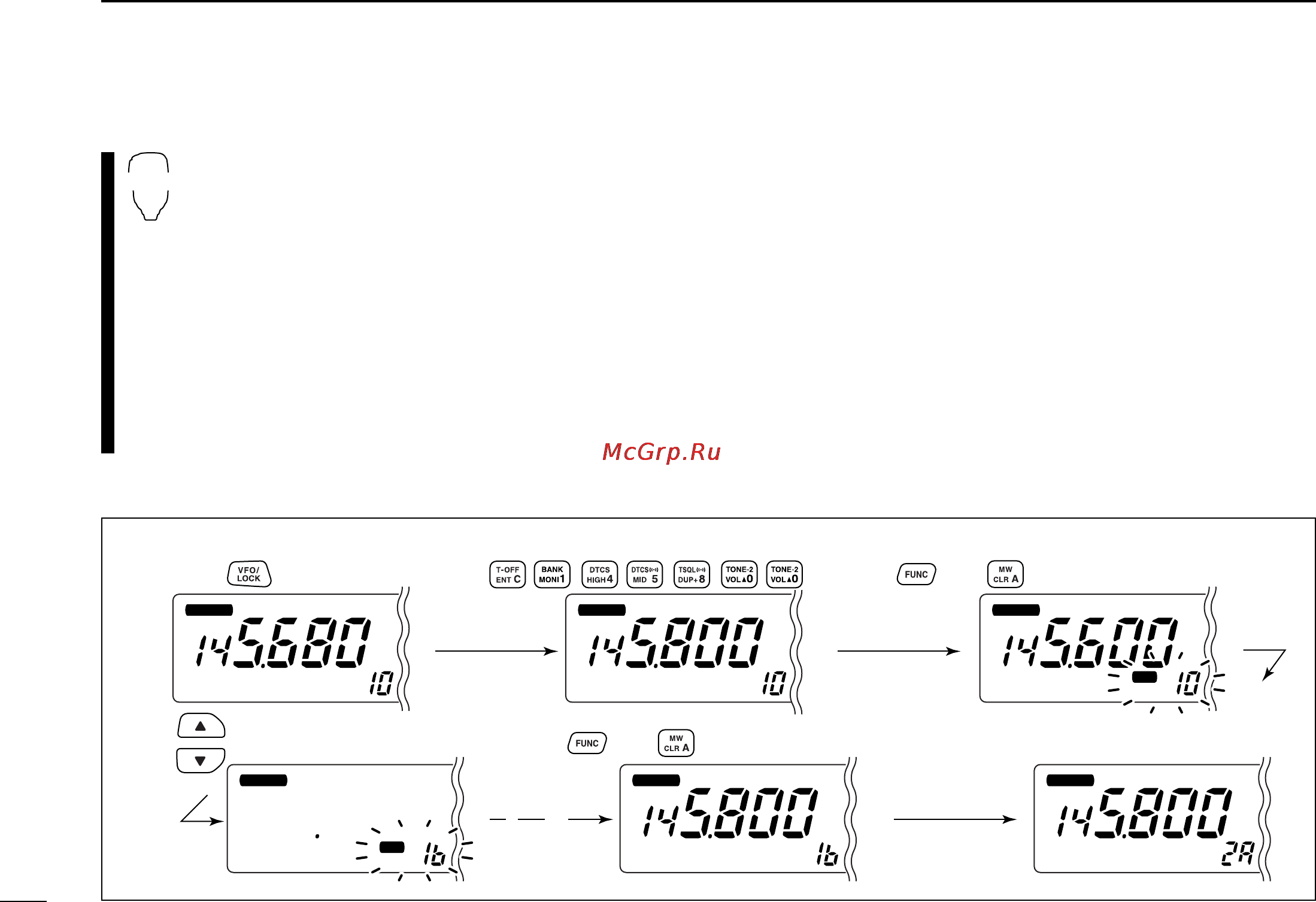

[EXAMPLE]: Programming 145.800 MHz into scan edge 1b.
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
Push
Push
Push then momentarily
Push
Push then for 1 sec. and continue to push
➠
Beep
“
Beep
Beep
Beep
“
“
“
“
“
IC-2720H_2.qxd 03.5.13 9:45 Page 43 (1,1)
