3
1 PANEL DESCRIPTION
New2001

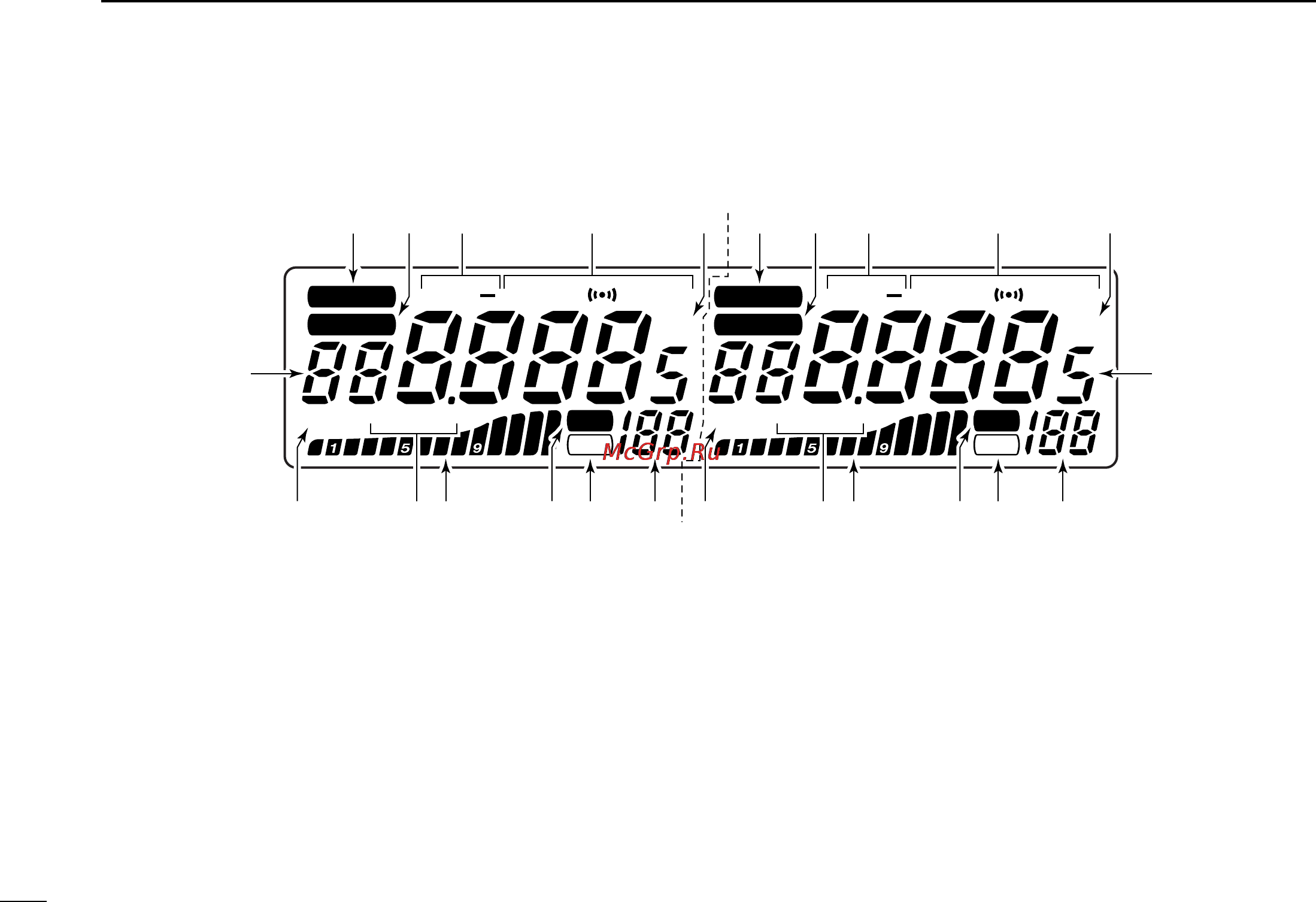

■ Function display
qMAIN INDICATOR (p. 11)
Indicate the main band for transmit and function control.
wTRANSMIT INDICATOR
➥ Appears while transmitting. (p. 20)
➥ Blinks while transmitting with the one-touch PTT func-
tion. (p. 21)
eDUPLEX INDICATORS (p. 23)
“DUP” appears when plus duplex, “DUP –” appears when
minus duplex (repeater) operation is selected.
rTONE INDICATORS
➥ “T” appears while the subaudible tone encoder is in use.
(p. 23)
➥ “T SQL” appears while the tone squelch function is in
use. (p. 52)
➥ “DTCS” appears while the DTCS squelch function is in
use. (p. 52)
➥ “S” appears with the “T SQL” or “DTCS” indicator
while the pocket beep function
(with CTCSS or DTCS) is in
use. (p. 52)
BUSY
LOWMID
BUSY
LOWMID
MAIN
T X
DUP
T SQL
DTCS
AM
MAIN
T X
DUP
T
SQL
DTCS
AM
M
SKIP
M
SKIP
qwe r t
y
uio!0!1!2
y
qwe r t
uio!0!1!2
Left band Right band
*The same indications for both the left and right bands are arranged.
IC-2720H_2.qxd 03.5.13 9:45 Page 3 (1,1)
