5 MEMORY OPERATION
33
New2001
D Memory/call➪call/memory
q Select the memory/call channel to be transferred.
➥ Push the desired band’s [M/CALL•MW] several times to
select memory mode or call channel, then rotate the
same band’s [DIAL] to select the desired memory or call
channel.
w Push the same band’s [M/CALL•MW] for 1 sec.
•“!” indicator and “– –” indication blink, and shows VFO condi-
tions.
e Rotate the [DIAL] to select the target memory channel.
•“C1” or “C2” blinks when the call channel is selected.
• Scan edge channels, 1A/1b, 2A/2b, 3A/3b, 4A/4B, 5A/5b can
also be selected.
r Push the [M/CALL•MW] for 1 sec. to transfer the selected
memory/call channel contents to the target memory.
• The targeted memory and transferred contents are indicated.
z Select the memory/call channel to be trans-
ferred.
➥ Push [MR/CALL] to select memory mode,
then select the desired memory channel
via [Y]/[Z] or keypad.
➥ Push [MR/CALL] for 1 sec. then push
[Y]/[Z] to select the desired call channel.
x Push [FUNC], then [
CLR
A(MW)] momentarily.
•“!” indicator and “– –” indication blink, and
shows VFO conditions.
c Push [Y]/[Z] to select the target memory
channel.
•
“C1” or “C2” blinks when the call channel is selected.
• Scan edge channels can also be selected.
• The keypad cannot be used for the selection.
v Push [FUNC] then push [
CLR
A(MW)] for
1 sec. to transfer the selected memory/call
channel contents to the target memory.
• The targeted memory and transferred contents
are indicated.
MR/CALL
MW
[Y]/[Z]

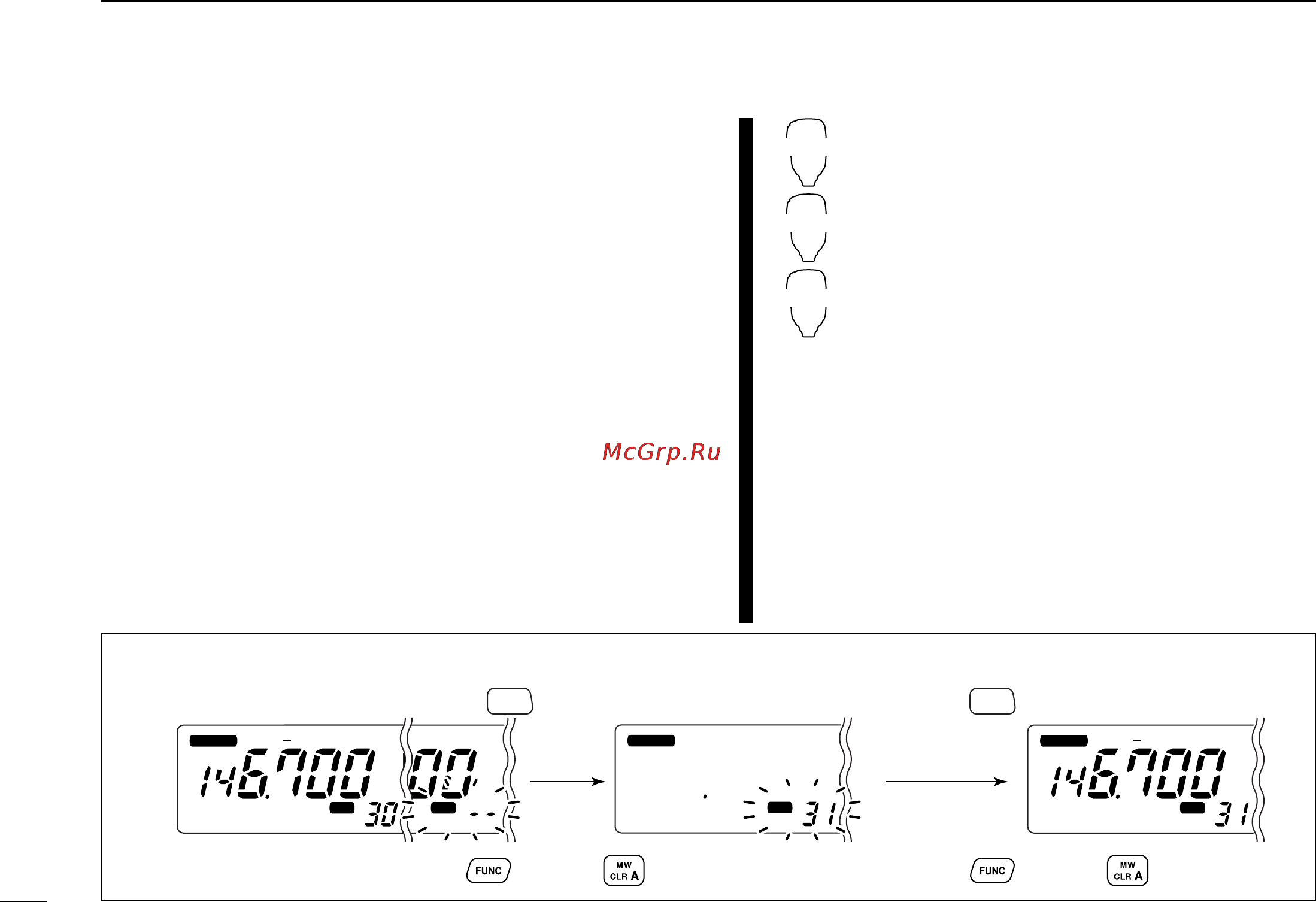

[EXAMPLE]: Transferring memory channel 30 contents to channel 31.
MAIN
T X
DUP
T
M
MAIN
T X
M
MAIN
T X
DUP
T
M
MAIN
T X
DUP
T
M
Select the target channel. Push for 1 sec.
Push then push for 1 sec.
Select the memory channel, then push for 1sec.
Select the memory channel, push then push .
Front panel operation:
HM-133 operation:
MW
M/CALL
MW
M/CALL
IC-2720H_2.qxd 03.5.13 9:45 Page 33 (1,1)
