28
4
REPEATER OPERATION
New2001
4
■ Auto repeater
(U.S.A. version only)
The USA version automatically activates the repeater settings
(DUP– or DUP+ and tone encoder ON/OFF) when the operating
frequency falls within the general repeater output frequency
range and deactivate them when outside of the range.

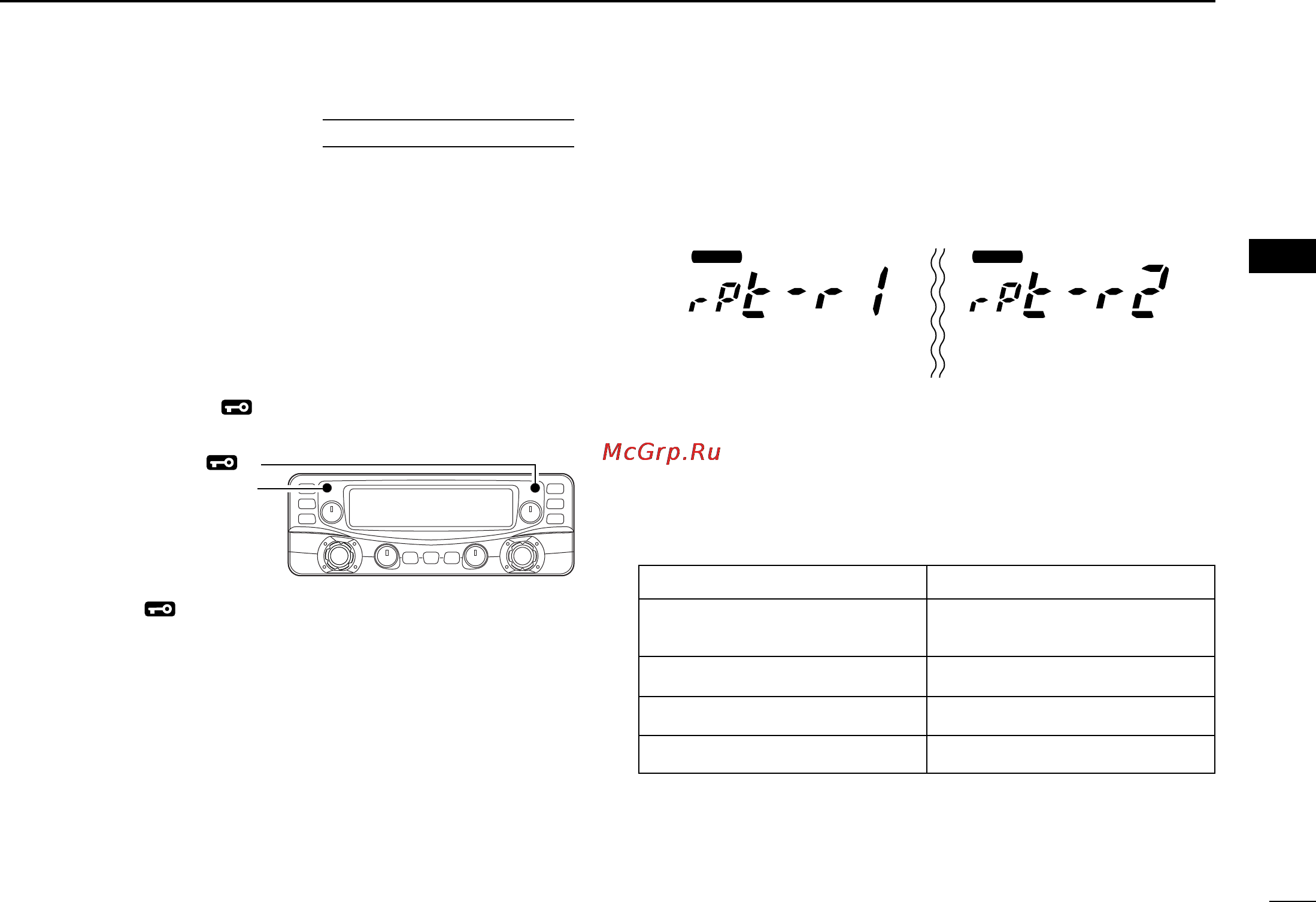

D Setting the auto repeater function ON/OFF
q Push [PWR] to turn power OFF.
w
While pushing [SET• ], turn power ON to enter initial set
mode.
e Push [SET• ] or [LOW•PRIO] several times until the
“rPt” display appears as shown above right.
r Rotate left band’s [DIAL] to select the auto repeater func-
tion from “r1,” “r2” or OFF.
•“r1”: auto repeater is ON, tone encoder is OFF.
•“r2”: auto repeater is ON, tone encoder is ON.
t Push [PWR] to exit initial set mode.
D Frequency range and offset direction
MAIN
T X
DUP
M
MAIN
T X
DUP
T
M
Auto DUP set: ON
Auto tone set: OFF
Auto DUP set: ON
Auto tone set: ON
While pushing [SET• ]
push [PWR] to enter initial
set mode
USING
INITIAL SET MODE
Frequency range Duplex direction
145.200–145.495 MHz
“DUP–” appears
146.610–146.995 MHz
147.000–147.395 MHz “DUP” appears
442.000–444.995 MHz “DUP” appears
447.000–449.995 MHz “DUP–” appears
IC-2720H_2.qxd 03.5.13 9:45 Page 28 (1,1)
