27
4 REPEATER OPERATION
New2001

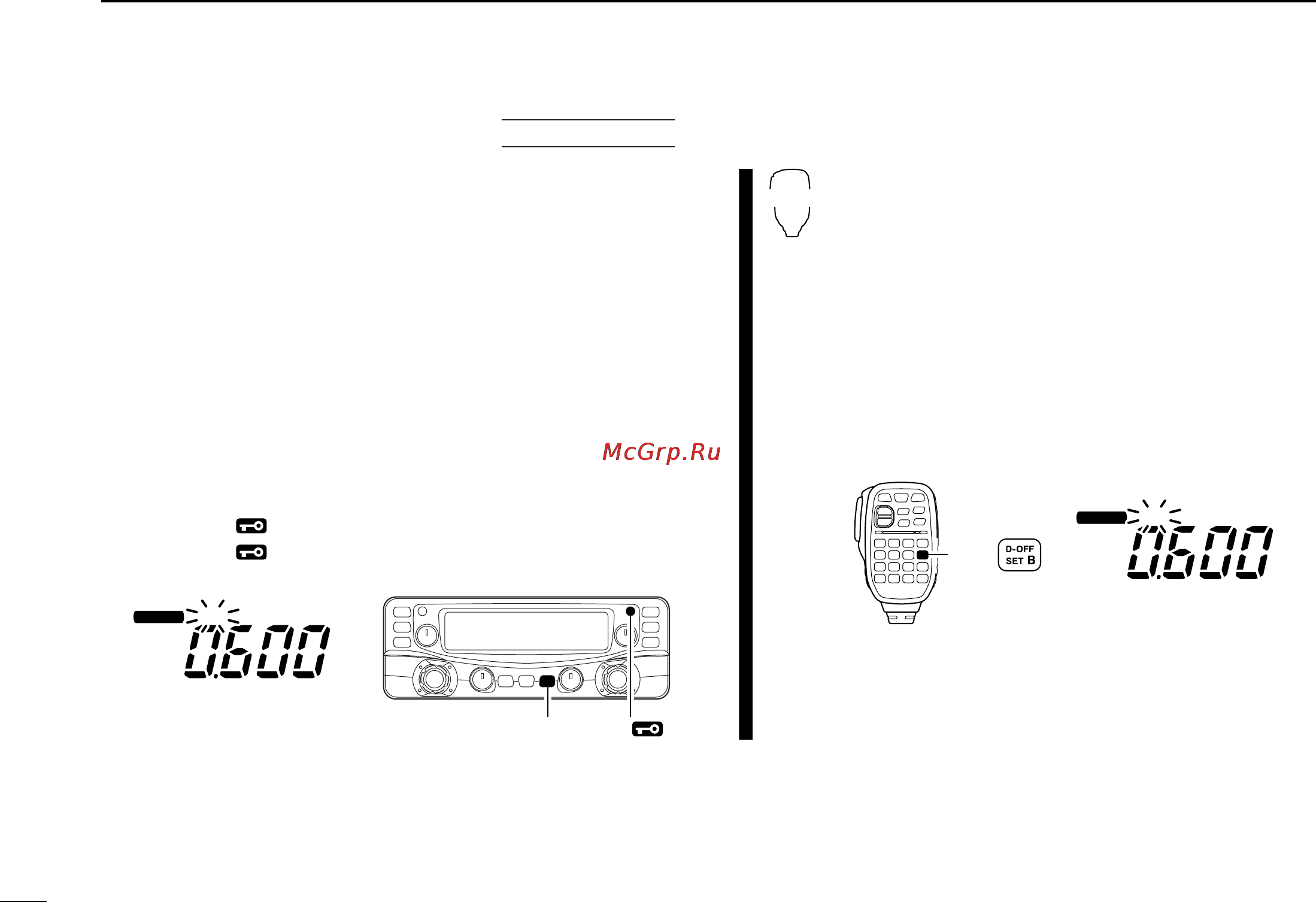

■ Offset frequency
When communicating through a repeater, the transmit fre-
quency is shifted from the receive frequency by an amount
determined by the offset frequency.
Independent offset frequencies can be set for each operating
frequency.
qPush [MAIN•BAND] to select the desired band (left or right)
as the main band.
• Push [MAIN•BAND] for 1 sec. then rotate the [DIAL] to select the
desired frequency band if necessary.
wSelect the desired mode/channel you wish to set the offset
frequency to, such as VFO mode or memory/call channel.
• The offset frequency can be independently programmed into
each mode or channel.
ePush [SET• ] to enter set mode.
rPush [SET• ] or [LOW•PRIO] until “DUP” and offset fre-
quency appear.
t
Rotate the main band’s [DIAL] to set the desired offset fre-
quency.
yPush [TONE•DTMF] to exit set mode.
z Push [BAND] to select the desired band (left or
right) as the main band.
• Enter the desired frequency via the keypad if neces-
sary.
x Select the desired mode/channel you wish to
set the offset frequency to, such as VFO mode
or memory/call channel.
• The offset frequency can be independently pro-
grammed into each mode or channel.
c
Push [
SET
B(D-OFF)] to enter set mode.
v
Push [
SET
B(D-OFF)] or [
ENT
C(T-OFF)] until
“DUP” and offset frequency appear.
b Push [Y] or [Z] to set the desired
offset.
• Direct frequency entry from the keypad is not possi-
ble.
n Push [
CLR
A(MW)] to exit set mode.
☞NOTE: The offset frequency can be set in a memory/call
channel temporarily. However, the set frequency is cleared
once another memory channel or VFO mode is selected.
To store the offset frequency permanently, overwrite the
channel information.
MAIN
T X
DUP
M
Push
SET
B
MAIN
T X
DUP
M
[SET• ] [LOW•PRIO]
“DUP” and offset frequency appear
USING
SET MODE
IC-2720H_2.qxd 03.5.13 9:45 Page 27 (1,1)
