39
6 CALL CHANNEL OPERATION
New2001
■ Programming a call channel
Operating frequency, duplex information, subaudible tone in-
formation (tone encoder or tone squelch ON/OFF and its fre-
quency) can be programmed into the call channel.
q Set the desired frequency in VFO mode.
➥ Push the desired band’s [V/MHz•SCAN] to select VFO
mode.
➥ Set the frequency using the same band’s [DIAL].
➥ Set other data as desired.
w Push the same band’s [M/CALL•MW] for 1 sec.
e Rotate the [DIAL] to select the desired call channel.
•“!” indicator and “C1” or “C2” blink.
r Push the [M/CALL•MW] for 1 sec. to program.
• 3 beeps sound and the unit returns to VFO mode automatically.
z Set the desired frequency in VFO mode.
➥ Push [VFO/LOCK] to select VFO mode.
➥ Set the frequency.
➥ Set other data as desired.
x
Push [FUNC], then [
CLR
A(MW)] momentarily.
c Select the call channel via [Y] or [Z] .
v Push [FUNC] then [
CLR
A(MW)] for 1 sec. to
program.
• 3 beeps sound and the unit returns to VFO mode
automatically.
MR/CALL
MW
[Y]/[Z]

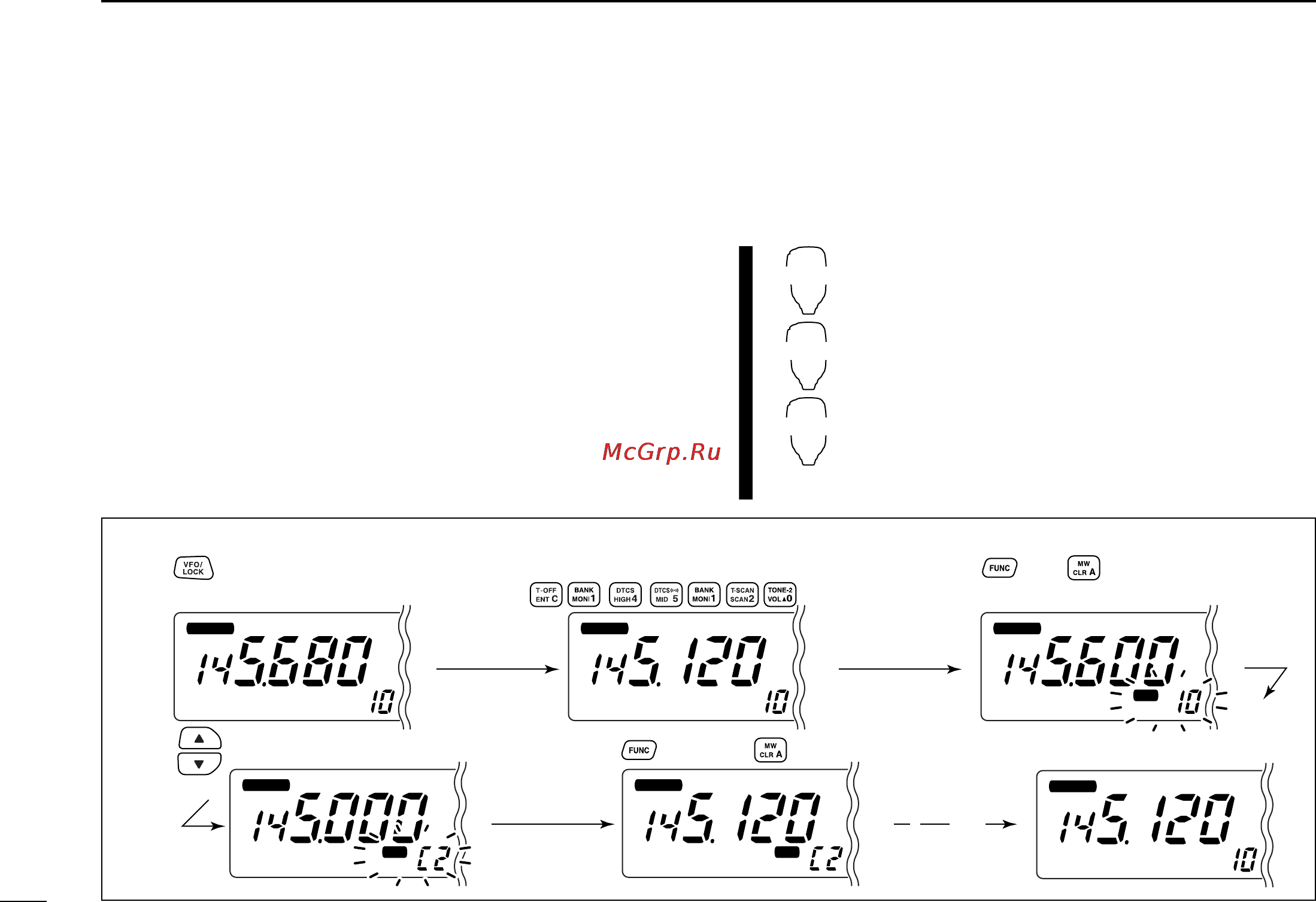

[EXAMPLE]: Programming 145.120 MHz into the call channel 2 via the microphone.
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
Set the frequency.
Push to select VFO mode.
Push , then .
Push , then push for 1 sec.
➠
Push until large “C” appears.
Beep
Beep
Beep
“
“
“
“
“
IC-2720H_2.qxd 03.5.13 9:45 Page 39 (1,1)
