42
7
SCAN OPERATION
New2001
7
■ Scan edges programming
Scan edges can be programmed in the same manner as
memory channels. Scan edges are programmed into scan
edges, 1A/1b to 5A/5b, in memory channels.
q Set the edge frequency of the desired frequency range in
VFO mode:
➥ Set the frequency using the desired band’s [DIAL].
➥ Set other data (e.g. repeater settings, etc.) if desired.
w Push the same band’s [M/CALL•MW] for 1 sec.
•“M” indicator and channel number blink.
e Rotate the [DIAL] to select one of scan edge channel, 1A,
2A, 3A, 4A or 5A.
r Push the [M/CALL•MW] for 1 sec. to program.
• 3 beeps sound and VFO is automatically selected.
• Scan edge 1b, 2b, 3b, 4b or 5b is automatically selected when
continuing to push the [M/CALL•MW] after programming.
t To program a frequency for the other pair of scan edges,
1b, 2b, 3b, 4b or 5b, repeat steps q and r.
• If the same frequency is programmed into a pair of scan edges,
programmed scan will not function.

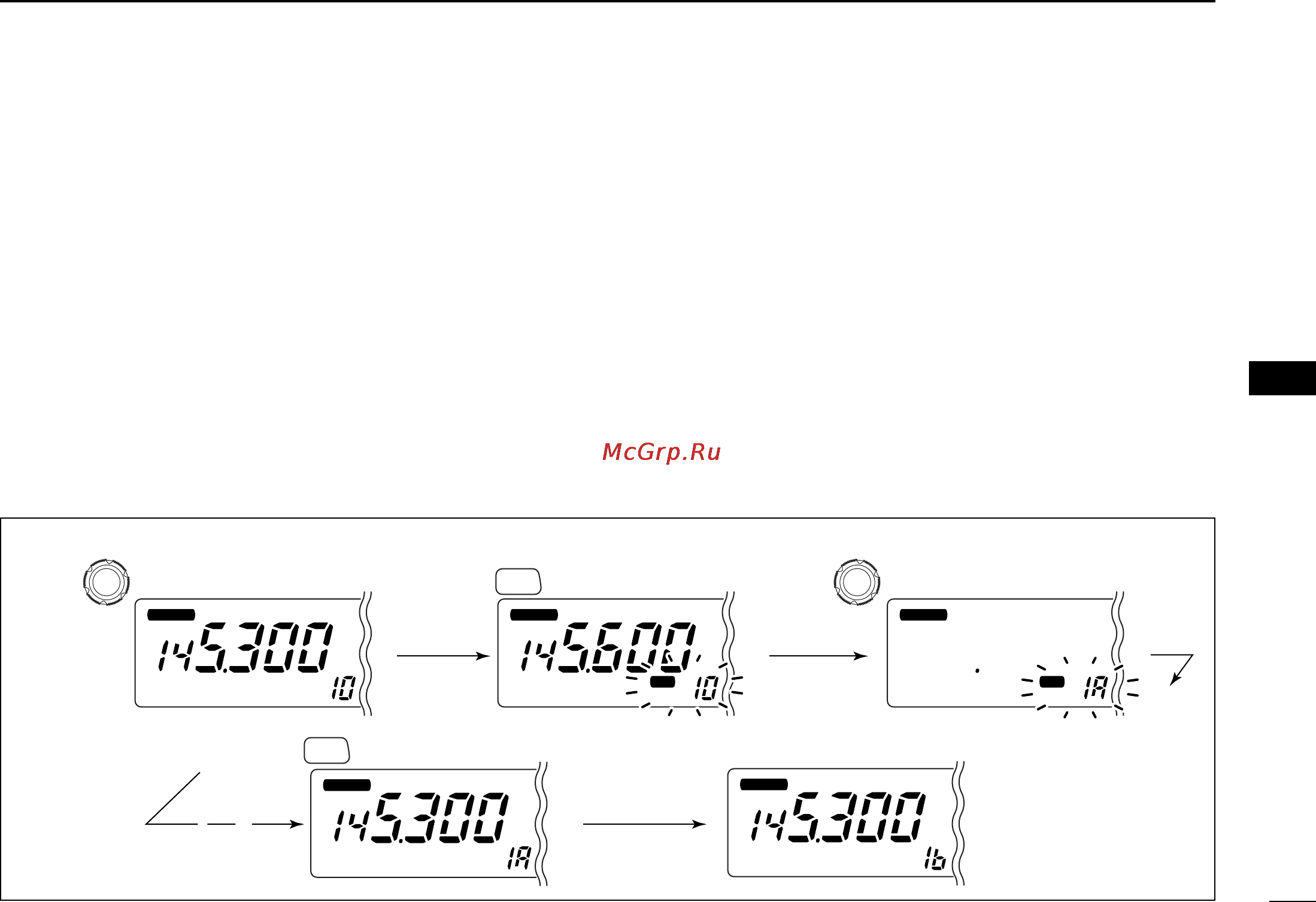

[EXAMPLE]: Programming 145.300 MHz into scan edges 1A.
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
Push for 1 sec.Rotate for setting frequency, etc. Rotate
Push for 1 sec. and continue to push
➠
Beep
Beep
Beep
“
Beep
“
“
“
“
“
MW
M/CALL
MW
M/CALL
