SCAN OPERATION
New2001
7
■ Skip channel setting
The memory skip function speeds up scanning by checking
only those memory channels not set as skip channels. Set
skip channels as follows.
q Select a memory channel in the desired band:
➥ Push the desired band’s [M/CALL•MW] to select mem-
ory mode.
➥ Rotate the same band’s [DIAL] to select the desired
channel to be a skip channel.
w Push
[SET• ]
to enter set mode.
e Push
[SET• ]
or [LOW•PRIO] several times until “CHS”
appears as shown above.
r Rotate the [DIAL] to turn the skip function ON or OFF for
the selected channel.
•“~” appears : The channel is skipped during scan.
(CHS-On)
•“~” disappears : The channel is scanned during scan.
(CHS-OF)
t Push [TONE•DTMF] to exit set mode.
z Select a memory channel.
➥ Select memory mode by pushing [MR/CALL].
➥ Push [Y] or [Z] to select the desired channel
to be a skip channel.
• Direct memory channel selection is also available.
x Push [
SET
B(D-OFF)] to enter set mode.
c Push [
SET
B(D-OFF)] or [
ENT
C(T-OFF)] several
times until “CHS” appears as shown at left.
v Push [Y] or [Z] to set or cancel the skip setting.
• See item r at left for skip indicator details.
b Push [
CLR
A(MW)] to exit set mode.
SET
B
MAIN
T X
M
SKIP

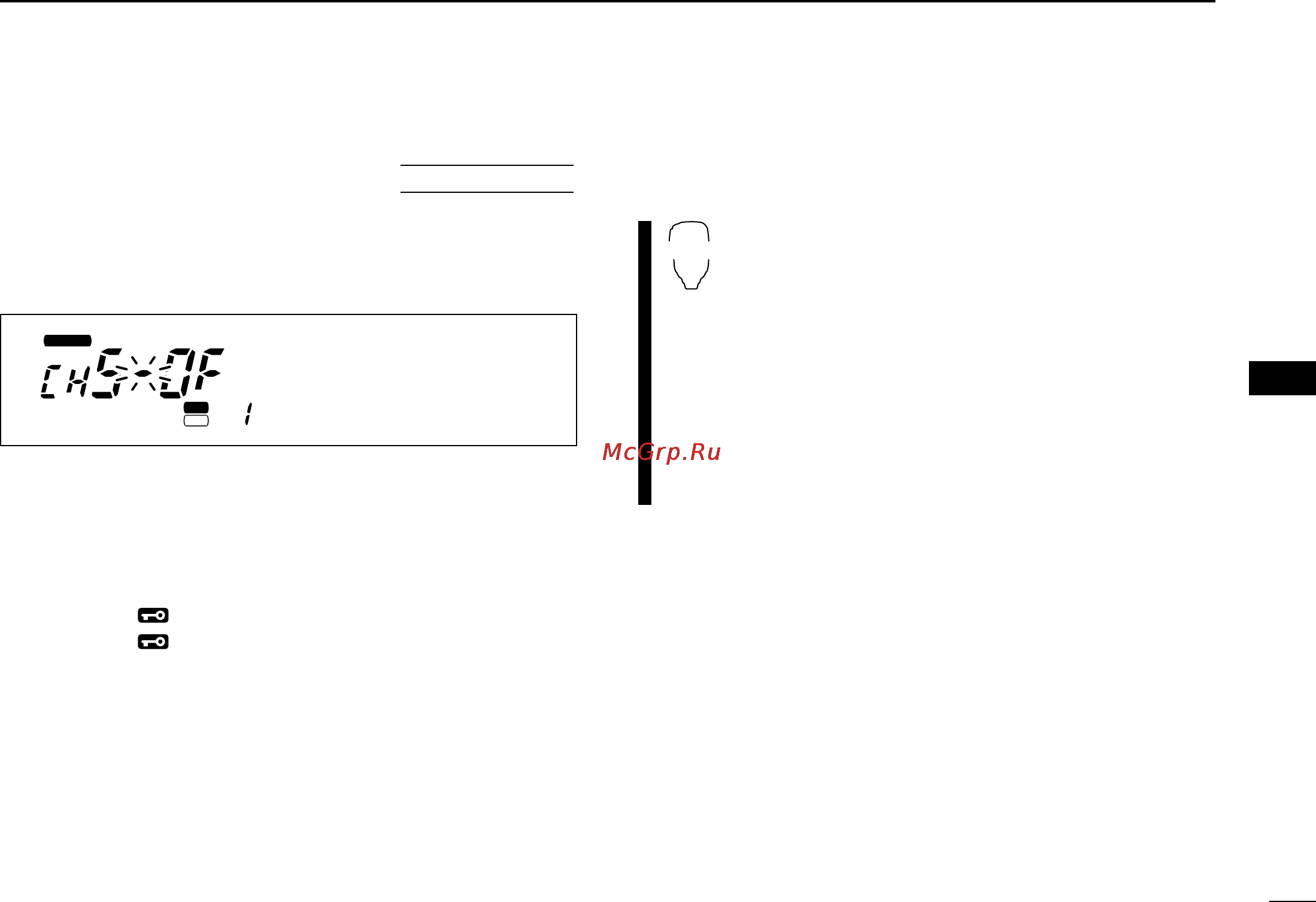

The display shows that memo-
ry channel 1 is set as a skip
channel.
USING
SET MODE
