21
3 BASIC OPERATION
New2001
■ One-touch PTT function
The PTT switch can be operated as a one-touch PTT switch
(each push toggles between transmit/receive). Using this
function you can transmit without pushing and holding the
PTT switch.
To prevent accidental, continuous transmissions with this
function, the transceiver has a time-out timer. See p. 61 for
details.
z Push [FUNC] then [
PRIO
3(PTT-M)] to turn the
one-touch PTT function ON.
• The activity indicator lights green.
x Push [PTT] to transmit and push again to re-
ceive.
• A beep sounds when transmission is started and a
long beep sounds when returning to receive.
•“$” blinks when transmitting with the one-touch
PTT function.
c Push [FUNC] then [
PRIO
3(PTT-M)] to turn the
one-touch PTT function OFF.
• The activity indicator goes out.
■ Audio mute function
This function temporarily mutes the audio without disturbing
the volume setting.
➥ Push [FUNC] then [
SQL
Y D(MUTE)] to mute
audio signals.
• The memory channel number indicator shows the
current condition and “Si” indications alternately.
• Push [
CLR
A(MW)] (or any other key) to cancel the
function.
BUSY
MAIN
T X
MAIN
T X
M
M

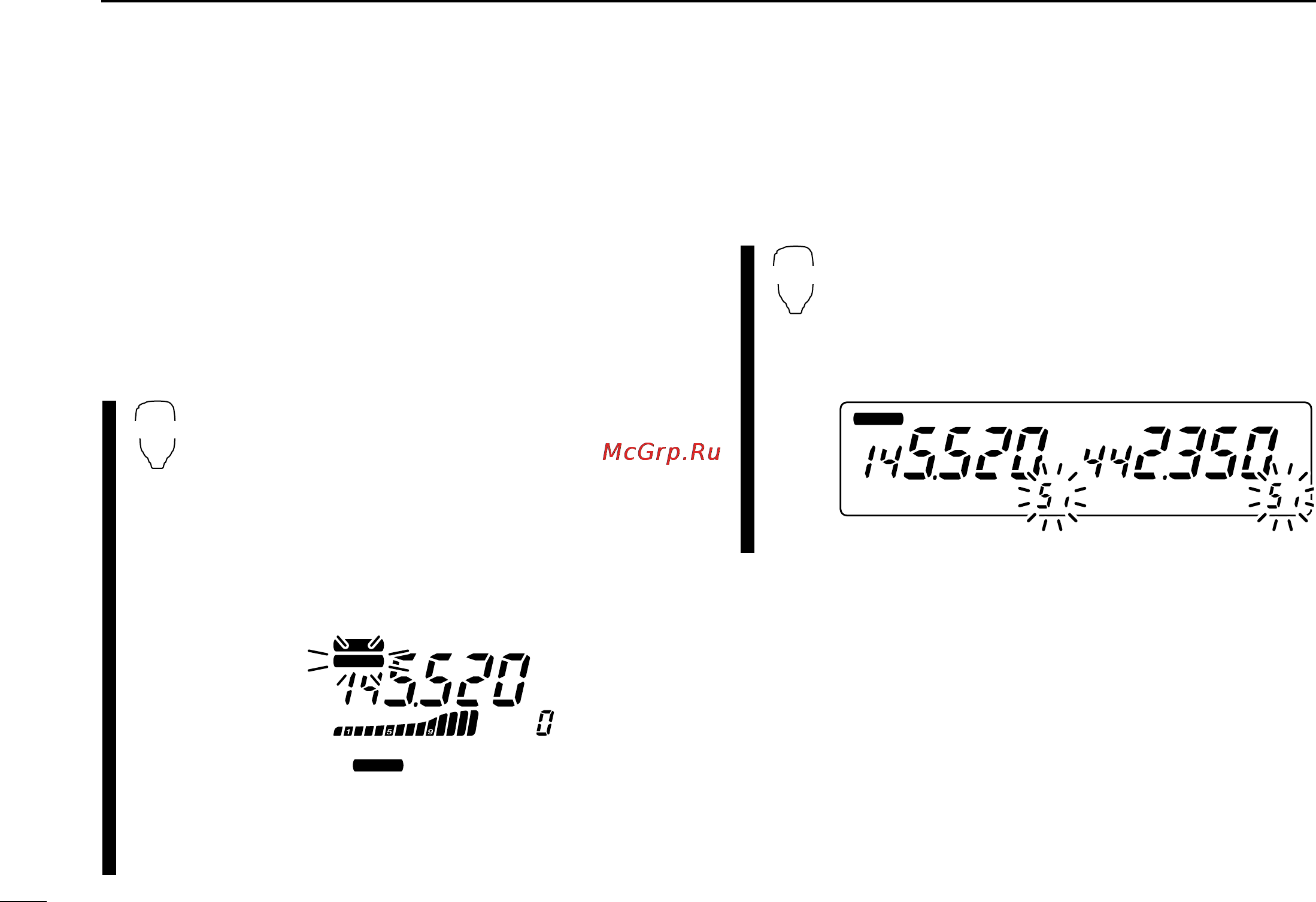

Shows the current condition and “Si” indication alternately.
MUTE
MAIN
T X
T X
M
indicator blinks
PTT-M
IC-2720H_2.qxd 03.5.13 9:45 Page 21 (1,1)
